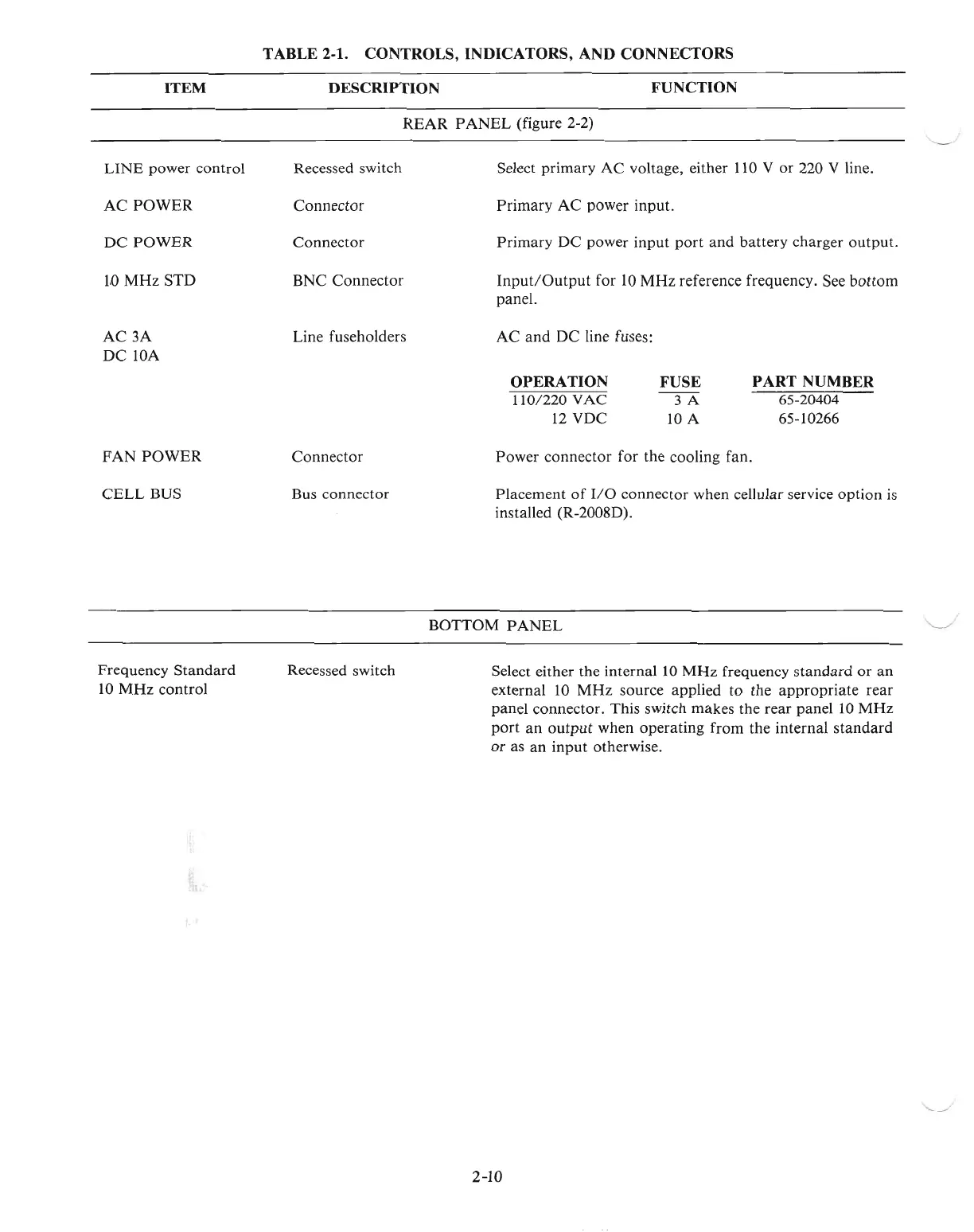

TABLE 2-1. CONTROLS, INDICATORS, AND CONNECTORS
ITEM
DESCRIPTION
REAR PANEL (figure 2-2)
FUNCTION
-------
LINE power control
AC POWER
DC POWER
10 MHz STD
AC3A
DC lOA
Recessed switch
Connector
Connector
BNC Connector
Line fuseholders
Select
primary AC voltage, either 110 V or 220 V line.
Primary AC power input.
Primary DC power input port and battery charger output.
Input/Output for 10 MHz reference frequency. See bottom
panel.
AC and DC line fuses:
OPERATION
1101220 VAC
12 VDC
FUSE
~
lOA
PART NUMBER
65-20404
65-10266
FAN POWER
CELL BUS
Frequency
Standard
10 MHz control
Connector
Bus connector
Recessed switch
Power connector for the cooling fan.
Placement
of I/O connector when cellular service option is
installed (R-2008D).
BOTTOM PANEL
Select either the internal 10 MHz frequency standard or an
external 10 MHz source applied to the appropriate rear
panel connector. This switch makes the rear panel 10 MHz
port an output when operating from the internal standard
or as an input otherwise.
2-10
'---
