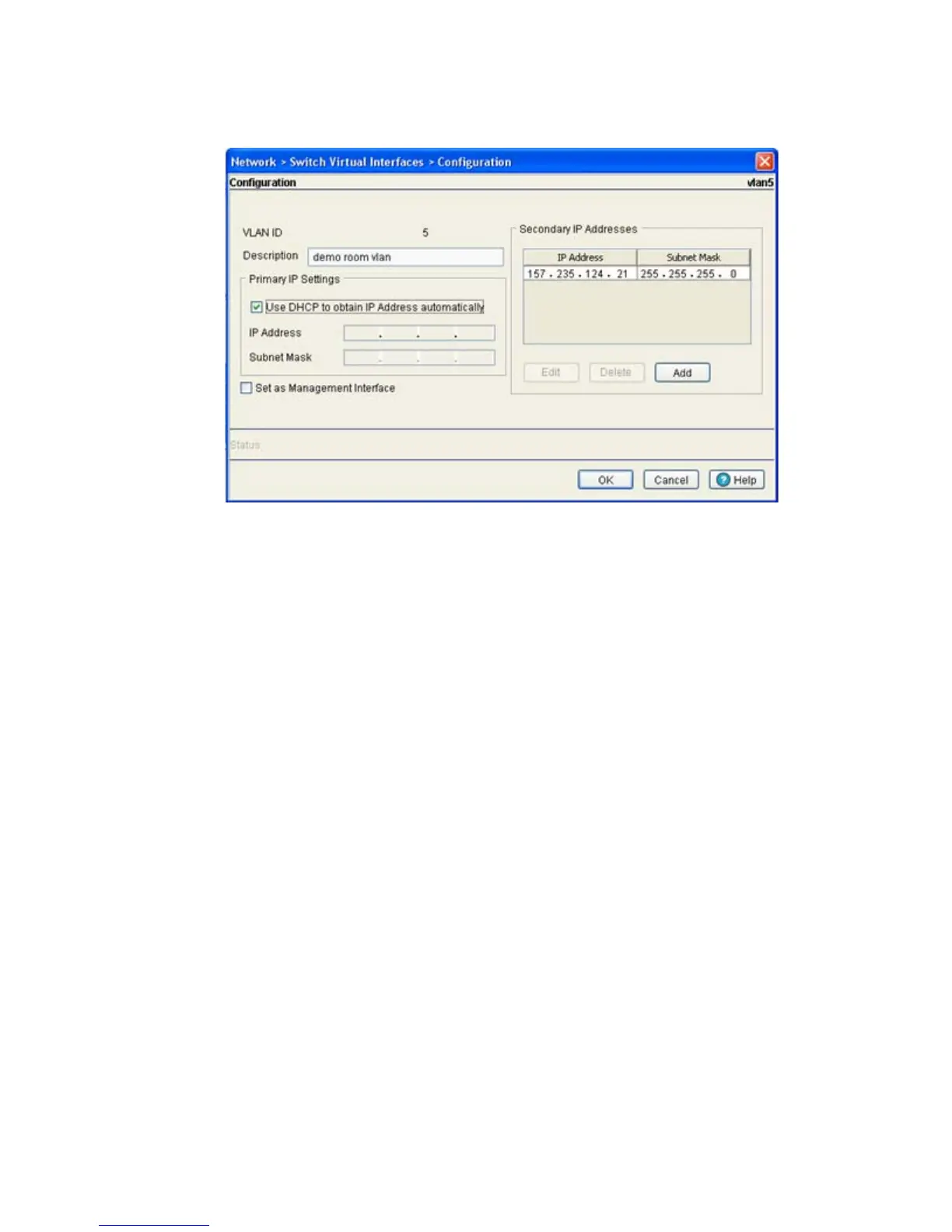

2. Select the Configuration tab and click the Edit button.
The screen displays with the name of the VLAN displayed in the upper left-hand side. The VLAN ID
cannot be modified and should be used to associate the VLAN ID with the description and IP address
assignments defined.
3. If necessary, modify the Description of the VLAN, to make it representative of the VLAN’s intended
operation within the switch managed network.
4. Unselect the Use DHCP to obtain IP Address automatically checkbox to assign IP addresses
manually and you do not want DHCP to provide them.
5. Use the Primary IP Address field to manually enter the IP address for the virtual interface.
6. Enter the Subnet Mask for the IP address.
7. Select the Set as Management Interface checkbox to convert the selected VLAN ID to a
management interface.
8. Use the Secondary IP Addresses field to define/modify additional IP addresses to associate with
VLAN IDs. The addresses provided will be used if the primary IP address is unreachable.
Select the Add button (within the Secondary IP Addresses field) to define/modify additional
addresses from a sub screen. Select an existing secondary address and select Edit or Delete to
revise or remove a secondary address as needed.
9. Refer to the Status field for the current state of the requests made from applet. This field displays
error messages if something goes wrong in the transaction between the applet and the switch.
10. Click OK to use the changes to the running configuration and close the dialog.
11. Click Cancel to close the dialog without committing updates to the running configuration.
4.4.2 Viewing Virtual Interface Statistics
The Statistics screen displays information about packet level statistics and errors at the interface.
To view virtual interface statistics:
1. Select Network > Switch Virtual Interface from the main tree menu.
