Motorola RFS7000 Series System Reference Guide

Overview
1-4

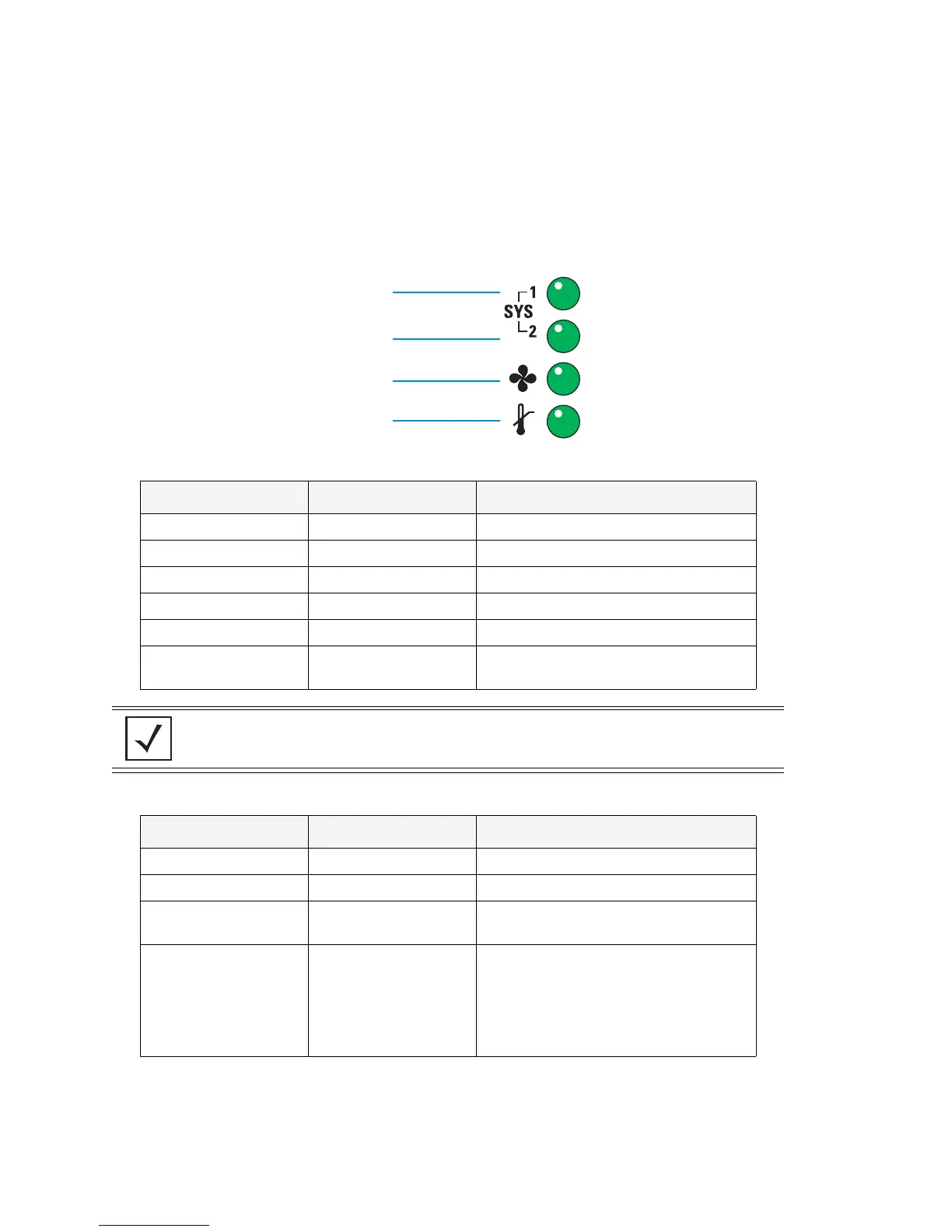

1.1.2 System Status LED Codes
The RFS7000 has four vertically-stacked LEDs on its front panel. Each of the switch’s Gigabit Ethernet ports
have two status LEDs. These LEDs display two colors (green & amber), and three lit states (solid, blinking, and
off). The following tables describe the combinations of LED colors and states for the System Status LEDs and
the Gigabit Ethernet LEDs.
1.1.2.1 System Status LEDs
Start Up / POST (Primary System or Redundant System)
Switch Status (Primary System)
System Status 1 LED System Status 2 LED Event
Off Off Power off
Green Blinking Green Blinking Power On Self Test (POST) running
Green Solid Green Blinking POST succeeded (Operating System Loading)
Green Solid Off POST succeeded (Normal Operation)
Amber Blinking Off POST Failure
Alternating Green Blinking
& Amber Blinking
Alternating Green Blinking
& Amber Blinking
Boot Up Error: Device has an invalid checksum
NOTE When starting the switch, the Temperature Status LED will be Solid Amber. This is
normal behavior and does not indicate an error. At the completion of the start-up
process, the Temperature Status LED will switch to Solid Green.
System Status 1 LED System Status 2 LED Event
Off Off Power off
Green Solid Off No Redundancy Feature Enabled
Green Solid Green Solid
Redundancy Feature Enabled
Actively Adopting Access Ports
Green Solid Amber Blinking
No License to adopt Access Ports
or
No Country Code configured on the switch
or
License and Country Code configured, but no
APs adopted
6\VWHP6WDWXV
)DQVWDWXV
7HPSHUDWXUHVWDWXV
6\VWHP6WDWXV
