Overview
1-7
SFP Port Speed LED
SFP Port Status LED

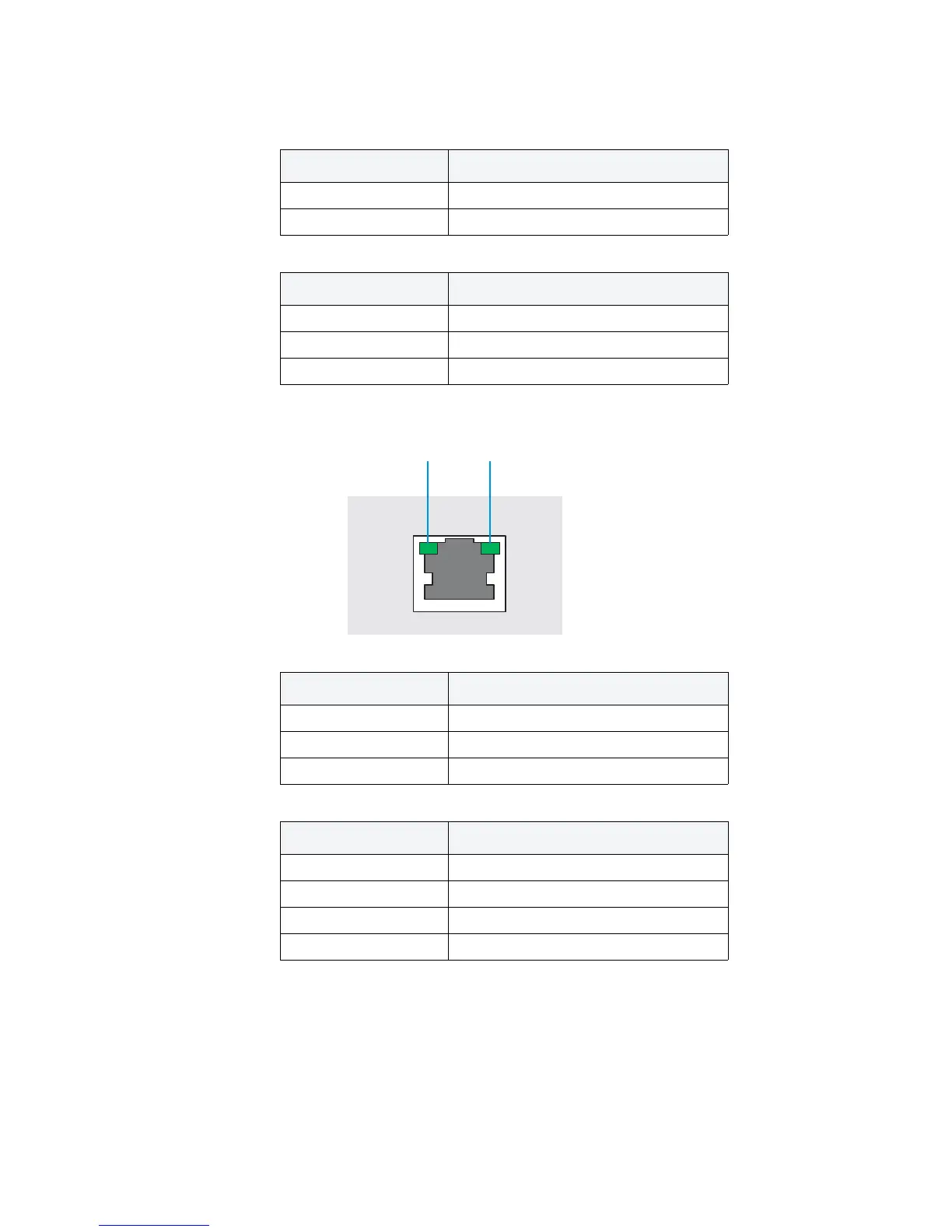

1.1.2.4 Out of Band Management Port LEDs
Out of Band Management Port Speed LED
Out of Band Management Port Status LED
1.2 Software Overview
The switch includes a robust set of features. The features are listed and described in the following sections:
• Infrastructure Features
• Wireless Switching
• Wired Switching
Port Speed LED Event
Green Blinking 1000 Mbps
Amber Blinking Module or Tx/Rx fault loss
Port Status LED Event
Off No link or administratively shut down
Green Solid Link present / Operational
Amber Blinking Module or Tx/Rx fault loss
Port Speed LED Event
Off 10 Mbps
Green Solid 100 Mbps
Amber Blinking Port fault
Port Status LED Event
Off No link
Green Solid Link present
Green Blinking Activity: Transmit and receive
Amber Blinking Link fault
V\PB
3RUW
VSHHG
3RUW
VWDWXV
