Switch Security
6-30
6.5.4 Attaching an ACL on a WLAN Interface/Port
Use the Attach-WLAN tab to view and assign an ACL to a WLAN on the switch. By default, arp is not
supported. Create a MAC ACL to allow arp on the switch.
To attach an interface:
1. Select Security > ACLs from the main menu tree.

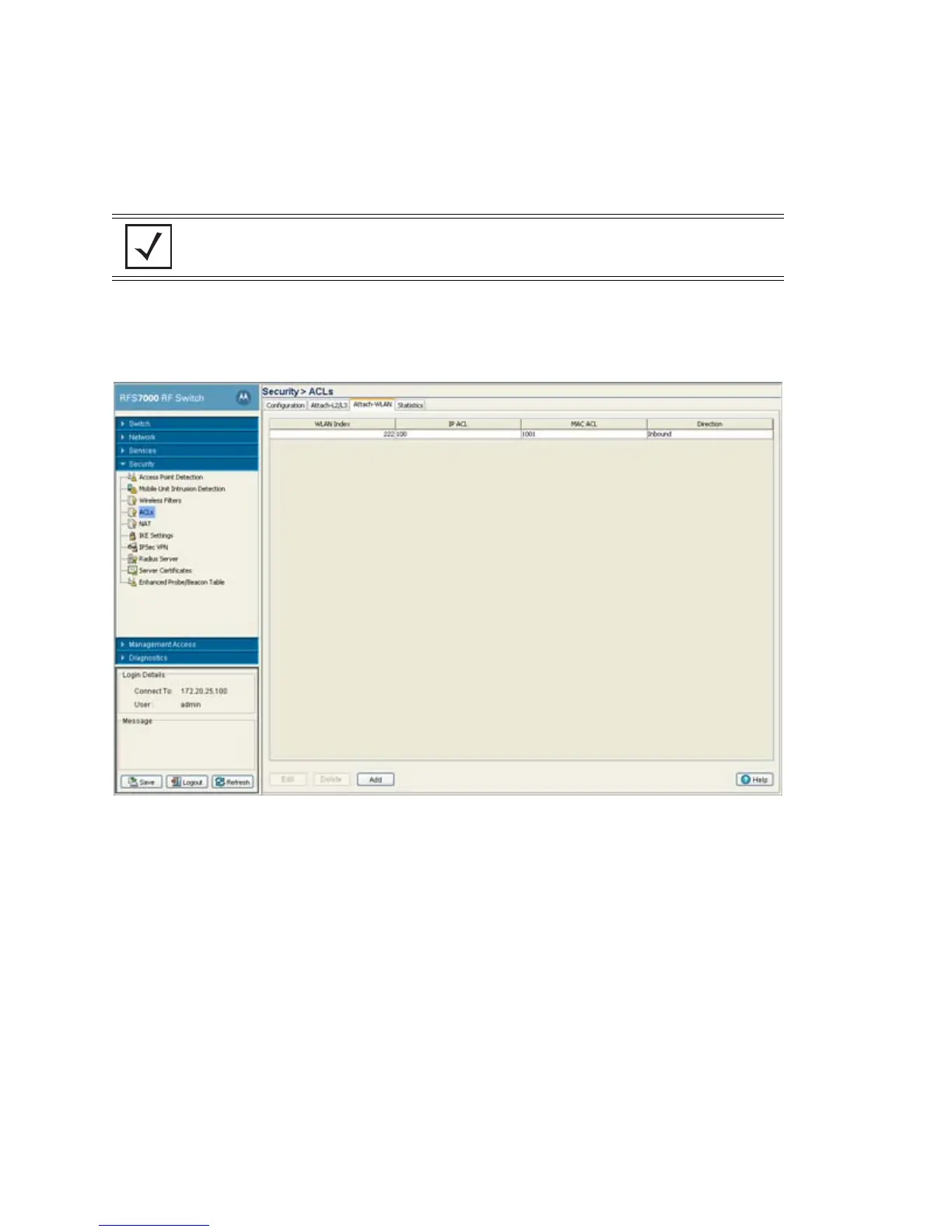

2. Click the Attach-WLAN tab.
3. Refer to the following information as displayed within the Attach - L2/L3 tab:
4. Select a WLAN (by row) and click Edit to modify the WLAN Index, IP ACL and MAC ACL values. For
more information, see Adding or Editing a New ACL WLAN Configuration on page 6-31.
5. Select a row and click the Delete button to delete the ACL from the list available (but not from the
switch).
6. Click on Add button to add an ACL to a WLAN interface. For more information, see Adding or Editing
a New ACL WLAN Configuration on page 6-31.
NOTE WLAN based ACLs allows users to enforce rules/ACLs on both the inbound and
outbound direction, as opposed to L2 ACLs, which just support the inbound
direction.
WLAN Index
The WLAN Index displays the list of WLANs attached with ACLs.
IP ACL
Displays the IP ACL configured.
MAC ACL
Displays the MAC ACL configured.
Direction
Displays whether the ACL is configured to work in the inbound or
outbound direction.
