Switch Security
6-18

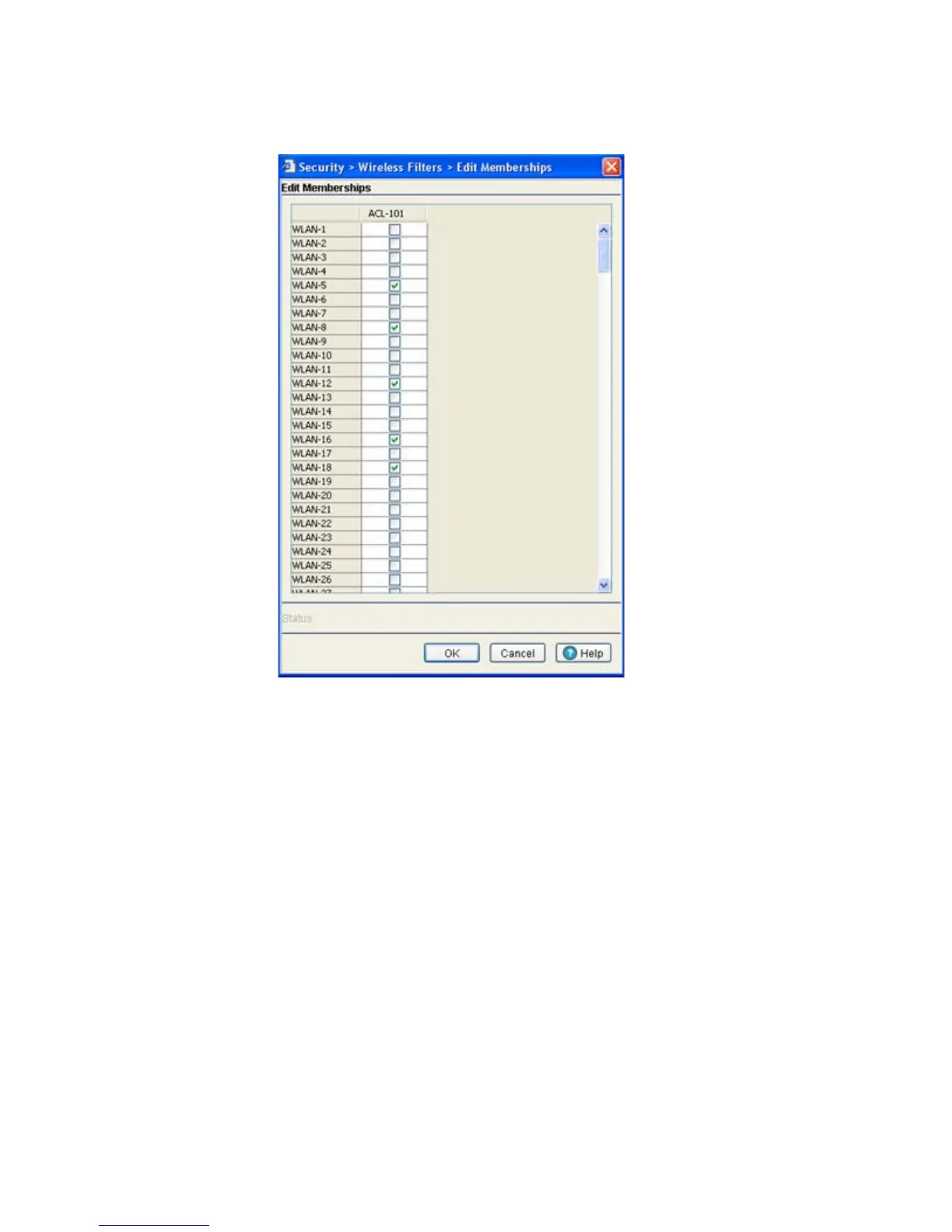

4. Select the box to the right of each WLAN you want associated with the ACL.
Selecting a WLAN maps it the MAC address range and allow or deny designation assigned to it.
Consequently, be sure you are not restricting MU traffic for a WLAN that requires those MAC
addresses to interact with the switch.
5. Refer to the Status field for the current state of the requests made from applet. This field displays
error messages if something goes wrong in the transaction between the applet and the switch.
6. Click OK to use the changes to the running configuration and close the dialog.
7. Click Cancel to close the dialog without committing updates to the running configuration.
