Switch Security
6-61
4. Select an existing Crypto Map and click the Edit button to modify the Crypto Map’s attributes.
If an entire Crypto Map requires revision, consider deleting the Crypto Map and creating a new one
using the Add function.
Refer to the definitions supplied for the Add Crypto Map screen (on the next page) to ascertain the
requirements for editing a Crypto Map.
5. Select an existing Crypto Map and click the Delete button to remove it from the list of available
Crypto Maps within the screen.

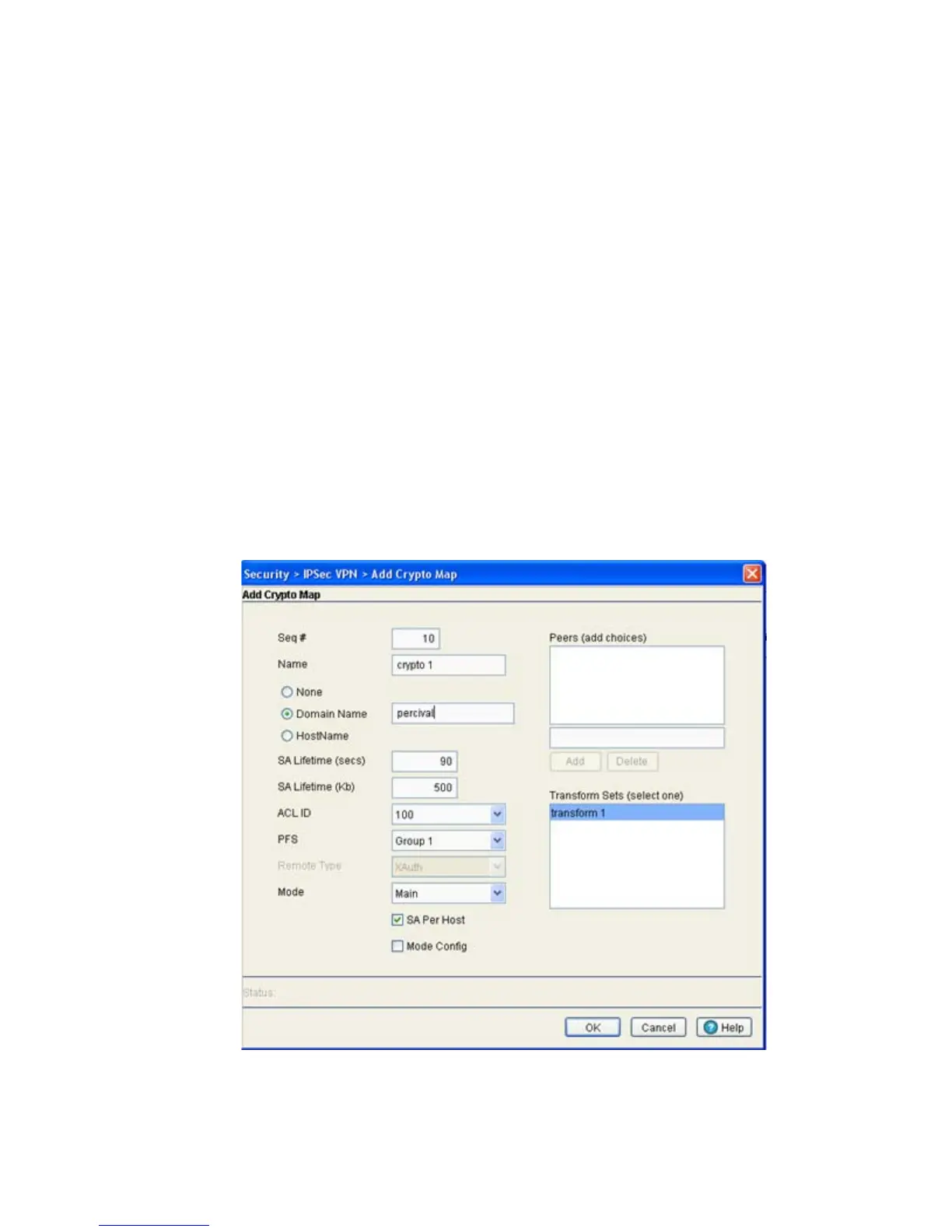

6. Click the Add button to define the attributes of a new Crypto Map.
a. Assign a Seq # (sequence number) to distinguish one Crypto Map from the another.
b. Assign the Crypto Map a Name to differentiate from others with similar configurations.
Number of Peers Displays the number of peers used by each Crypto Map displayed.
SA Lifetime (secs) Displays a SA Lifetime (in seconds) that forces the periodical expiration and
re-negotiation of peer credentials. Thus, continually validating the peer
relationship.
SA Lifetime (Kb) Causes the security association to time out after the specified amount of
traffic (in kilobytes) has passed through the IPSec tunnel (using the security
association).
ACL ID Displays the name of the ACL ID used for each Crypto Map.
Number of Interfaces Displays the number of interfaces each specific Crypto Map is used with.
