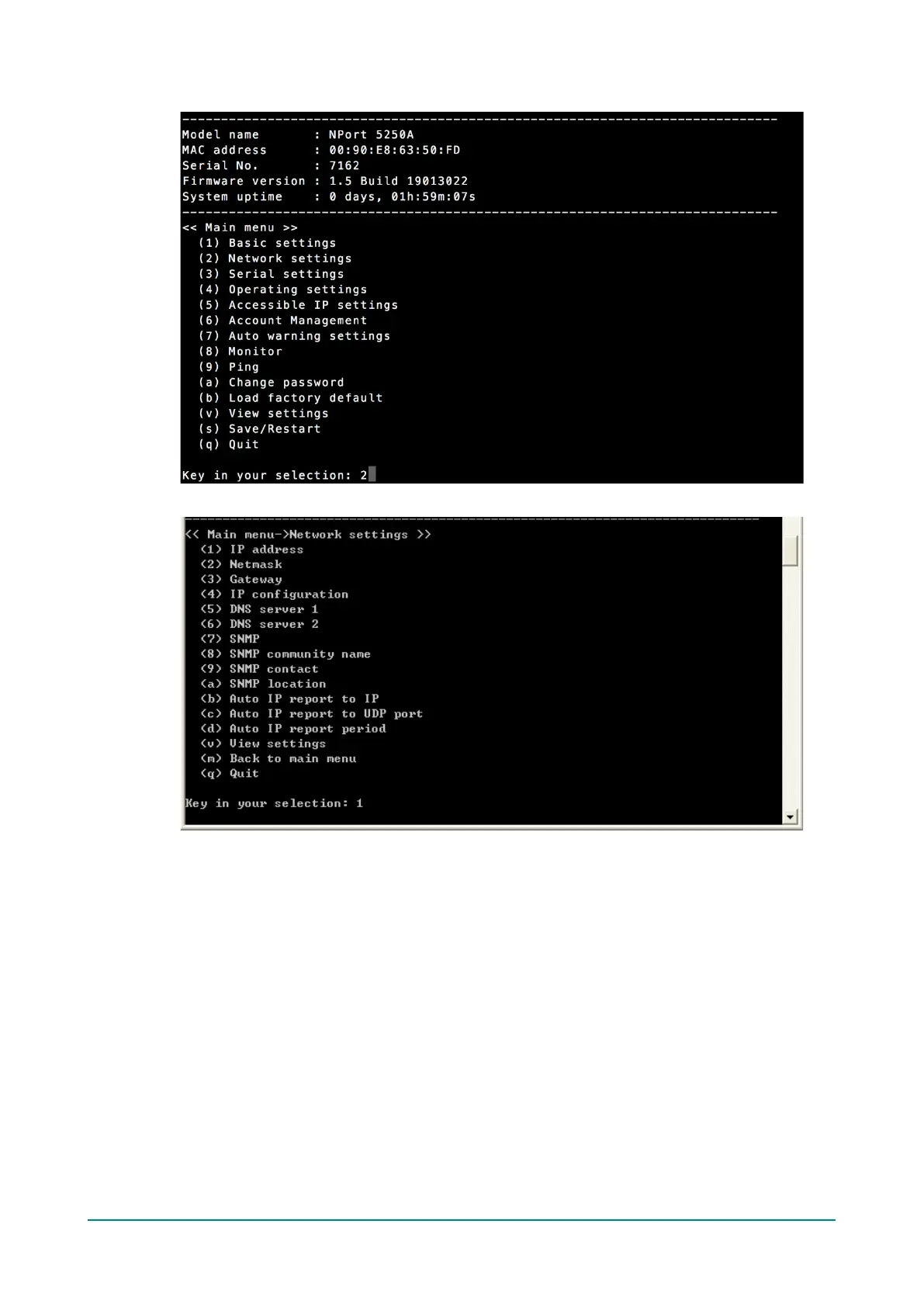

NPort 5100A Series Web Console Configuration
Inactivity time
Setting Factory Default Necessity
0 to 65535 ms 0 Optional
Idle time setting for auto-disconnection. 0 min. means it will never disconnect.
Local TCP port
Setting Factory Default Necessity
1 to 65535 4001 Required
Each of the NPort 5100A’s serial ports is mapped to a TCP port. To avoid conflicts with common TCP port
numbers, set port numbers to 4001 for port 1, 4002 for port 2, etc.
Map <CR-LF>
Setting Factory Default Necessity
CR, LF, or CR-LF CR-LF Required
If data received through the NPort 5100A’s Ethernet port is sent using the “enter” command, the data will be
transmitted out the serial port with additional characters, as described below:
1. “carriage return + line feed” if you select the <CR-LF> option
(i.e., the cursor will jump to the next line, and return to the first character of the line)
2. “carriage return” if you select the <CR> option
(i.e., the cursor will return to the first character of the line)
3. “line feed” if you select the <LF> option.
(i.e., the cursor will jump to the next line, but not move horizontally)
Disabled Mode
When Operation mode is set to Disabled, that particular port will be disabled. Check the “Apply the above
settings to all serial ports” to apply this setting to the other port.
