Bolt X Quick Start Guide
33

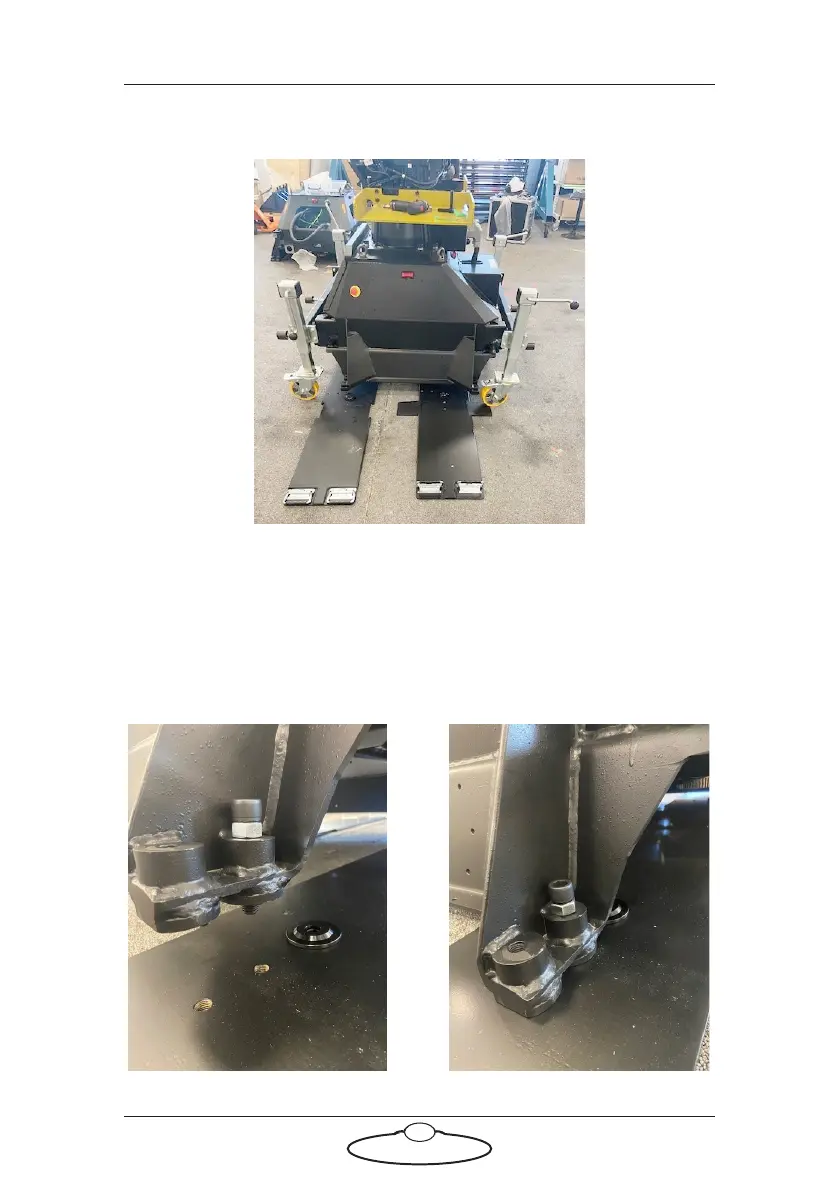

7. Still keeping the wheels straight, wheel the Bolt X so it climbs the
second weight plate using the ramps.
8. Drop the screws in the Bolt X base screw cavities along with the
supplied nuts and, if required, adjust the weight plates below so that
the screws line up. You will need to raise the jacking castors so the
Bolt X Base rests on the weight plates.
9. Once the screws have lined up, lower them until they touch the
ground (finger tight against the ground) and then tighten the lock
nuts on them.
