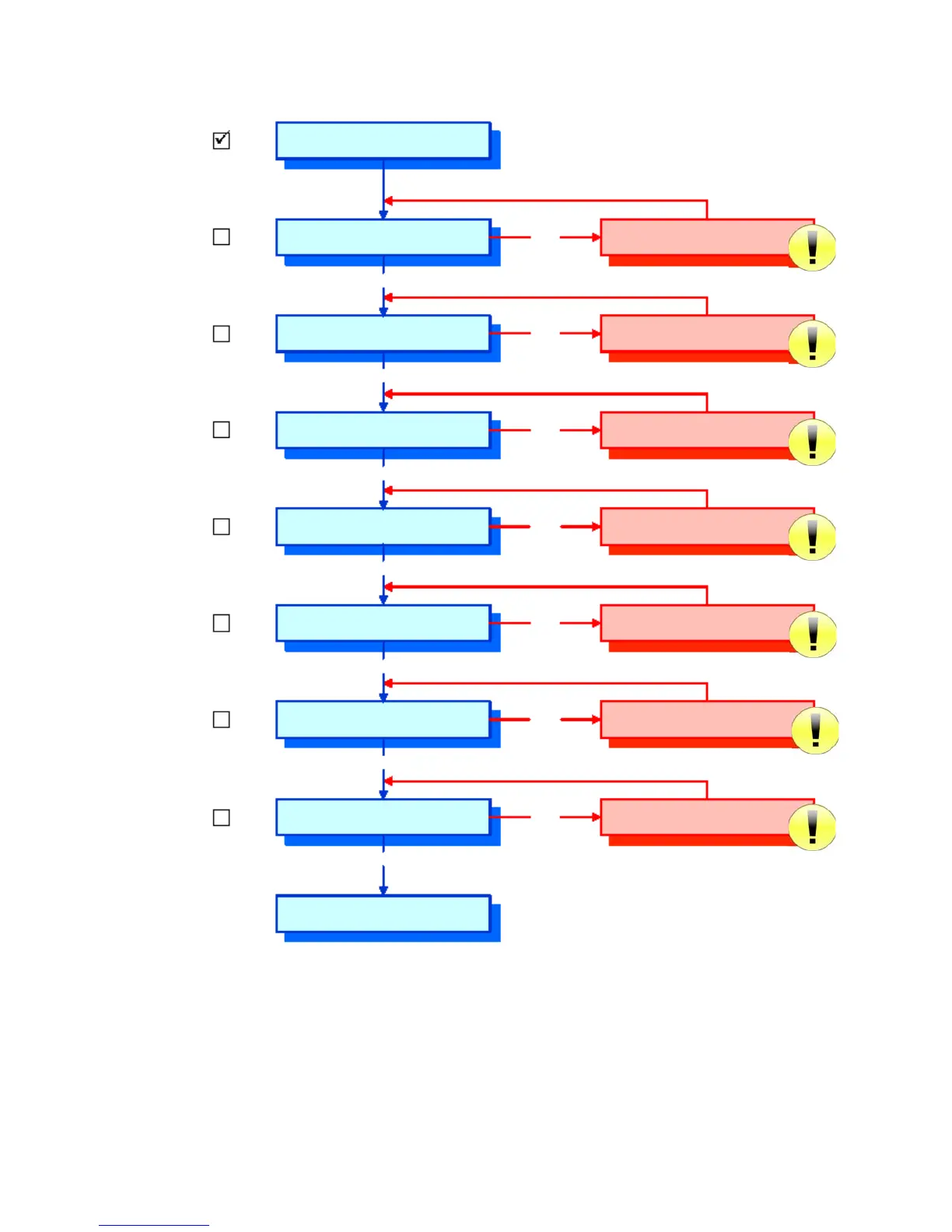

HYDRAULIC CIRCUIT CHECK LIST
No
No
No
No
No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Start
Water inlet and outlet connections follow
correct direction?
Hydraulic circuit connections made in
compliance with best technical practice?
Unit is full of water and all air pockets have
been removed?
Pump direction of rotation correct?
Water flow rate to evaporator is as prescribed
in the manual?
Any installed flow switches/differential
pressure switches are active and correctly
connected?
Water filter upline from evaporator installed
correctly?
Water connections have been made correctly
Adapt the connections
Correct connections
Fill hydraulic circuit and/or bleed the air
if present
Restore correct direction of rotation
Adjust water flow rate
Connect correctly or renew the
component
Repair or renew the filter
To Next Page
