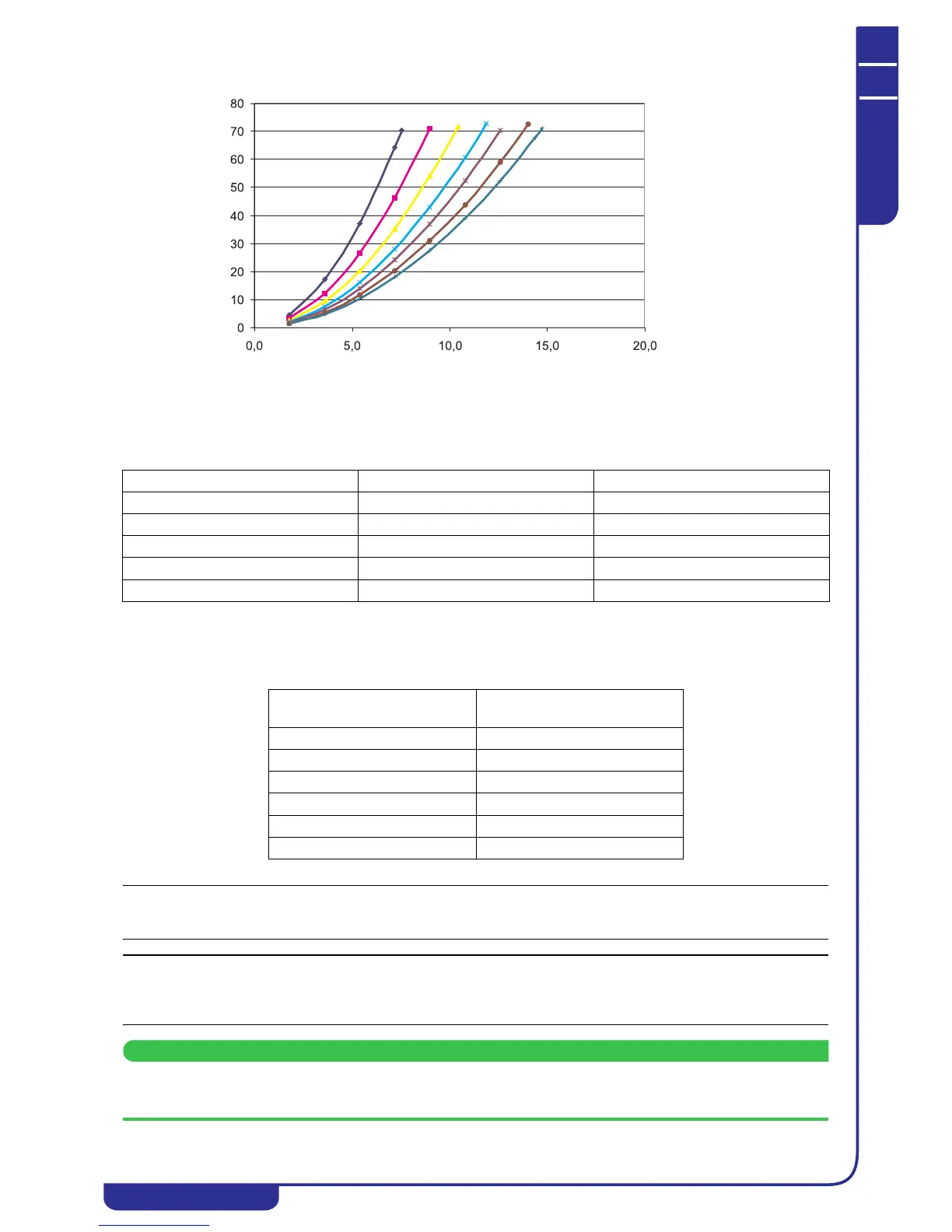

Desuperheaters pressure drops
4.3.4 Freeze protection
Even if the minimum working ambient temperature is higher than 0 °C, during shutdown periods in the winter season the unit
may be subject to temperatures that are lower than 0 °C. In such cases if the water circuit is not drained, to avoid ice
formation ethylene or propylene glycol antifreeze should be added to the water in the following percentages:
In summer, when the unit operates as a chiller, to avoid the formation of ice ethylene or propylene glycol antifreeze should be
added to the water in the following percentages in accordance with the chilled water outlet temperature:
With intake temperature control, the reference for the glycol percentage is equal to the setpoint less 6°C.
E.g. Setpoint 11.0 °C (reference for glycol 5 °C) recommended percentage 20%.
- The minimum recommended antifreeze % takes the coolant's operating conditions into consideration and is not strictly
dependant on the freezing point of the chilled water leaving the unit.
- The water flow rate must comply with the value stated in the performance technical data or the selection software.
Freeze protection setpoint set at 5°C.
For water outlet temperatures lower than 6 °C you must add a suitable quantity of antifreeze solution.
Ambient T up to [°C] Ethylene Glycol [% by weight] Propylene Glycol [% by weight]
000
-5 15 20
-10 25 30
-15 30 35
-20 40 40
water outlet T
up to [°C]
Ethylene or propylene glycol
[% by weight]
60
320
025
-5 30
-7 35
-10 40
