6.7.21 Free-cooling
The parameters for management of Free-Cooling can be defined in the menu.
The free-cooling unit is modular. One or more external free-cooling modules can be added in communication with the
machine.
The menu is accessible by means of the service level password and with Free-cooling enabled.
Free-cooling provides the facility to exploit ambient temperature, whenever possible, to cool the process water. By means of
a modulating three-way valve the water is transferred to a fan coil and cooled in a manner that is independent of or in
addition to normal operation of the unit.
The function is activated when the following condition is fulfilled for a programmable time period (minutes):
BAT < BFCIT
where:
• BAT is the temperature of the reference ambient probe
• BFCIT is the water temperature at the free-cooling coil inlet
• is the free-cooling activation differential
If the previous condition is false for a programmable time, free-cooling is deactivated.
Free-cooling can be activated only during operation of the unit in chiller mode.
The envisaged mode applicable on the machine is modular.

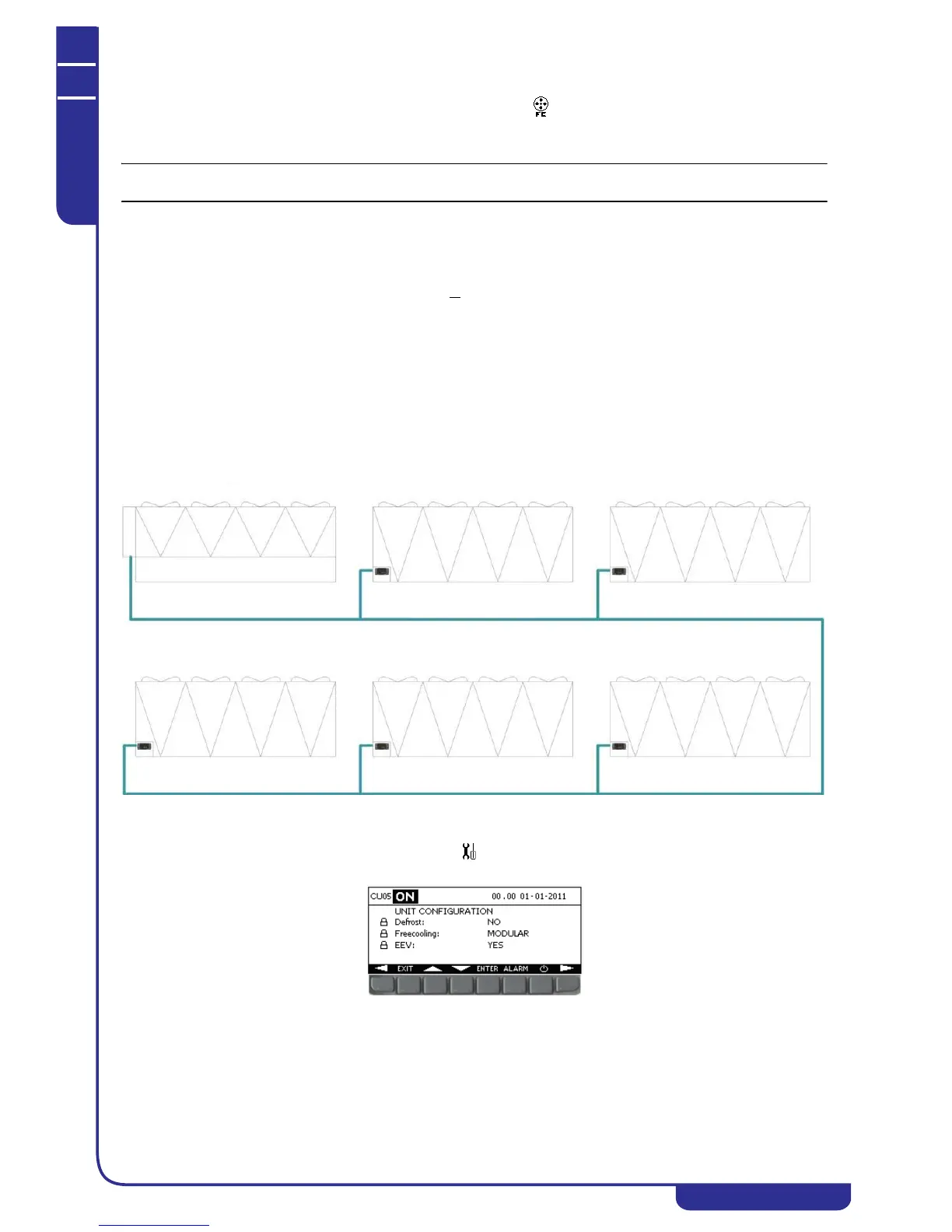

6.7.21.1Modular free-cooling
Modular free-cooling can be implemented with a system of free-cooling units, each of which composed of a valve and a
group of fans. The maximum number of modules that can be connected to the unit is 6.
CONFIGURATION
Proceed as follows to configure a modular free-cooling system.
1. Enable free-cooling in mask CU05 of the menu selecting the MODULAR option (changes can only be made
after accessing the reserved menu using either the service or manufacturer level password);
