7.6 Forced ventilation of the electrical board
The circulation fan is controlled by a thermostat positioned inside the electrical panel. It starts when the temperature inside
the electrical panel exceeds the thermostat’s set point.
The setpoint value is 40°C.
The differential value, 4°C, is fixed.
7.7 Antifreeze control
Antifreeze control actions depend on the temperature measured at the evaporator outlet.
When the temperature falls below the previously set antifreeze threshold value the controller generates an alarm that shuts
down the unit.
This alarm will remain active until the temperature returns to a value above the set-point + differential.
BA
Turn the trimmer B to change the sensitivity
range of the regulator A
L
250
 ÷ 5 K
S
5 K
 ÷ 100 K
H
50 K
÷ 500 K
ON
OFF

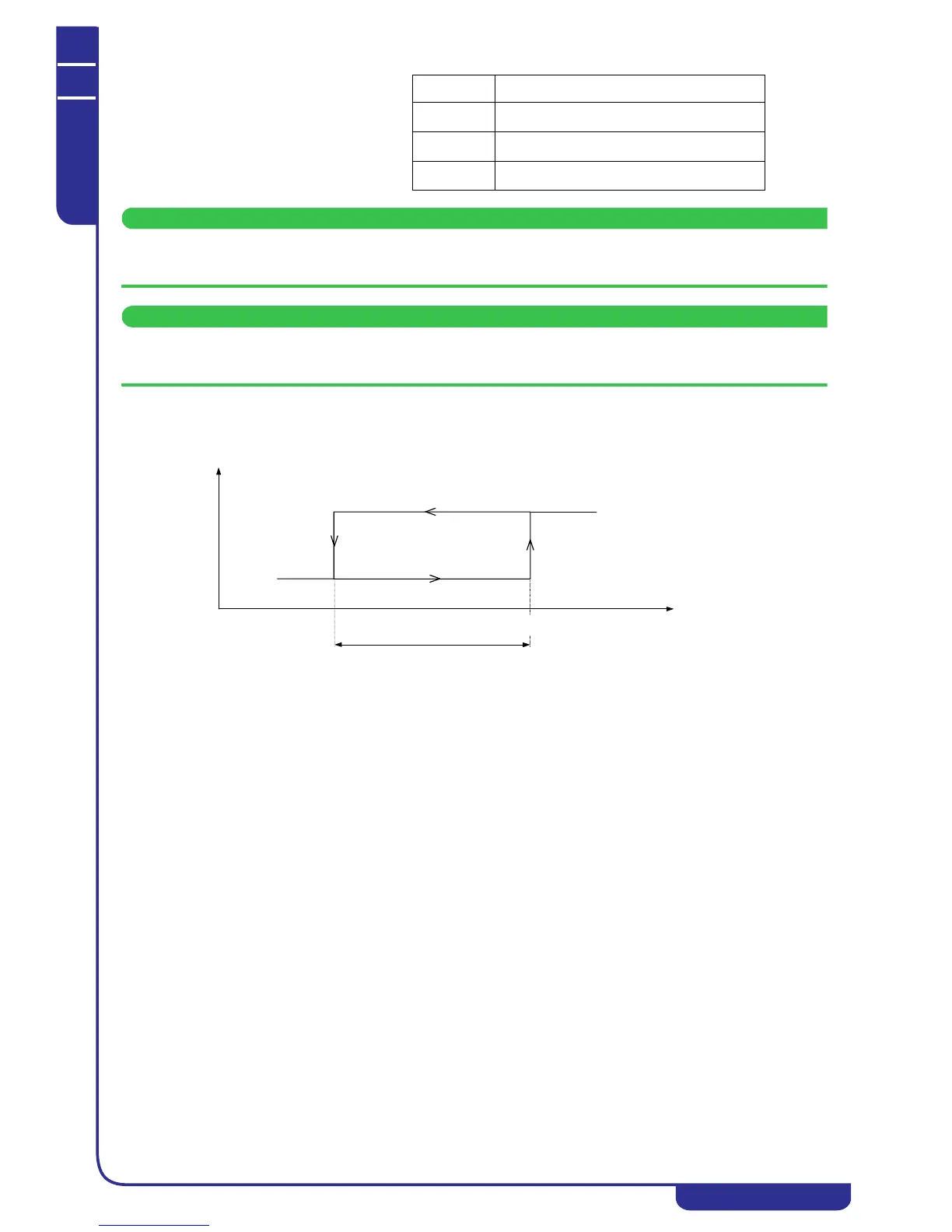

Electrical panel fan state
DIFFERENTIAL (Fixed)
SETPOINT
Temperature
Temperature inside
the electrical panel
