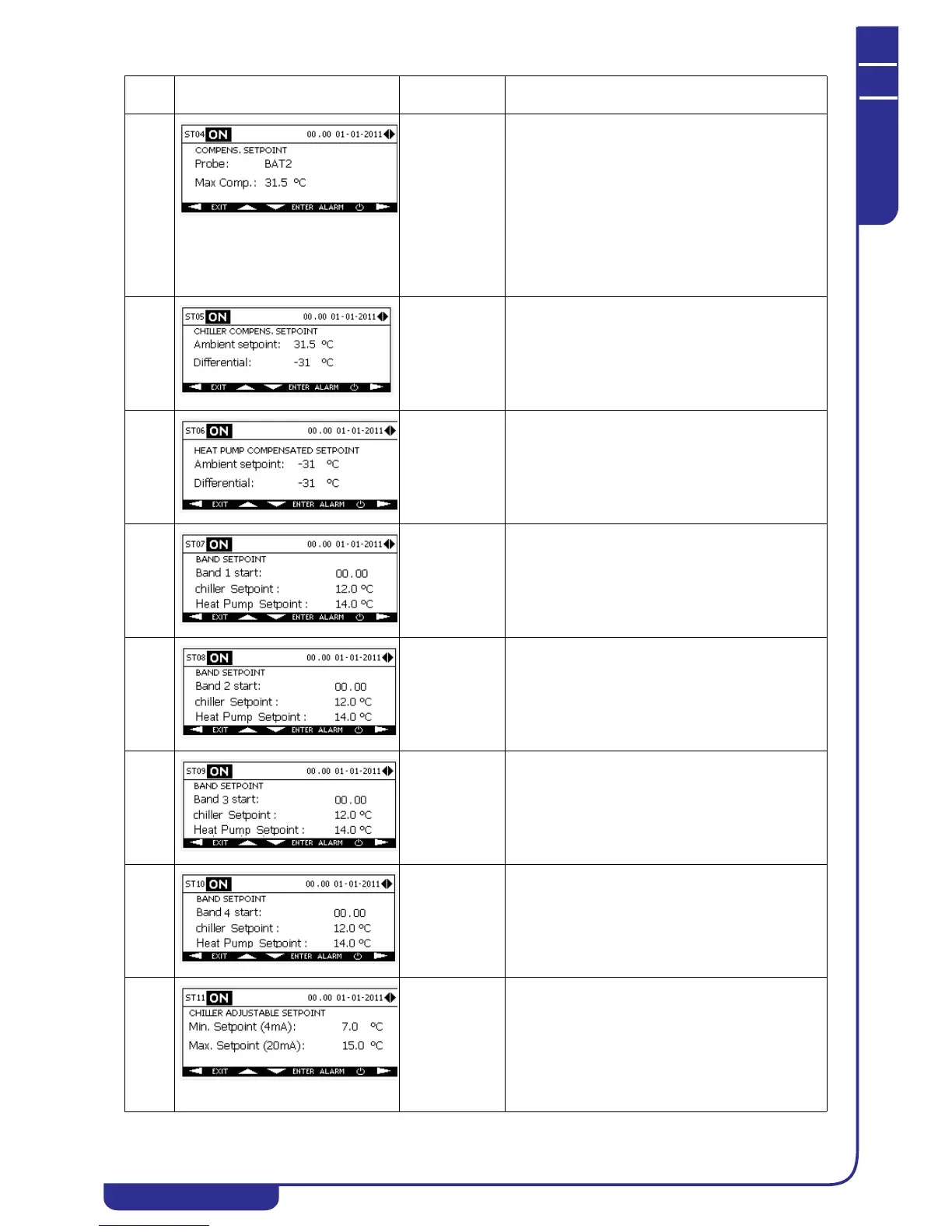

ST04 With
compensated
setpoint enabled
Makes it possible to select the room probe for
compensation (see "6.7.8.1 Setpoint types") from
among:
•BAT1
•BAT2
• Average between BAT1 and BAT2
• Minimum between BAT1 and BAT2
• Maximum between BAT1 and BAT2
Provides facility to edit maximum compensation. The
programmed value is valid for both chiller and heat
pump operating modes.
ST05 With
compensated
setpoint enabled
Facility to define the compensation setpoint and
differential for chiller mode operation (see "6.7.8.1
Setpoint types").
ST06 With
compensated
setpoint enabled
and chiller/heat
pump unit
Facility to define the compensation setpoint and
differential for heat pump mode operation (see "6.7.8.1
Setpoint types").
ST07 With time bands
setpoint enabled
Facility to set the start time of the first time band and
the relative setpoints for chiller/heat pump mode (see
"6.7.8.1 Setpoint types").
ST08 With time bands
setpoint enabled
Facility to set the start time of the second time band
and the relative setpoints for chiller/heat pump mode
(see "6.7.8.1 Setpoint types").
ST09 With time bands
setpoint enabled
Facility to set the start time of the third time band and
the relative setpoints for chiller/heat pump mode (see
"6.7.8.1 Setpoint types").
ST10 With time bands
setpoint enabled
Facility to set the start time of the fourth time band and
the relative setpoints for chiller/heat pump mode (see
"6.7.8.1 Setpoint types" ).
ST11 With adjustable
setpoint enabled
Displays the minimum setting of the adjustable setpoint
(see "6.7.8.1 Setpoint types") for chiller mode,
corresponding to a 4mA signal. Corresponds to the
fixed setpoint and editable from mask ST02.
Facility to edit the maximum setting of the adjustable
setpoint (see "6.7.8.1 Setpoint types") in chiller mode,
corresponding to a 20mA signal.
Ref. Mask
Display
conditions
Description
To Next Page
