XR21S59 CHU 27
1/2018
113813003
Hooklift Multilift XR21S59 CHU
User Manual
! !
! !
When loading and unloading a atrack/body, be sure that it is running in line between the
rear rollers.
Stop the movement of the middle frame immediately when the atrack/body is on ground.
If the hooklift movement is not stopped in time, the truck rear end will be lifted up from the
ground, which will cause damaging of the atrack/body, truck or the hooklift equipment.

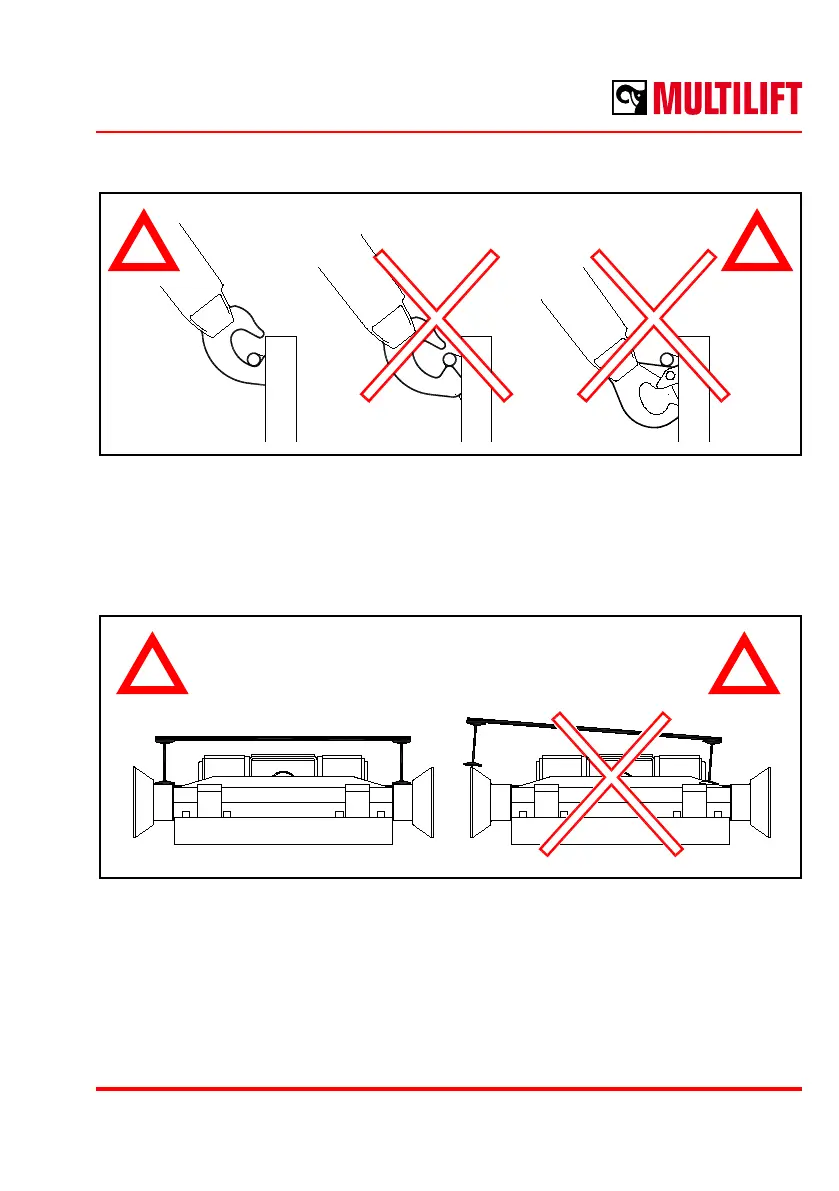

Before picking up the atrack/body, the gripping bar of the atrack/body must be properly
inside the lifting hook. In this way you prevent the atrack/body from falling. The situation
must be checked by lifting the atrack/body approx. 10 cm and after that checking physically
and visually that the atrack/body gripping bar is inside the lifting hook.
