Start-up
User manual 55170_hdb_en_13 46 / 145
Hardware catalog Scan the GSDML file of the IMPACT67into the hardware catalog of the
hardware configuration program.
When using TIA this module can then be found in the hardware catalog in the-
directory structure:
Other field devices | PROFINET IO | I/O | Murrelektronik | IMPACT67 | V5.0
If the engineering software supports the folder structure, the module is
displayed in a similar way to that shown in Fig. “Hardware catalog”.

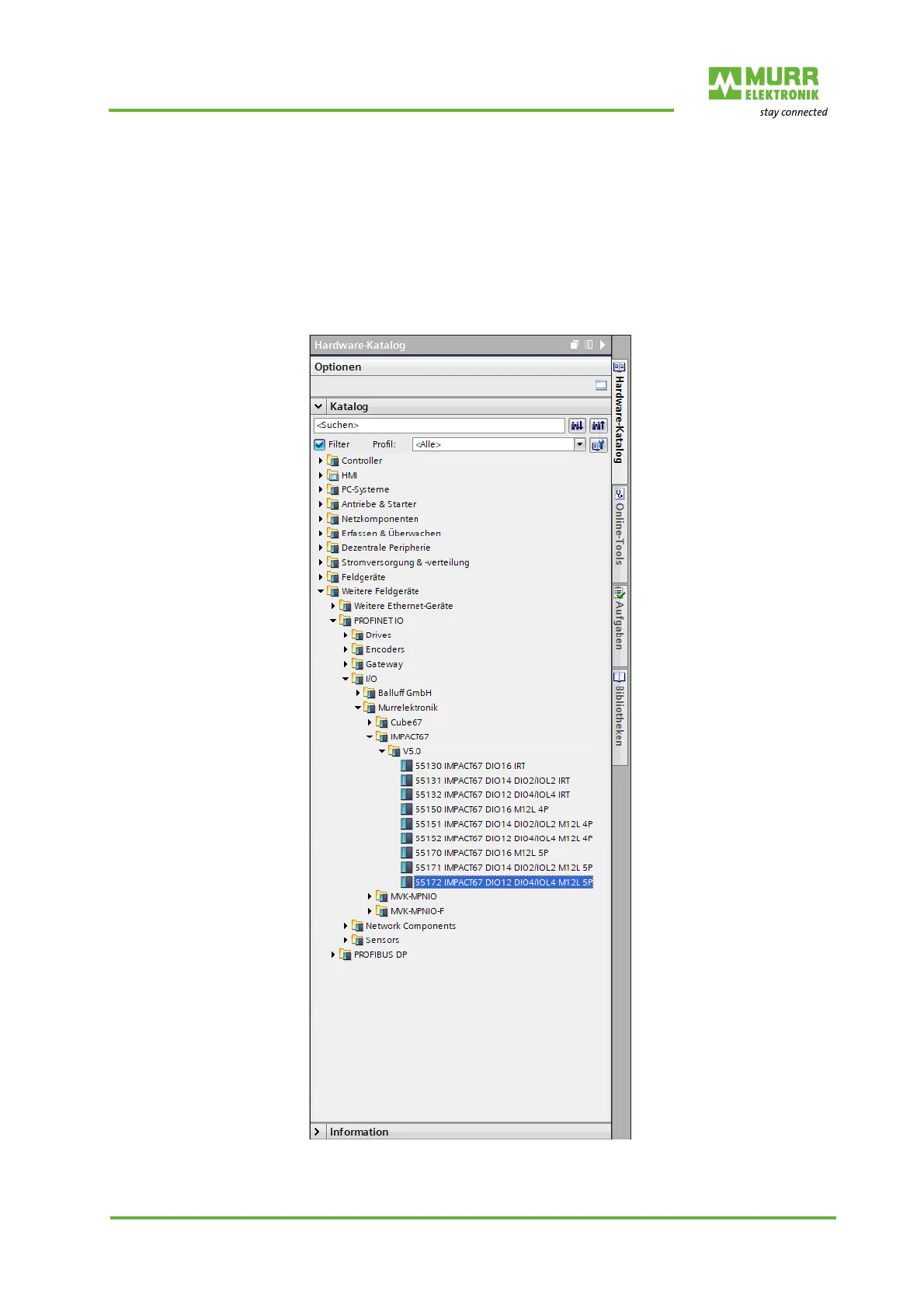

Fig. 7-1: Hardware catalog
