9-7
“Confidential, Do Not Duplicate without written authorization from NEC.”

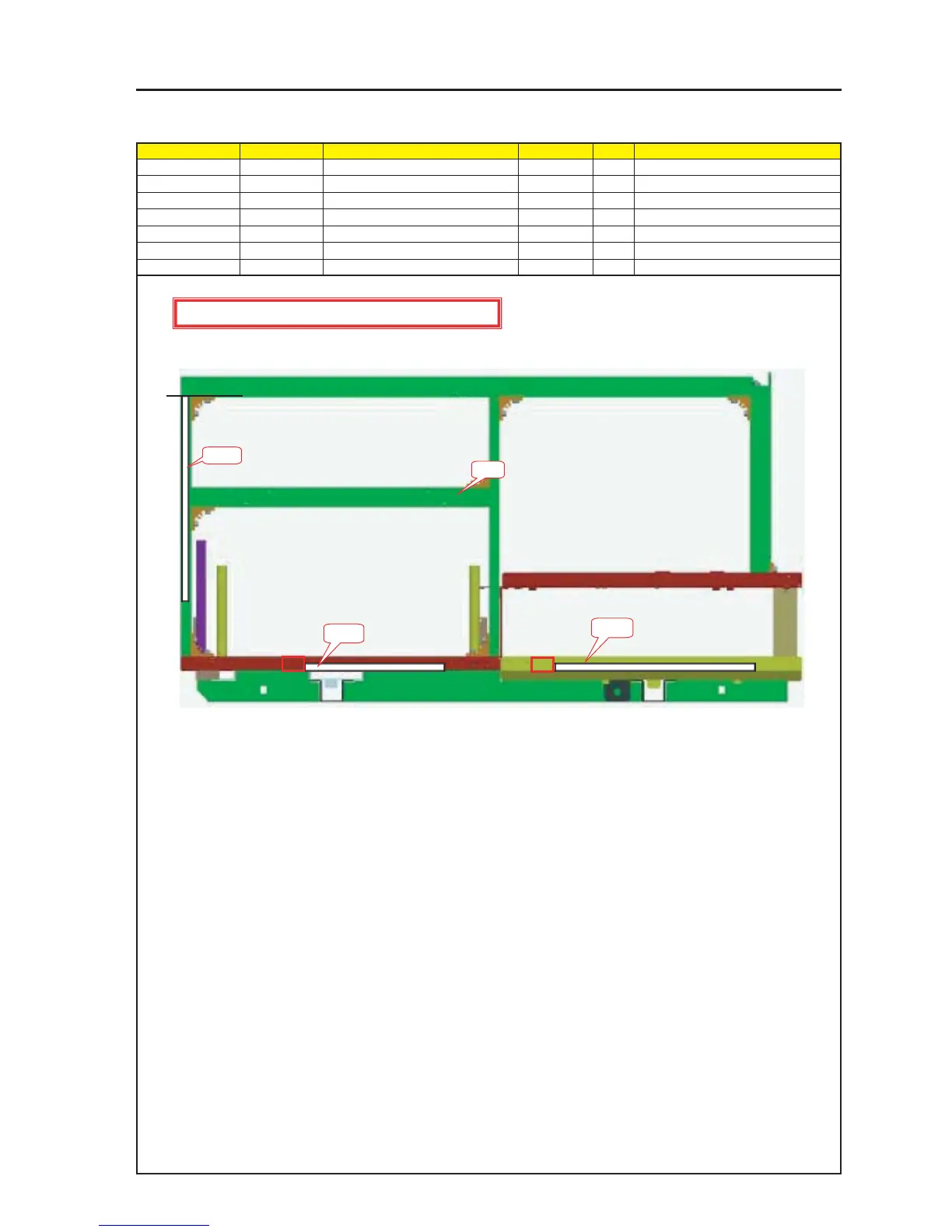

ASSEMBLY DIAGRAM
FRAME1_B
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 FRAME ASSY 24HS4261 1
PRT2 GASKET(STG2-10) 24C06051 1 250mm
PRT3 GASKET(STG2-10) 24C06051 1 210mm
PRT4 GASKET(STG2-10) 24C06051 1 300mm
1 GASKET(STG2-10) should be 210mm/250mm and 300mm each, and paste it on the FRAME ASSY.
PRT2 should be pasted based on outside of the Terminal area.
PRT3 shall be stuck, starting from the bracket and based on the lower side.
PRT4 shall be stuck, starting from the bracket and based on the lower side.
PRT2
PRT3
PRT1
CAUTION : EMI (Electro Magnetic Interference : radio disturbance)
PRT4
To Next Page
