9-8
“Confidential, Do Not Duplicate without written authorization from NEC.”

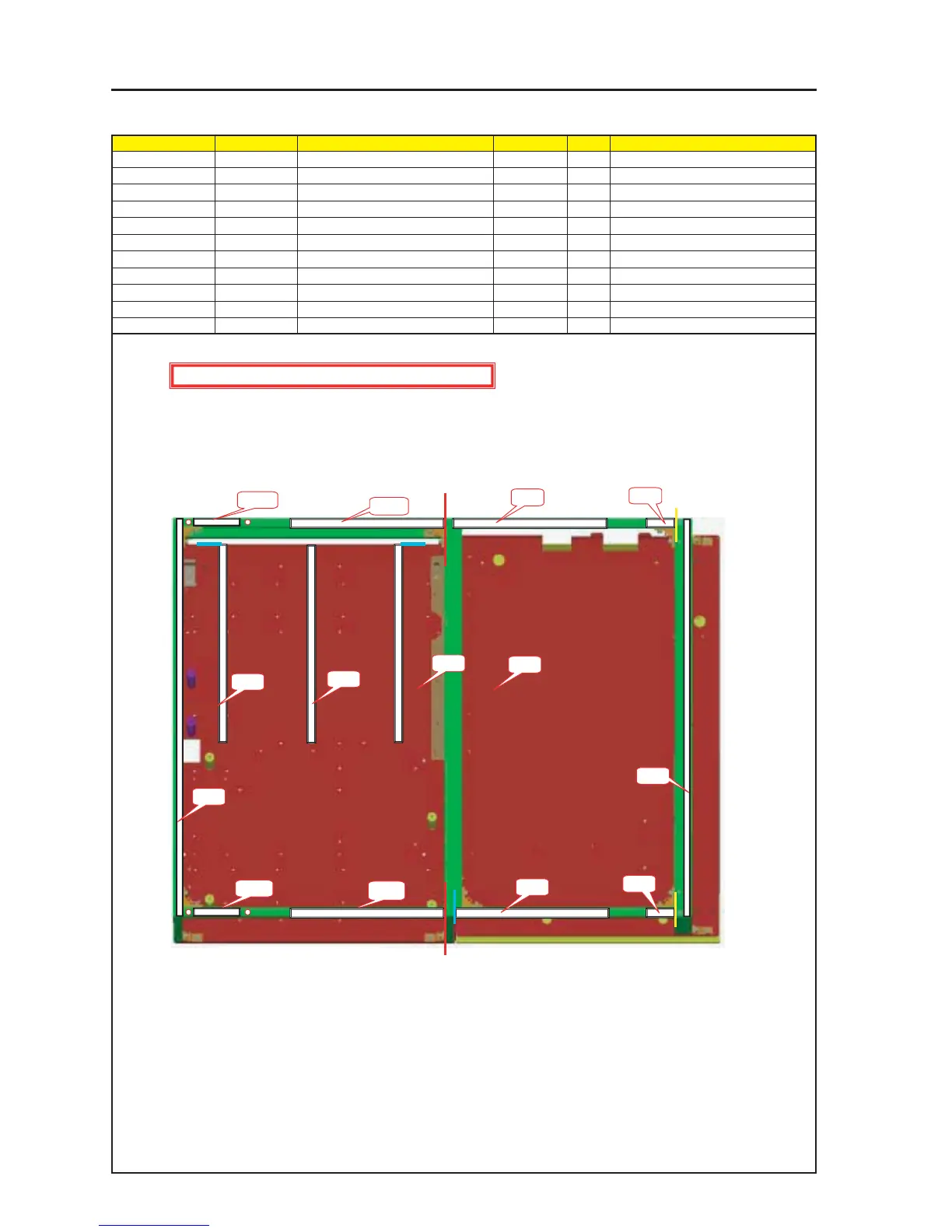

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 FRAME ASSY 24HS4261 1
PRT2 GASKET(STG0.5-8) 24C07561 1 680mm
PRT3 GASKET(STG0.5-8) 24C07561 1 680mm
PRT4 GASKET(STG0.5-8) 24C07561 3 300mm
PRT5 GASKET(STG10-10) 24C05351 2 270mm
PRT6 GASKET(STG10-10) 24C05351 2 90mm
PRT7 GASKET(STG10-10) 24C05351 2 140mm
PRT8 GASKET(STG10-10) 24C05351 2 30mm
FRAME1_C
1 GASKET(STG0.5-8 ) should be 300mm/680mm each, and paste it on the FRAME ASSY.
2 GASKET(STG10-10) should be 90mm/270mm each, and paste it on the FRAME ASSY.
3 GASKET(STG7-10) should be 50mm/ 170mm each, and paste it on the FRAME ASSY.
4 GASKET(STG0.5-8) should be 280mm/ 680mm each, and paste it on the FRAME ASSY.
PRT2 pastes based on inner side.
PRT3 pastes along SCREW.
The right and left of PRT4 shall be stuck to the inside ends of each metal fitting. PRT4 in the center shall be stuck to the center.
PRT5 shall be stuck along the outside and based on the left red line over the head.
PRT6 shall be stuck so that it comes to the center between the front and rear screws.
PRT7 shall be stuck according to the vertical frame (light blue).
PRT8 shall be stuck according to the junction at the left end.
PRT1
PRT2
PRT3
PRT4
PRT4
PRT4
PRT5
PRT5
PRT6
PRT6
CAUTION : EMI (Electro Magnetic Interference : radio disturbance)
PRT7
PRT7
PRT8
PRT8
To Next Page
