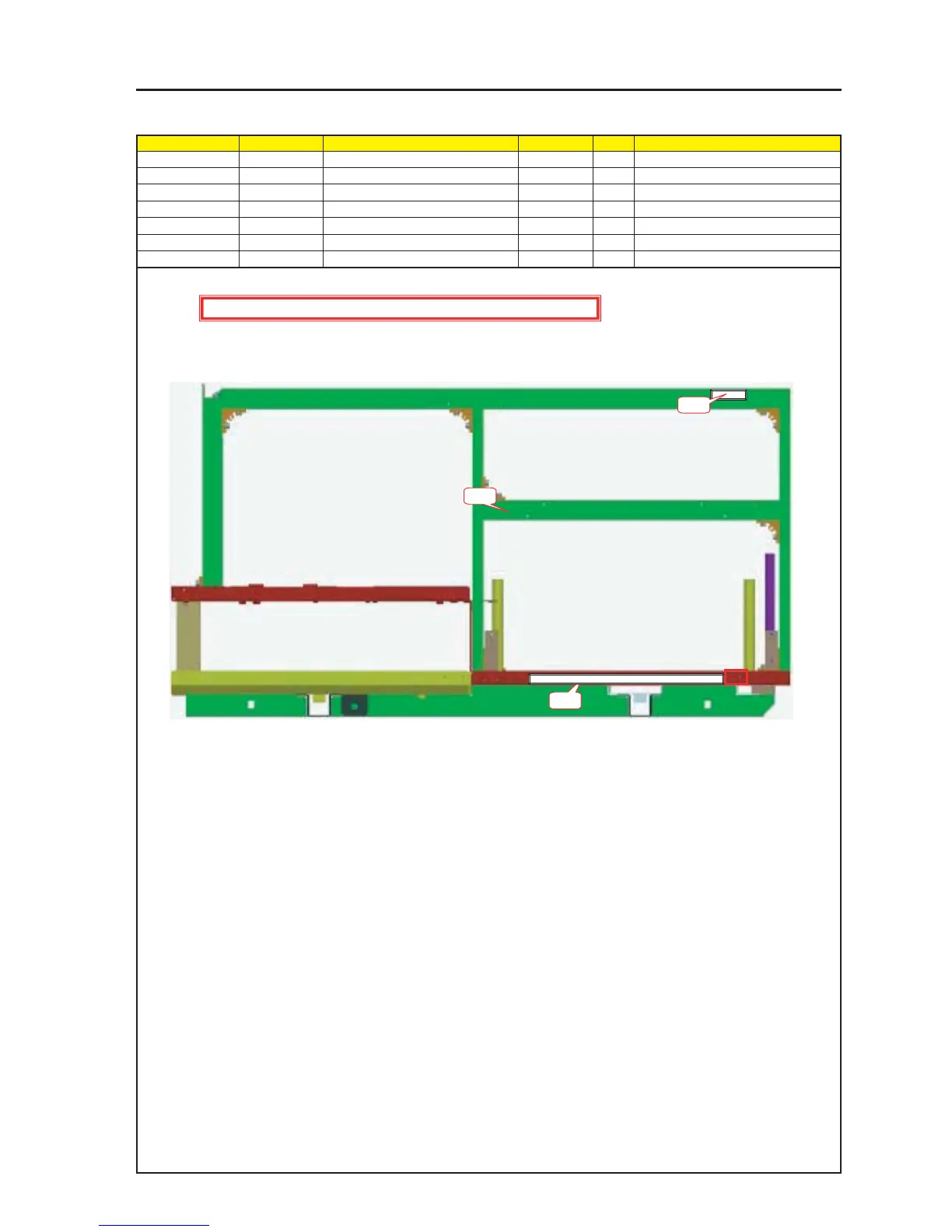

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 FRAME ASSY 24HS4261 1
PRT2 GASKET(STG2-10) 24C06051 1 70mm
PRT3 GASKET(STG2-10) 24C06051 1 310mm
FRAME1_E
1 GASKET(STG2-10) should be 70mm, and paste it on the FRAME ASSY.
2 GASKET(STG2-10) should be 310mm, and paste it on the FRAME ASSY.
PRT2 should be pasted on beside the Bracket T attachment.
PRT3 shall be stuck, starting from the bracket and based on the lower side.
PRT3
PRT1
PRT2
CAUTION : EMI (Electro Magnetic Interference : radio disturbance) countermeasure
