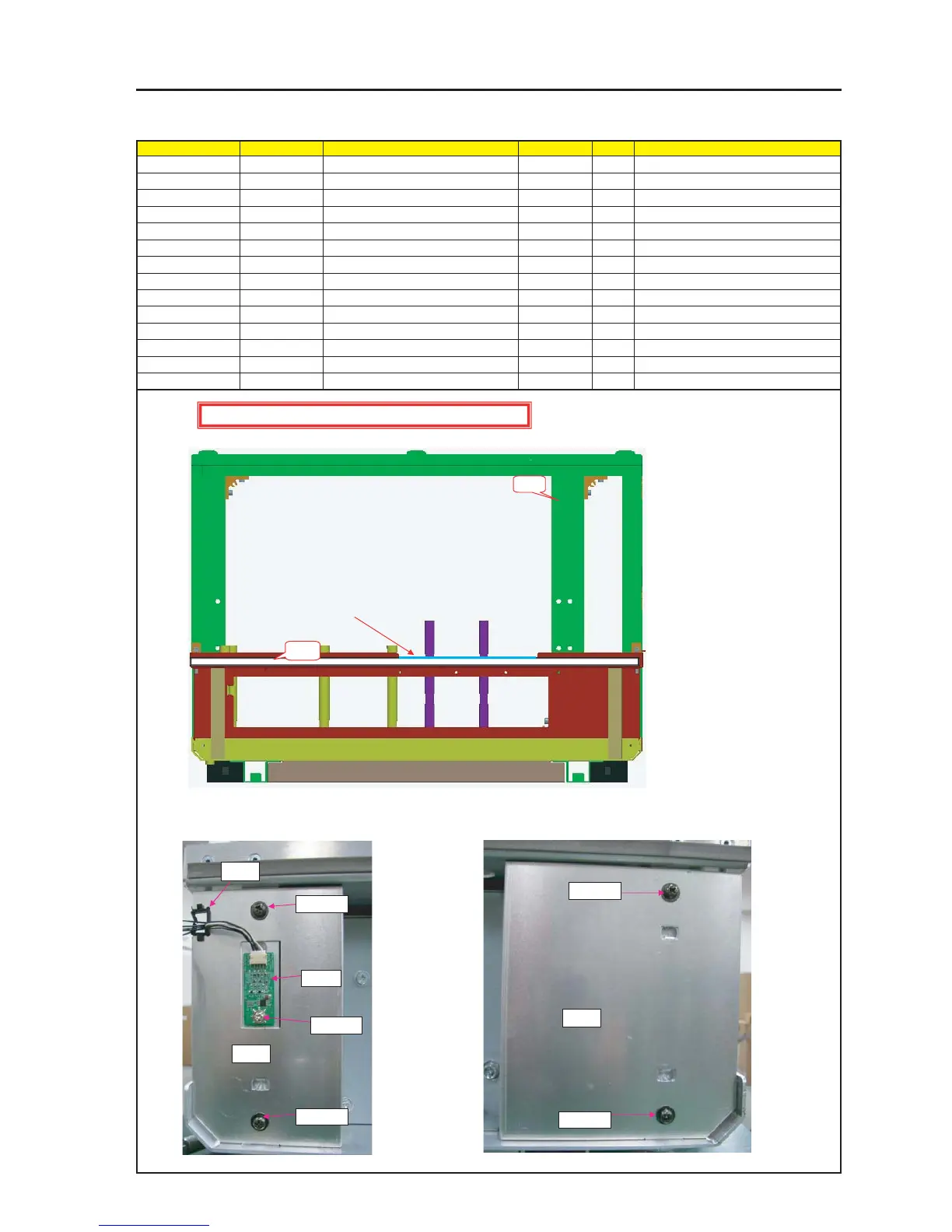

ASSEMBLY DIAGRAM
BALLAST PS3 (2)
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 FRAME ASSY 24HS4261 1
PRT2 GASKET(STG0.5-8) 24C07561 2 680mm
PRT3 PARTITION PLATE(LAMP PS)L 24H61181 1
SRW021 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
PRT4 PARTITION PLATE(LAMP PS)R 24H61191 1
SRW026 PL-CPIMS*4*10*3KF 24V00461 2 Torque check
PRT5 EDGE SADDLE 25281281 1
PWB TSENS PWB ASSY 1
SRW068 SCREW,PL-CPIMS*3*8*3GF 24V00111 1 Torque check
1 GASKET(STG0.5-8) should be 680mm each, and paste it on the FRAME ASSY.
2 After attaching Edge Sadle on Partition Plate(Lamp PS)R, attach it on lower stand (Ballast POWER SUPPLY) of the FLAME ASSY.
3 Attach TSENS PWB ASSY along cutting parts of Partotion Plate(Lamp PS)R, and insert CONNECTOR.
4 Attach Partition Plate(Lamp PS)L on the lower stand (Ballast POWER SUPPLY) of FLAME ASSY.
SRW026
SRW026
PRT5
PWB
SRW068
PRT4
SRW021
SRW021
PRT3
PRT1
PRT2
CAUTION : EMI (Electro Magnetic Interference : radio disturbance)
*Paste PRT2 along the light blue line.
