NEC NC1600C - Liquid Cooler Unit 3 Assembly

9-50
“Confidential, Do Not Duplicate without written authorization from NEC.”

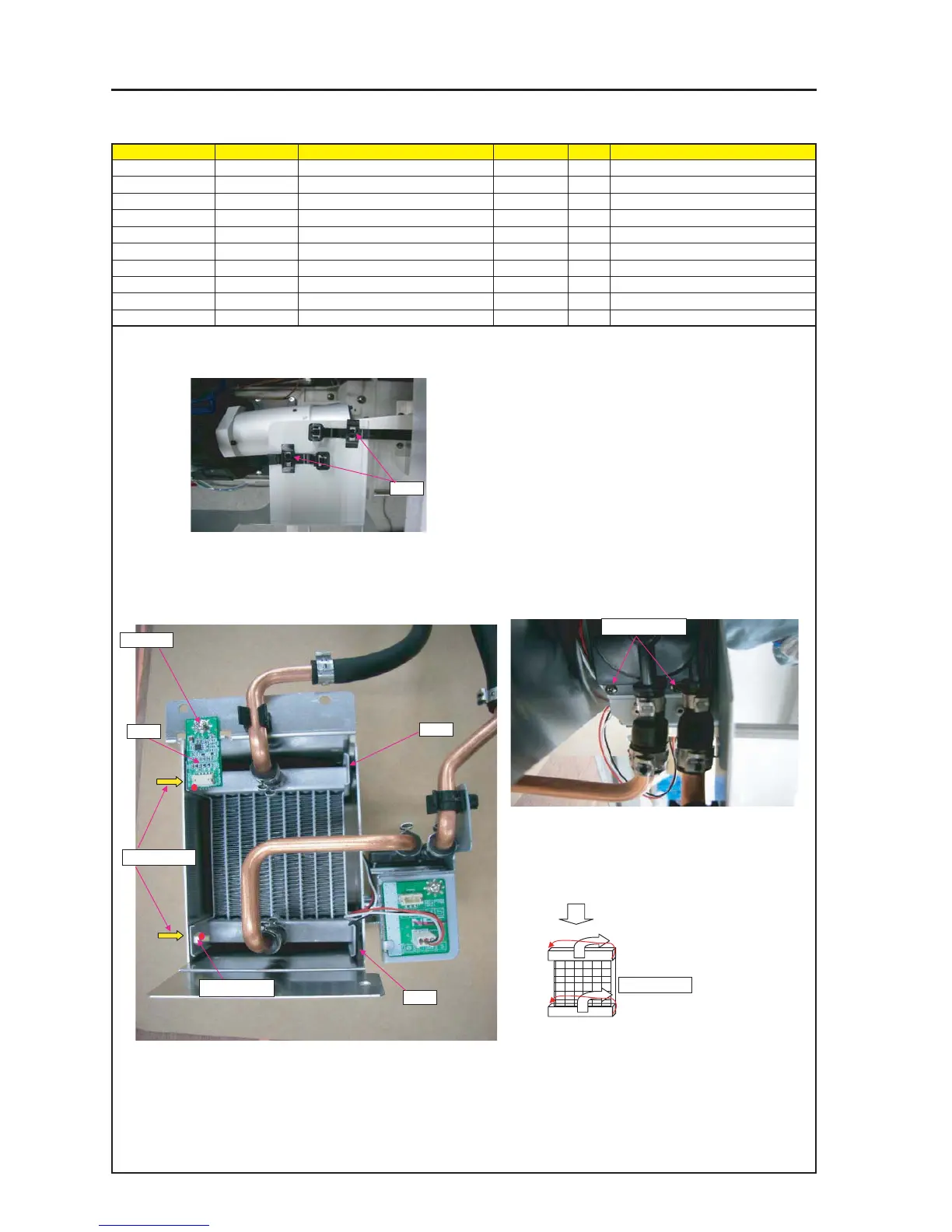

ASSEMBLY DIAGRAM
After fixing SRW004 and SRW003, apply Screw Lock.
PRT1
PRT2
1 Attach STRAP (1K-57) on BASE (TANK) ASSY.
2 Install the pump block of the liquid cooler unit.
3 Stick a cushion material (radiator) to the radiator block of the
liquid cooler unit in such a manner that it is wound around the
radiator block by 3/4 turns.
SRW127
SRW006 X2P
PRT3
SRW003 X2P
SRW004 X2P
PRT2
Radiator block
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 STRAP(1K-57) 24C08381 2
PRT2 CUSHION SHEET(RADIATOR) 24J25581 2
SRW003 SPECIAL SCREW(PPS M4*10) 24N07701 2 Torque check
SRW004 SPECIAL NUT(PPS M4) 24N07711 2
SRW006 CBIMS*2*6*3KF 24V00541 2 Torque check
PRT3 TSES PWB ASSY 1
SRW127 PL-CPIMS3*8*3GF 24V00111 1 Torque check
LIQUID COOLER UNIT 3
