9-70
“Confidential, Do Not Duplicate without written authorization from NEC.”

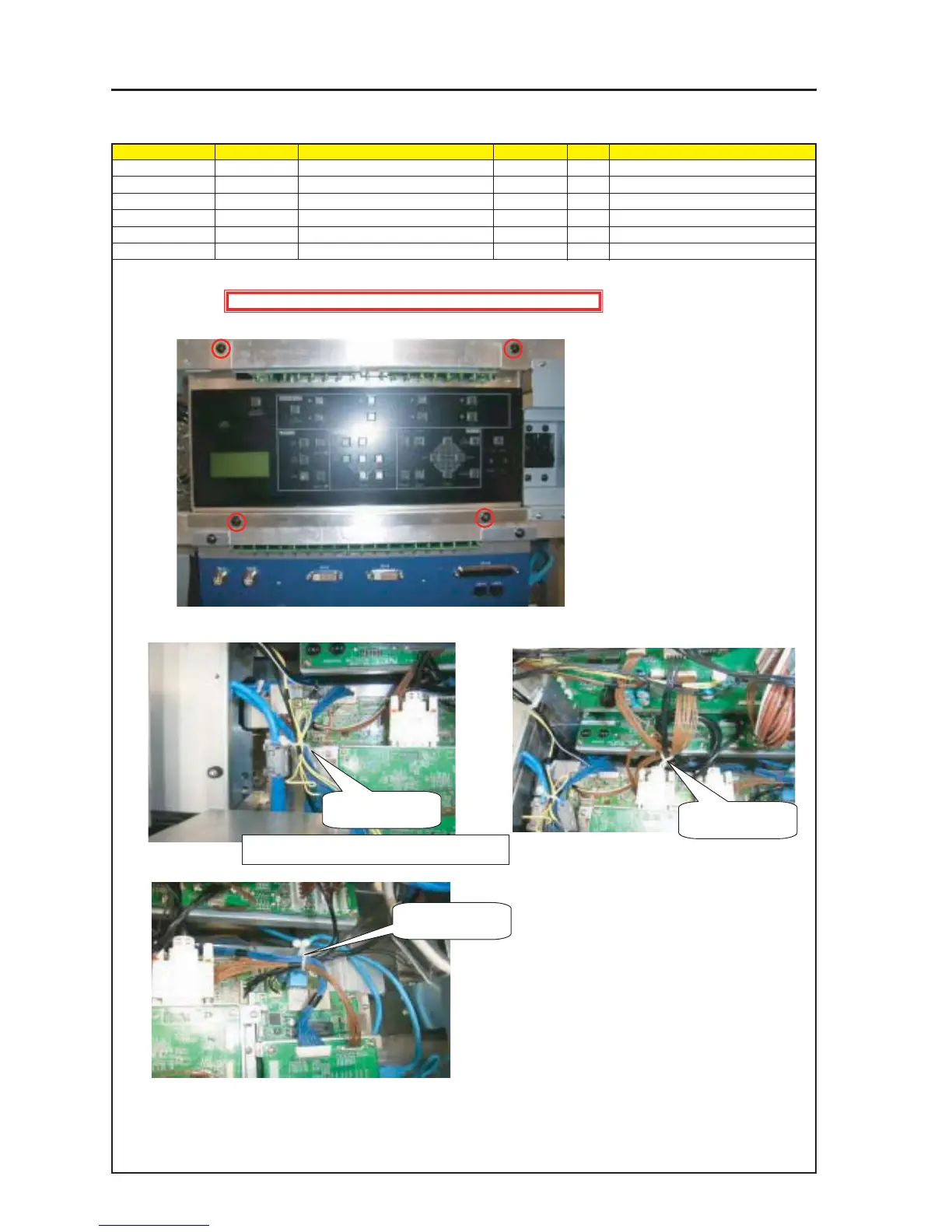

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
SRW062 PL-CPIMS*4*10*3KF 24V00461 4 Torque check
PRT1 OMEGA LOCK(OLS-80) 24C07471 3
CTL3
1
Install the PJKEY SASSY.
Caution : External parts shall be handled carefully so that they are not damaged.
PRT1
GP/CO/ANA/CI
PRT1
CF/CE/SIO
PRT1
IF/TH/DO
2 The surplus portions of the cable (TH) shall be folded
back and bundled.
To Next Page
