9-72
“Confidential, Do Not Duplicate without written authorization from NEC.”

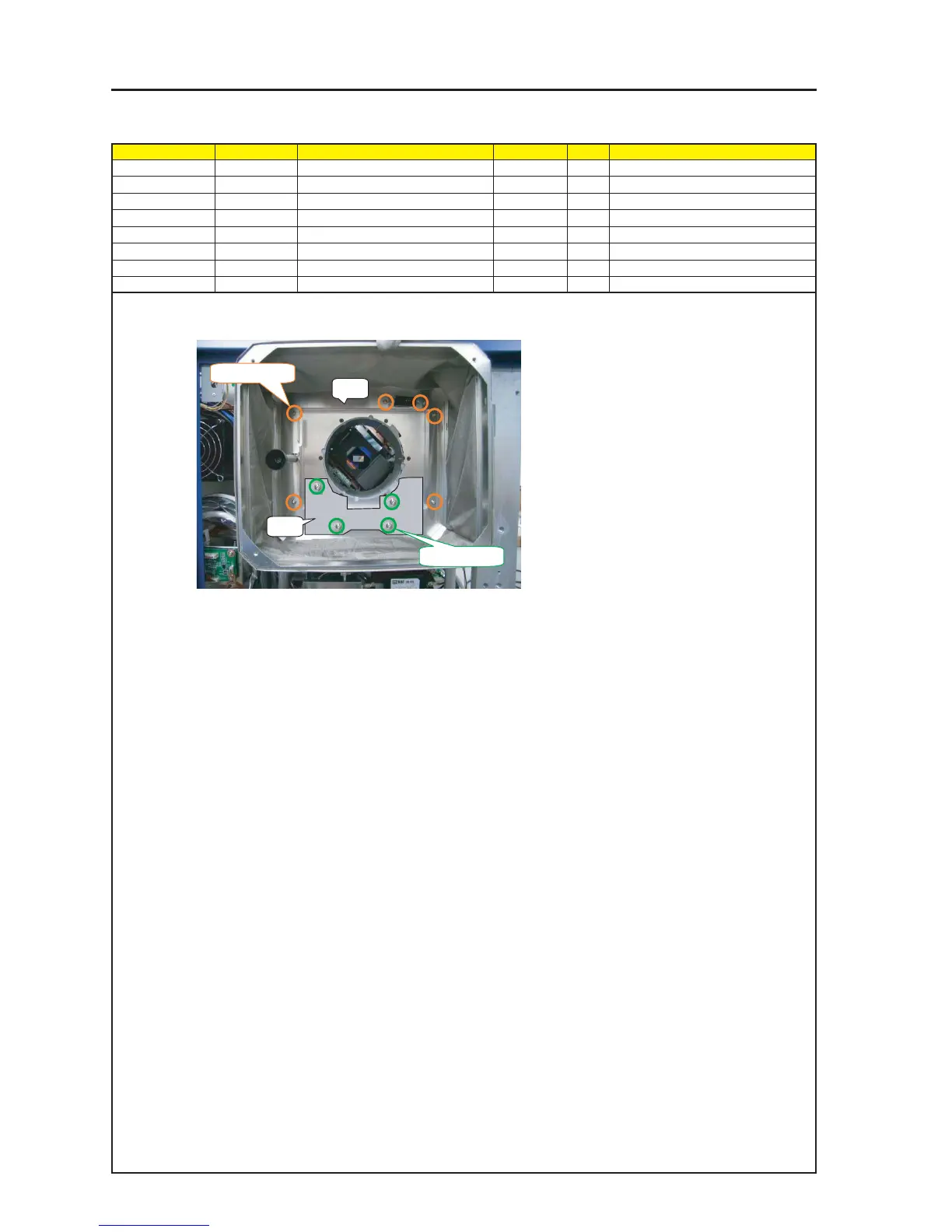

ASSEMBLY DIAGRAM
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 Shield Plate(NC1600C) Sassy 1
SRW066 SCREW,PL-CPIMS*3*8*3GF 24V00111 6 Torque check
PRT2 Cover(Shield) 24H60951 1
SRW067 SCREW,PL-CPIMS*3*8*3GF 24V00111 4 Torque check
MT Rear & Shield (2)
1 After the installation of the Shield Plate (NC1600C) Sassy, install the Cover (Shield).
PRT1
PRT2
SRW066 X 6P
SRW067 X 4P
