9-83
“Confidential, Do Not Duplicate without written authorization from NEC.”

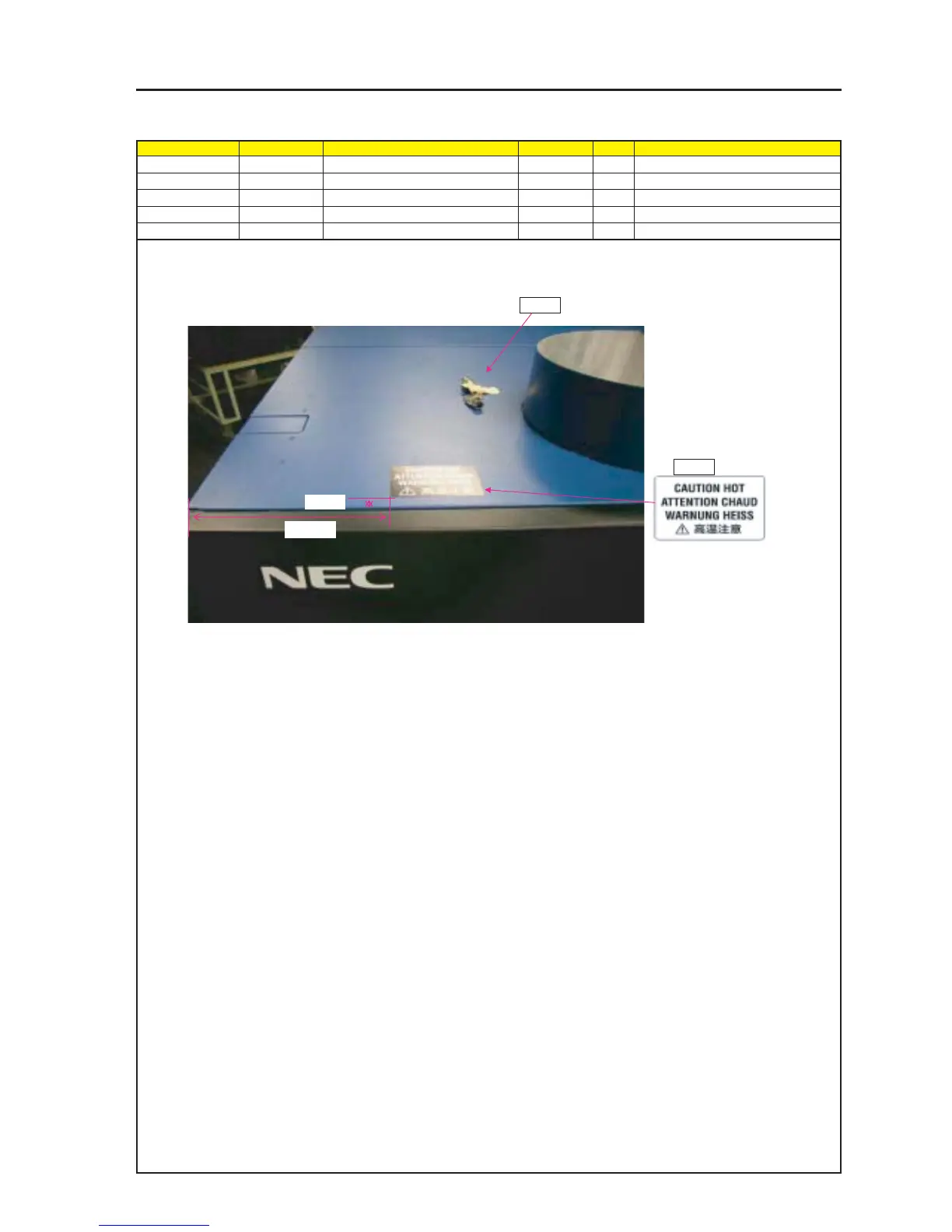

ASSEMBLY DIAGRAM
Top Cover R Sassy
Diagram symbol Circuit symbol Part name Part code Q’ty Remarks
PRT1 TOP COVER R ASSY 24PS5261 1
PRT2 LABEL(HEAT) 24L49921 1
PRT1
PRT2
1 Stick the label (HEAT) to the TOP COVER R ASSY.
10mm
200mm
2 The label (HEAT) shall be stuck 200mm from the edge of the Top Panel R Sassy and
10mm from the edge of the rear side.
In the direction where characters can be read correctly from the rear side
To Next Page
