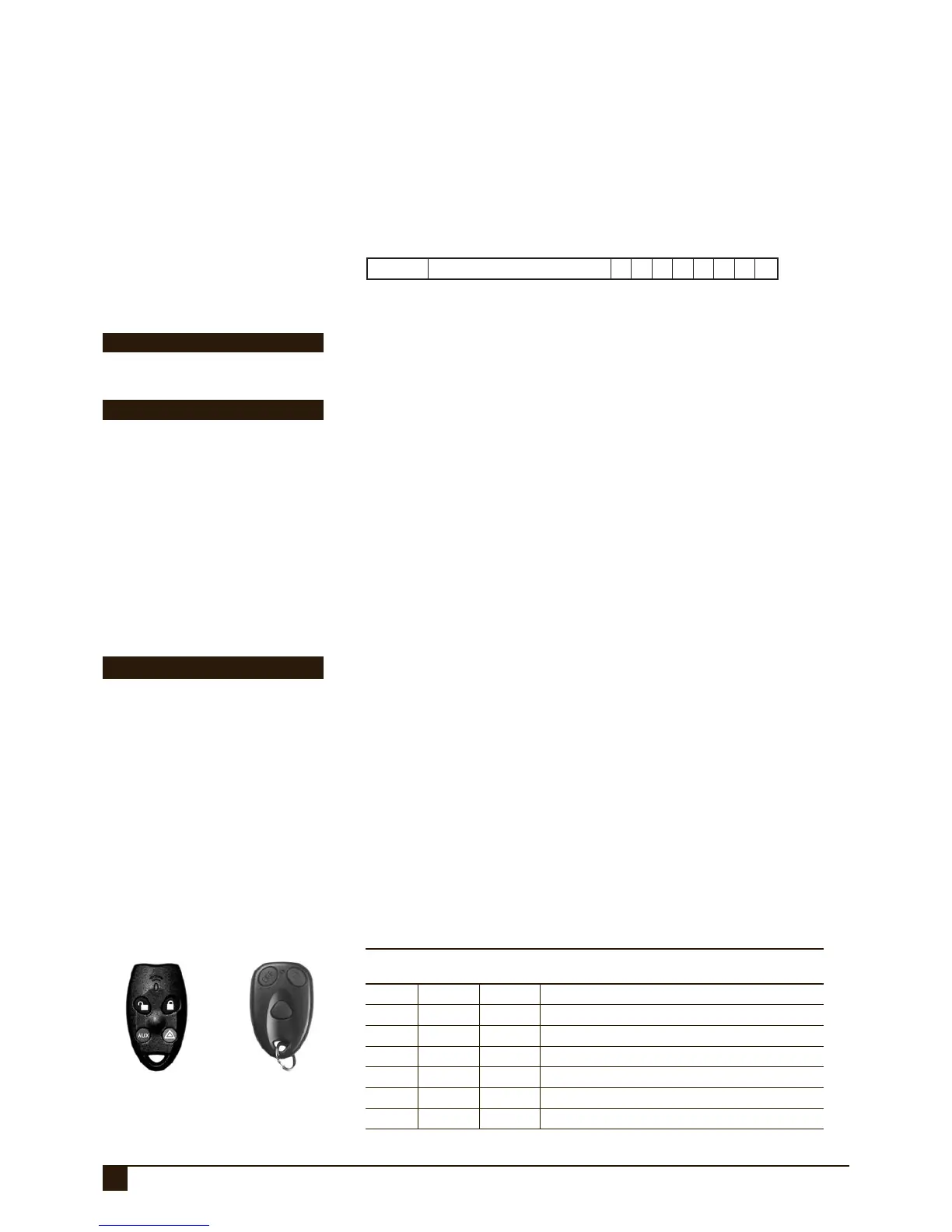

34
PROGRAMMING
NESS D8 (V4.7) CONTROL PANEL – INSTALLER MANUAL
1E 2E 3E 4E 5E 6E 7E 8E
ON = Factory default setting.
3K3 zone resistors
Radio Key Panic toggles AUX1
Radio Key Panic pulses AUX1
Radio Key Arming unsealed warning
24hr zone fire siren sound
4th button Radio Key for AUX1
Quiet chirps on Arm/Disarm
OPTION No DESCRIPTION
P68E Miscellaneous options
SUPERVISION TIME, page 31
P67E
3K3 ZONE RESISTORS
Setting this option ON changes the Zones 1 – 8 monitoring resistor from 2K2 to
3K3. (External Tamper input always uses a 2K2 resistor).
PROGRAMMING SEQUENCE:
P68E 2E toggles the option ON and OFF
P68E 2E OFF: 3K3 zone resistors disabled
P68E 2E ON: 3K3 zone resistors enabled
P68E 2E
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
OFF: No 3K3 zone resistors
NOTES:
• The 3K3 zone resistor option is useful
when installing the panel in a site pre-
wired with 3K3 resistors
• If Zone 8 is converted to a keyswitch
input then a 2K2 monitoring resistor is
always used
RADIO KEY TRIGGERS AUX1
P68E 3E & 4E change the action of the Radio Key Panic button. If either option is
ON, RK3 or RK4 Radio Key Panic will Toggle or Pulse the Aux1 output as per the
table below.
Toggle Mode: Each press on Panic toggles the state of Aux1 (on/off).
Pulse Mode: Each press on Panic pulses Aux1, (momentary on for 2.5 sec).
P68E 7E. If RK4 Radio keys are used, P68E 7E enables the RK4 AUX button
instead of the Panic button to trigger the Aux1 output. The Panic button then
reverts to its normal Panic function.
P68E 7E off: Panic button triggers Aux1 (P68E 3E or 4E must be on).
P68E 7E on: AUX button triggers Aux1 (P68E 3E or 4E must be on).
PROGRAMMING SEQUENCE:
P68E 3E or 4E or 7E toggles each option ON and OFF
P68E 3E, 4E, 7E
PROGRAM MODE LEVEL:
Installer, Remote by PC
FACTORY DEFAULT:
P68E 3E & 4E OFF: Radio Keys do not
trigger Aux1
P68E 7E OFF: Radio Key AUX button does
not trigger Aux1
NOTES:
• This option is useful for triggering external
devices using Radio Key’s Panic button.
E.g., lighting, garage doors
• Warning! The Radio Key Panic function is
disabled when the Panic button is set to
trigger Aux1.
Table: RADIO KEY TO AUX1
P68E
3E 4E 7E
OFF OFF (ON or OFF) AUX1 disabled for use by PANIC or AUX buttons
ON OFF OFF Radio Key PANIC button Toggles AUX1
OFF ON OFF Radio Key PANIC button Pulses AUX1
ON ON OFF Radio Key PANIC button Pulses AUX1
ON OFF ON Radio Key AUX button Toggles AUX1
OFF ON ON Radio Key AUX button Pulses AUX1
ON ON ON Radio Key AUX button Pulses AUX1
Note: Aux1 can be disabled for use by a Radio Key, but other panel options can be programmed to trigger the output.
RK3
100-664
RK4
100-067
