NETGEAR WAC104 User Manual

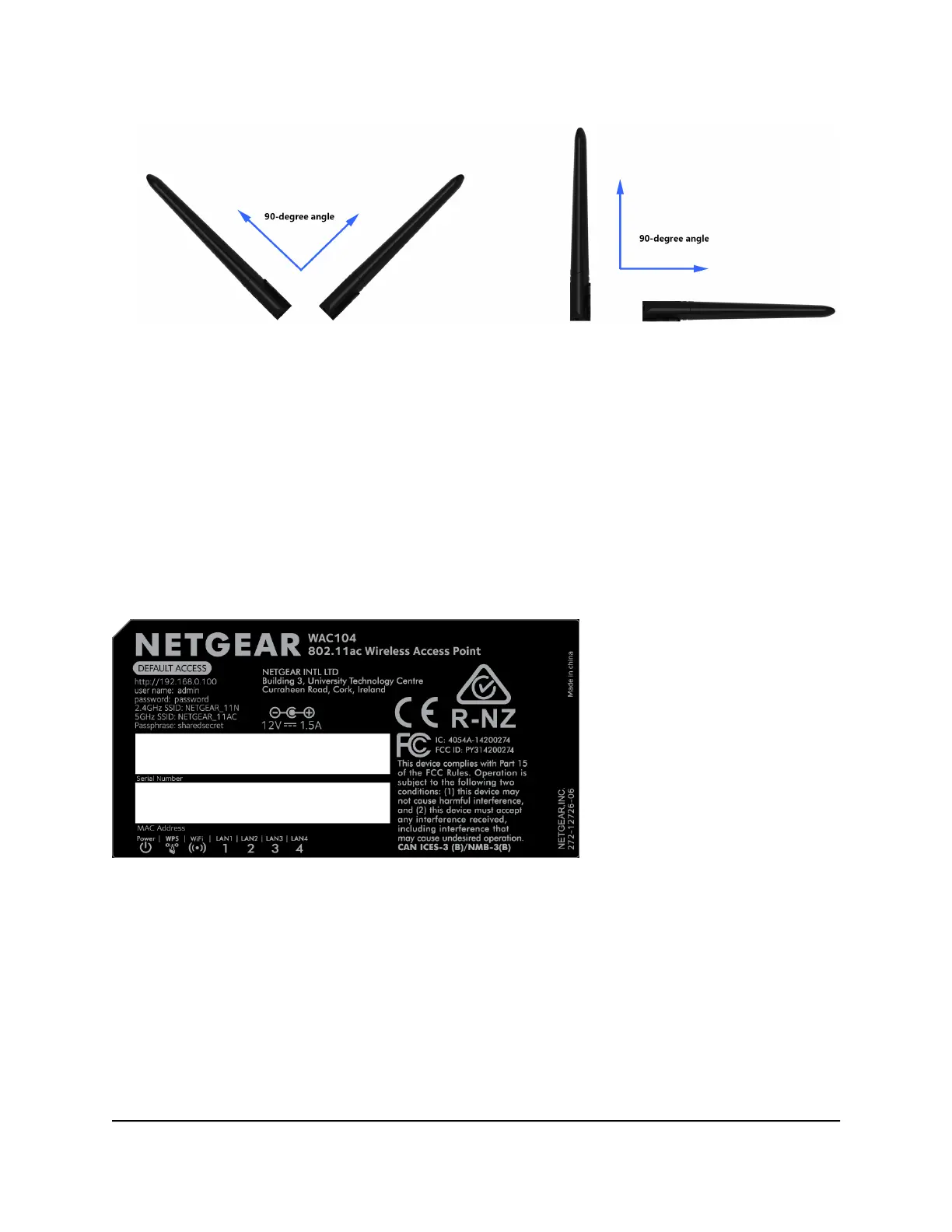

Figure 4. Examples of recommended antenna positions
AP label
The AP label on the bottom panel of the AP shows the default login information, serial
number and MAC address of the AP, and other information. Depending on when you
purchased your AP, the label might also show the default WiFi network names (SSIDs)
and default WiFi passphrase.
The following figure is an example. The label on your AP might look differently.
Figure 5. AP label
If the label does not show the defaults SSIDs and default WiFi passphrase, use the
following information:
•
The default SSID in the 2.4 GHz radio band is NETGEAR_11N with the default WiFi
passphrase sharedsecret.
•
The default SSID in the 5 GHz radio band is NETGEAR_11AC with the default WiFi
passphrase sharedsecret.
User Manual12Hardware Overview of the
Access Point
802.11ac Wireless Access Point Model WAC104

NETGEAR WAC104 Specifications

General

Ethernet WAN	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Number of WLAN connections (max)	128
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	3
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Power source type	AC
Power consumption (typical)	8.1 W
Product type	Tabletop router
Product color	Black
LED indicators	LAN, WPS
USB port	No
Ethernet LAN (RJ-45) ports	4
Storage temperature (T-T)	-120 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE (EN60950)
Mean time between failures (MTBF)	285000 h
Cables included	LAN (RJ-45)
Package depth	192 mm
Package width	247 mm
Package height	98 mm
Package weight	780 g
Harmonized System (HS) code	85176990
Shipping (inner) case width	507 mm
Shipping (inner) case height	270 mm
Shipping (inner) case length	399 mm
Shipping (inner) case net weight	8620 g
Number of layers per pallet (sea)	7 pc(s)
Number of cartons per pallet layer	5 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	181.45 mm
Width	239.65 mm
Height	40.6 mm
Weight	385 g
