4. Select Advanced Setup > IP Settings.

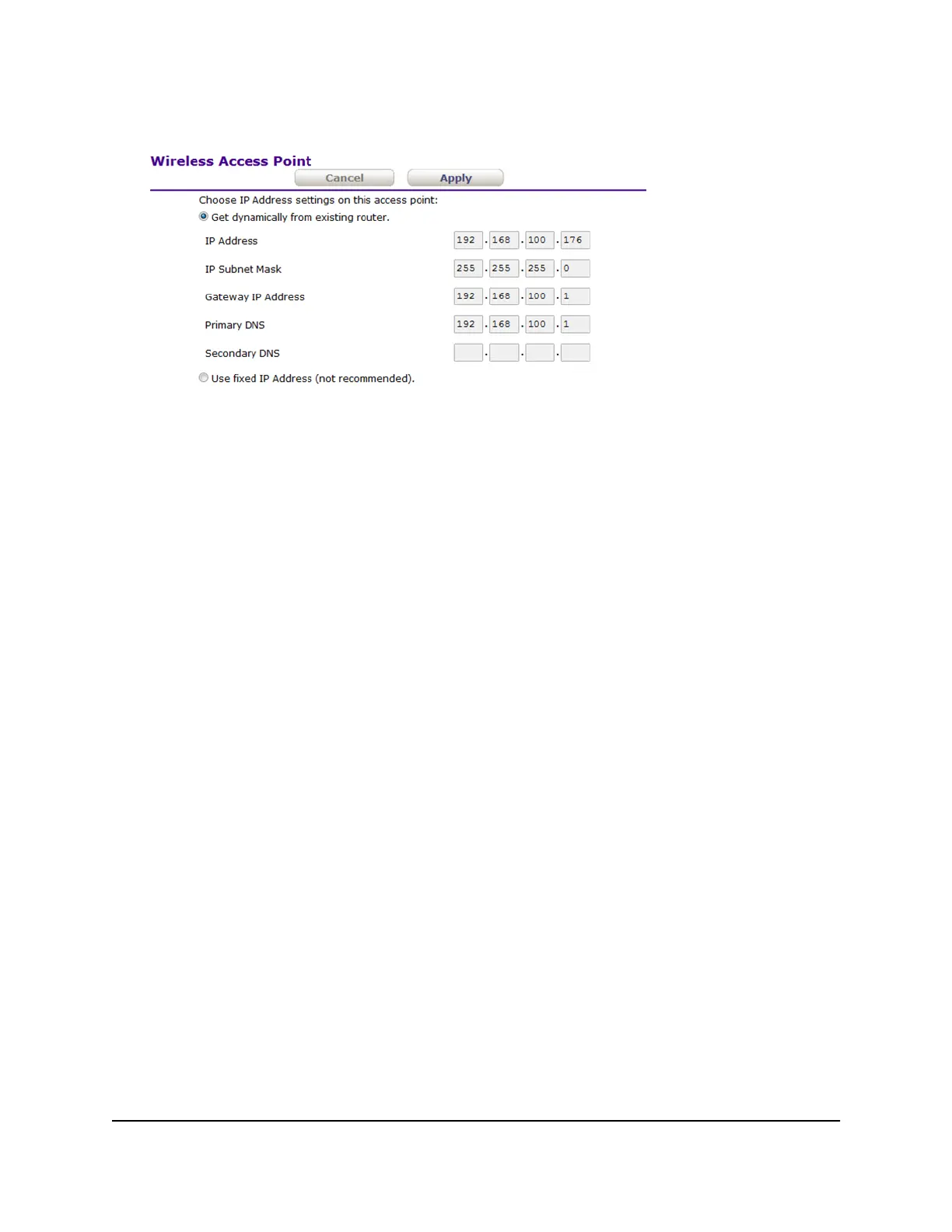

The previous figure shows that the AP’s DHCP client is enabled.
5.
Configure the IP settings by taking one of the following actions:
•
Disable the DHCP client and configure a static IP address by doing the following:
a.
Select the Use fixed IP Address (not recommended) radio button.
b.
Enter the IP address information that you collected in the IP Address, IP
Subnet Mask, Gateway IP Address, Primary DNS, and Secondary DNS
fields.
•
Enable the DHCP client by selecting the Get dynamically from existing router
radio button.
6. Click the Apply button.
Your settings are saved and the AP restarts. After the AP becomes available again,
to log in to the AP local browser UI, you must use either the static IP address that
you configured or the IP address that your router or DHCP server in the network
assigned to the AP.
You can determine that IP address either by accessing the router or DHCP server or
by using an IP network scanner. (Free IP address scanner utilities are available online.)
User Manual58Manage the AP and Monitor the
Traffic
802.11ac Wireless Access Point Model WAC104

NETGEAR WAC104 Specifications

General

Ethernet WAN	-
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Number of WLAN connections (max)	128
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	3
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Power source type	AC
Power consumption (typical)	8.1 W
Product type	Tabletop router
Product color	Black
LED indicators	LAN, WPS
USB port	No
Ethernet LAN (RJ-45) ports	4
Storage temperature (T-T)	-120 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE (EN60950)
Mean time between failures (MTBF)	285000 h
Cables included	LAN (RJ-45)
Package depth	192 mm
Package width	247 mm
Package height	98 mm
Package weight	780 g
Harmonized System (HS) code	85176990
Shipping (inner) case width	507 mm
Shipping (inner) case height	270 mm
Shipping (inner) case length	399 mm
Shipping (inner) case net weight	8620 g
Number of layers per pallet (sea)	7 pc(s)
Number of cartons per pallet layer	5 pc(s)
Quantity per shipping (inner) case	10 pc(s)

Weight and Dimensions

Depth	181.45 mm
Width	239.65 mm
Height	40.6 mm
Weight	385 g
