23 EDH0170FE1010 – 09/98
LDS1000 Controller for Laser Diode Sensors

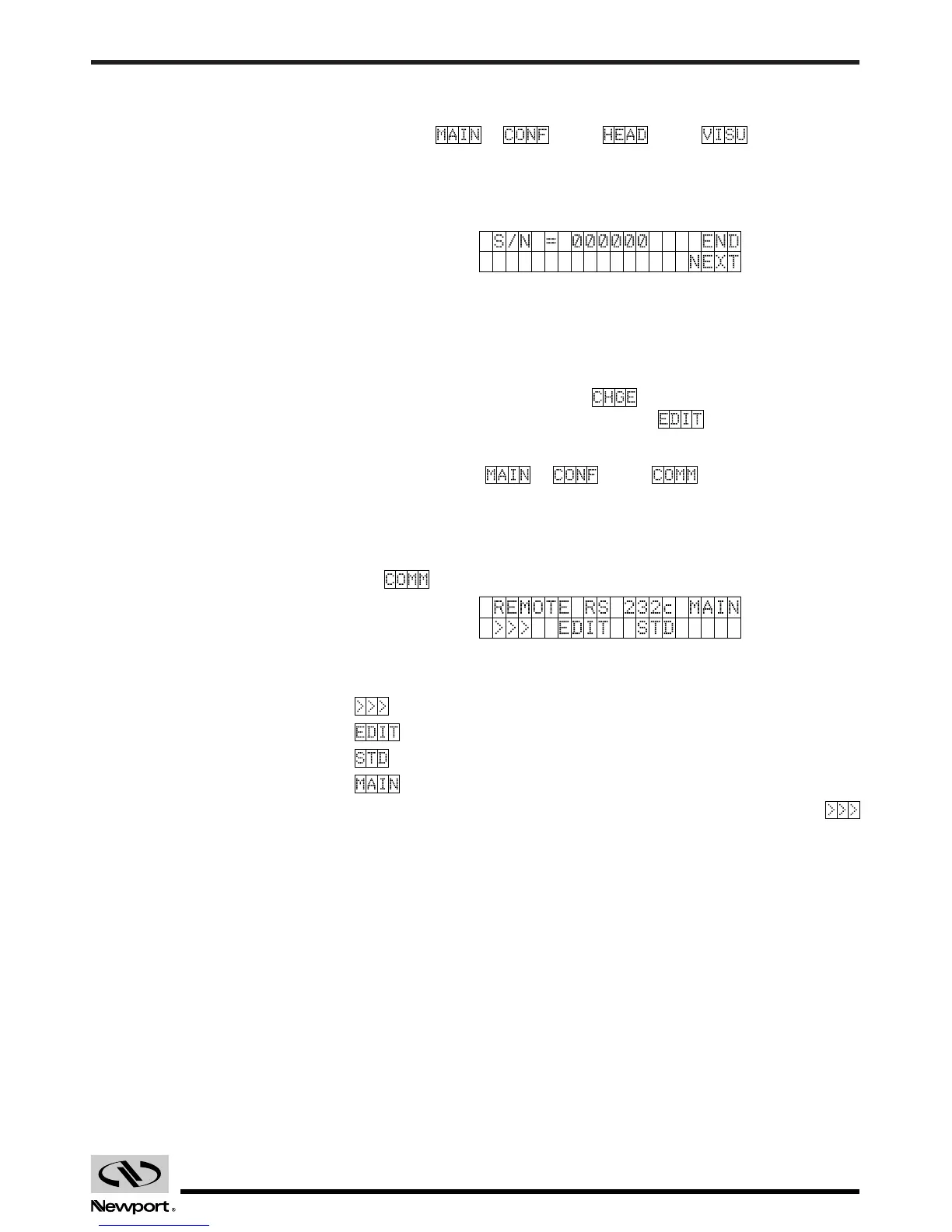

7.4.1.5 Visualization of Current Sensor Parameters
=> (F4) => (F1) => (F2)
You are advised to check that the current sensor really matches the sensor
that is currently connected to the controller. This Visualization mode is
easily accessible and provides the explicit values of the current sensor
parameters.
Check that the series number really matches that of the connected sensor.
For more certainty, compare the values of the parameters to those given in
the calibration certificate supplied with the sensor.
In case of nonconformity, it is necessary to:
•Either find another number of the current sensor (especially if the
series number does not match): Menu.
•Or modify the current sensor parameters: Menu.
7.4.2 Communication Parameter Input
=> (F4) => (F2)
Access to this menu enables the parameters and the choice of communica-
tion mode of the controller to be modified. It is useful to check these values
before connecting to a computer. This must be done before using the ins-
trument in Interface Mode.
The menu makes this selection possible in manual mode
This message indicates that the communication is programmed in RS-232-C.
Access to the following functions is then possible:
(F1)Changing RS-232-C <=> IEEE-488.
(F2)Modification of the parameters of the selected interface.
(F3)Change to default values of the selected interface.
(F5)Return to main menu.
The communication mode can be modified from this menu using the
(F1) key.
