Newport LDS1000 User Manual

EDH0170FE1010 – 09/98 44
LDS1000 Controller for Laser Diode Sensors
10.5.05 RB Read TRIGG Input Status
Use h MNL j RMT j ACT
Syntax RB
Parameter None.
Description Read the status of the TRIGG input. The return value will be
equal to 0 or 1 depending on whether the interface is in high
status or low status.
Response RBnn nn = status of TRIGG input.
Errors D Execution not allowed.
S Communication time-out.
Example RB |Request status of TRIGG input.
RB1 |TRIGG input is in high status.
Related commands RO Read PWOK output status.
TB Read error.
TE Read error code.
10.5.06 RD Set Frozen Display Mode
Use h MNL j RMT j ACT
Syntax RD
Parameter None.
Description Freezes the display on “REMOTE MODE” instruction to remove
response times related to the display refresh.
This is the default display mode for Interface Mode.
Response None.
Error D Execution not allowed.

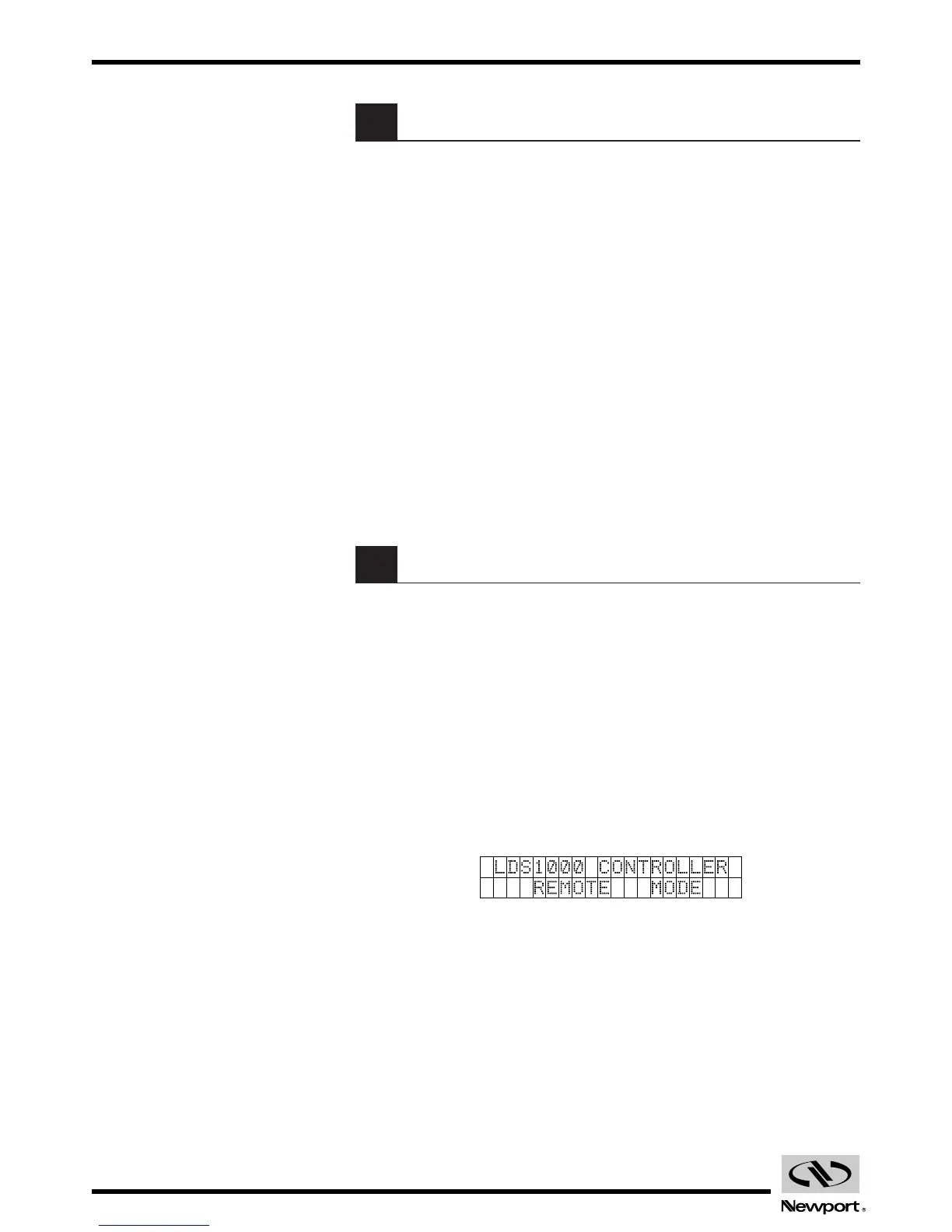

Example RD |Frozen display. The controller displays:
Related commands RE Active display.
TB Read error.
TE Read error code.
