NSA 5130 User Manual
Chapter 3: System Setup

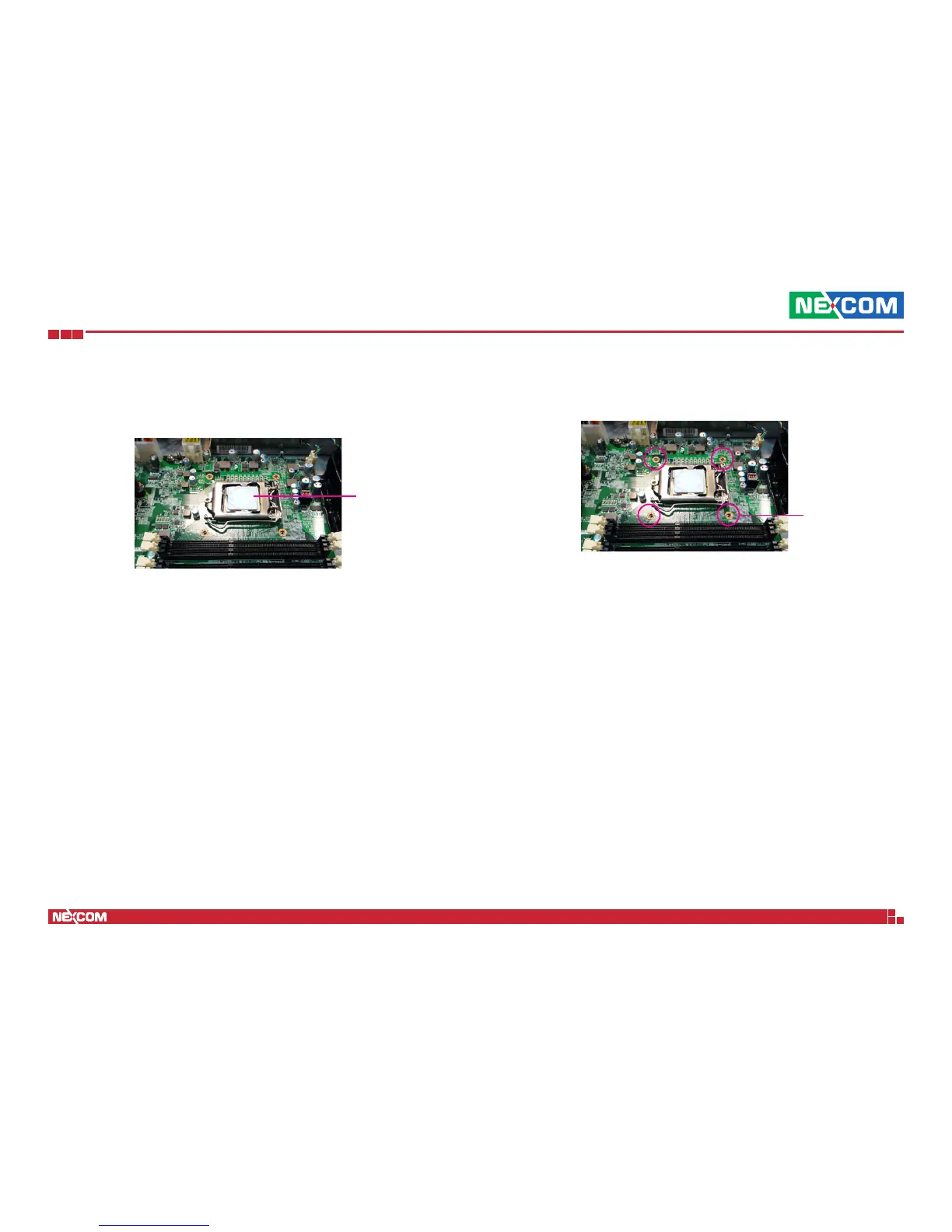

9. Apply thermal compound on top of the CPU. Do not spread the com-
pound all over the surface. When you later place the heat sink on top
of the CPU, the compound will disperse evenly.
Thermal compound
on the CPU
10. Align the mounting screws of the heat sink with the mounting holes
on the board.
Mounting
hole
To Next Page
