NSA 5130 User Manual
Chapter 3: System Setup

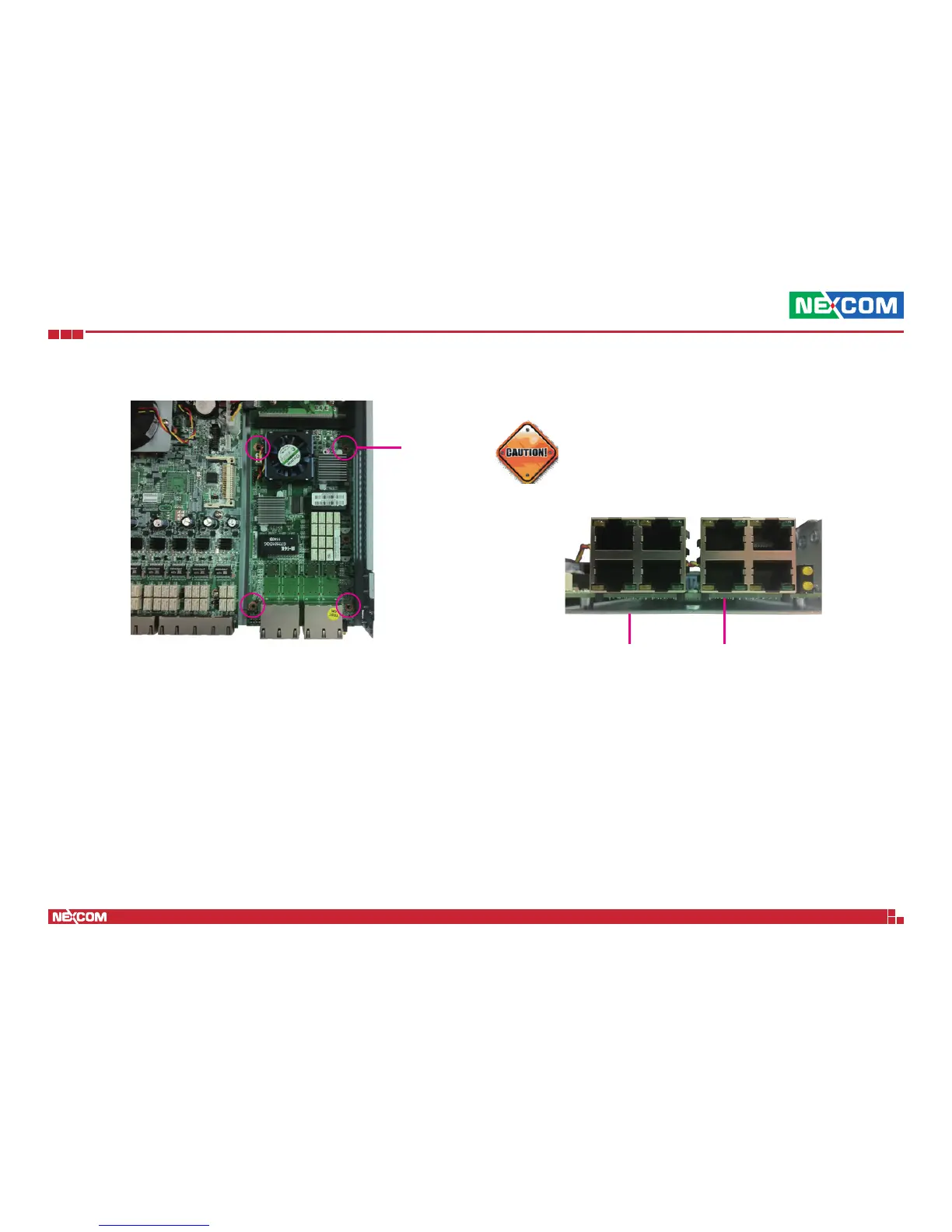

6. Remove the mounting screws on the LAN module. 7. Grab onto the shielded modular PCB jack, and gently pull the LAN
module outwards.
The components on the bottom of the LAN module is mounted
very close to the base plate of the chassis, you may damage the
components if excessive force is used. When removing, please
handle the LAN module carefully by pulling it gently.
Base plate Components on bottom
Mounting
screw
