Nexo NXAMP 4X4 Service Manual

12
NXAMP4x4
REF NO.
PART NO. DESCRIPTION REMARKS
QTY RANK

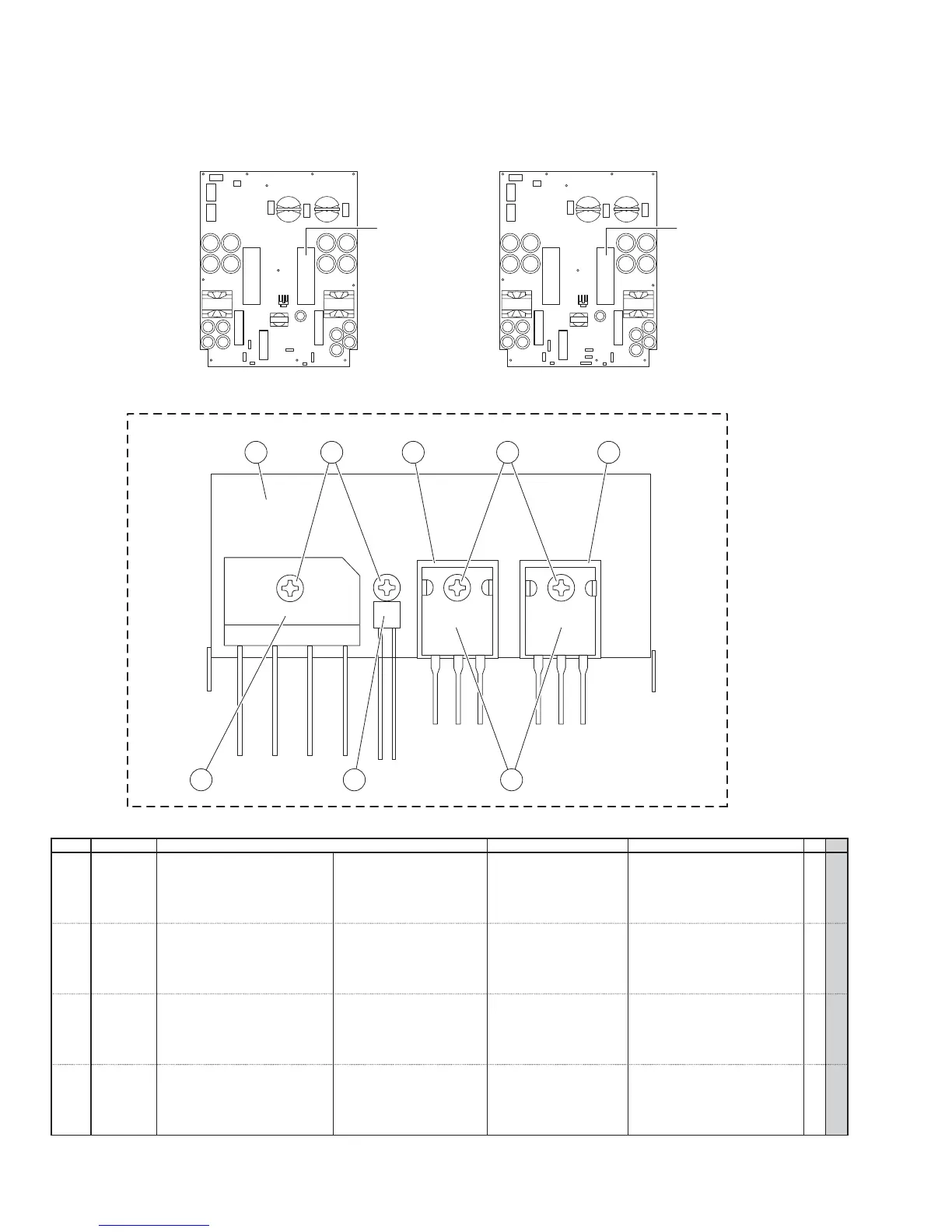

■ HEAT SINK UNIT L100
（ヒートシンクユニット L100）
WK66920
310320
501 503 502
320410 310
WK66920 WK66920
PSANHB Circuit Board PSANHA Circuit Board
-- HEAT SINK UNIT AN-PA-HIGH 100mm (WK66920)
310 -- BIND HEAD SCREW 3x10 MFZN2W3 (WE95290) 4 01
320 -- INSULATION SHEET RSI T=0.07 (WB44860) 2 01
410 -- HEAT SINK PS L100 ASSY (WM69000)
⚠
501 WH268300 DIODE STACK RBV-3006 30A 600V 05
502 WH268401 IGBT IRG4PC60UPBF 212
503 -- THERMISTOR PTMS2331RP716 P7(85-C) (WH32400) 03
