5) Click the [Create] button, and the following JTAG Programmer screen appears. (Fig. 3)
6) Click the [Browse] button and select the desired object file.
Check the [All] at Select region, and select Program/Verify at Select operation.
Note:
This operation is needed when you start up for the first time. Click the [Save] button of save or retrieve JTAG-ISP setup to
save the set up file so that this operation will not be required again.

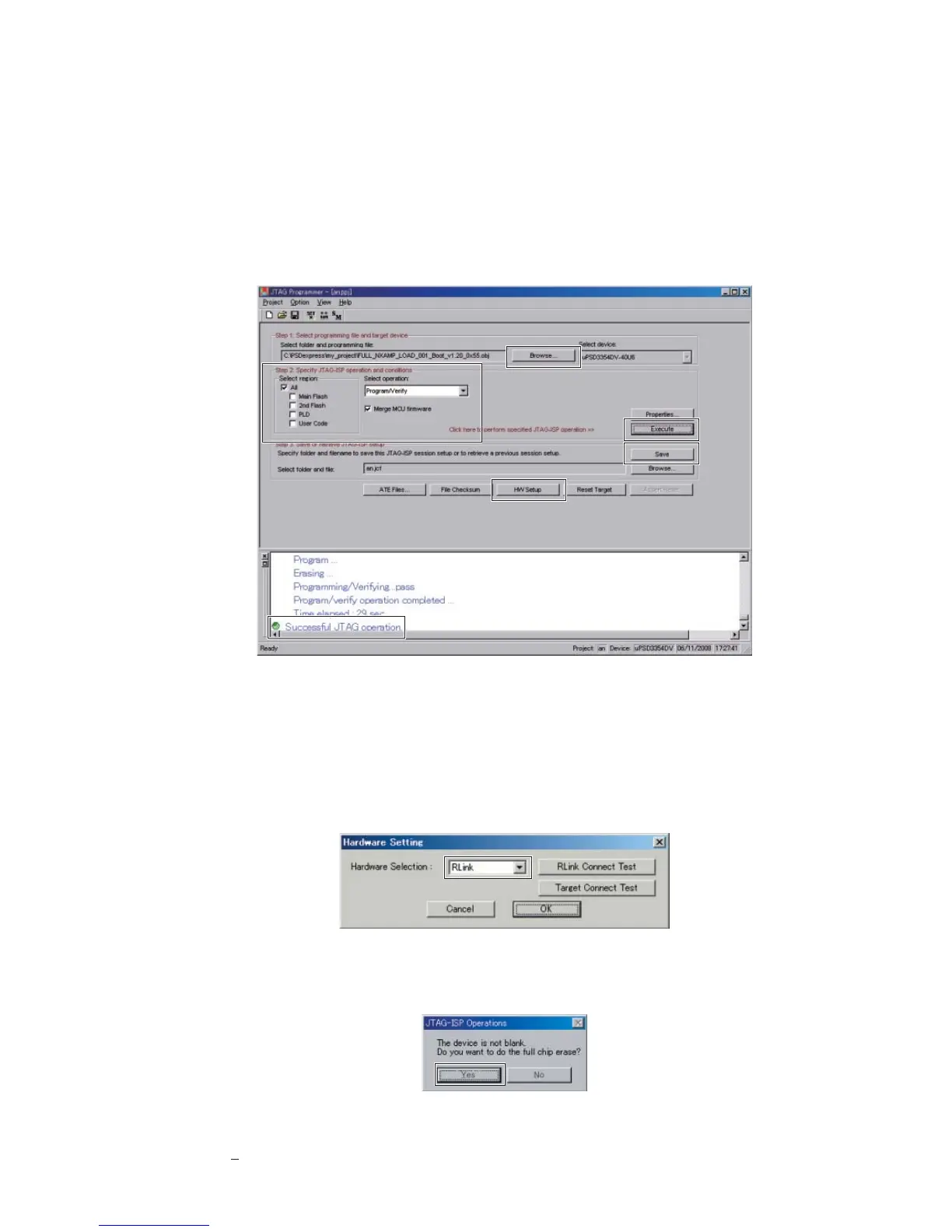

Fig. 3 JTAG Programmer screen
10) Click the [Yes] button to start updating the firmware.
11) Restart the PC after the completion of the updating.
7) Click the [HW Setup] button, and the following hardware setting screen appears. (Fig. 4)
8) Select the RLink at Hardware selection.
Note:
This operation is needed when you start up for the first time. Click the [Save] button of save or retrieve JTAG-ISP setup to
save the set up file so that this operation will not be required again.
Fig. 4 Hardware Setting screen
9) Click the [Execute] button, and the following JTAG-ISP Operations screen appears. (Fig. 5)
Fig. 5 JTAG-ISP Operations screen
