12. Confirmation of Switch LED lighting
With the front panel 2 uninstalled, confirm that the LEDs
of switches (SW003–SW006) light. (Fig. 39)
Procedure
1. Press the power switch of this unit to turn on the
power.
2. Press the switches (SW003–SW006) on the PN-AN
circuit board, and confirm that both LEDs of each
switch light.
12.スイッチ LED 点灯確認
フロントパネル2を取り外した状態で、スイッチ
(SW003 SW006)の LED が点灯することを確認し
ます。(図 39)
手順
1. 本機の電源スイッチを ON にします。
2. PN-AN シートのスイッチSW003 SW006)
を押し、各スイッチの両方の LED が点灯すること
を確認します。

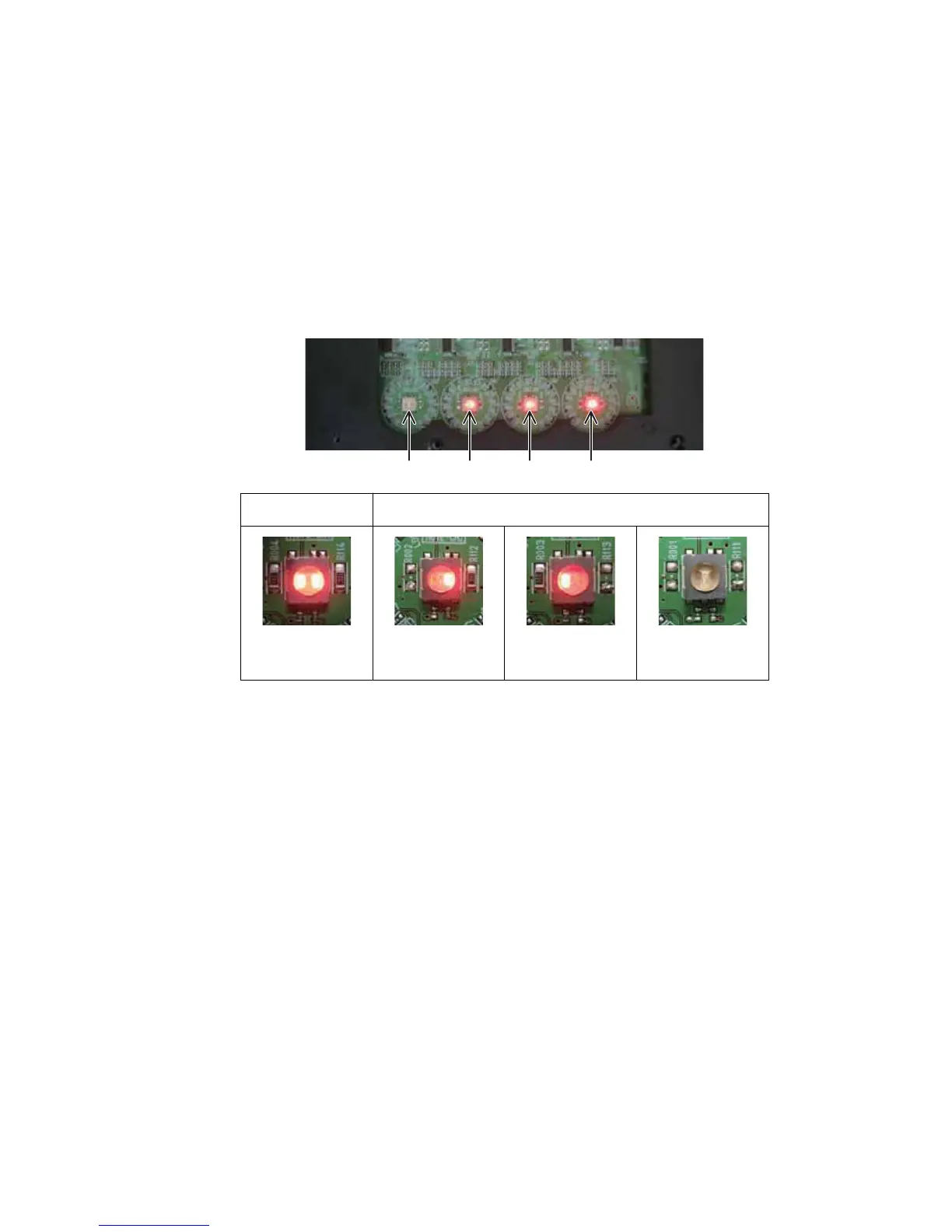

Fig. 39
(図 39)
OK NG
Lighting of both
(両方とも点灯)
Left is turned off
(左が消灯)
Turning off of both
(両方とも消灯)
Right is turned off
(右が消灯)
SW003 SW004 SW005 SW006
NXAMP4x4
23
