Docking14
FIGHTER 1330
FIGHTER 1330 can be installed in several different
ways, some of which are described below.
More docking options can be found at http://www.nibe.
com
General

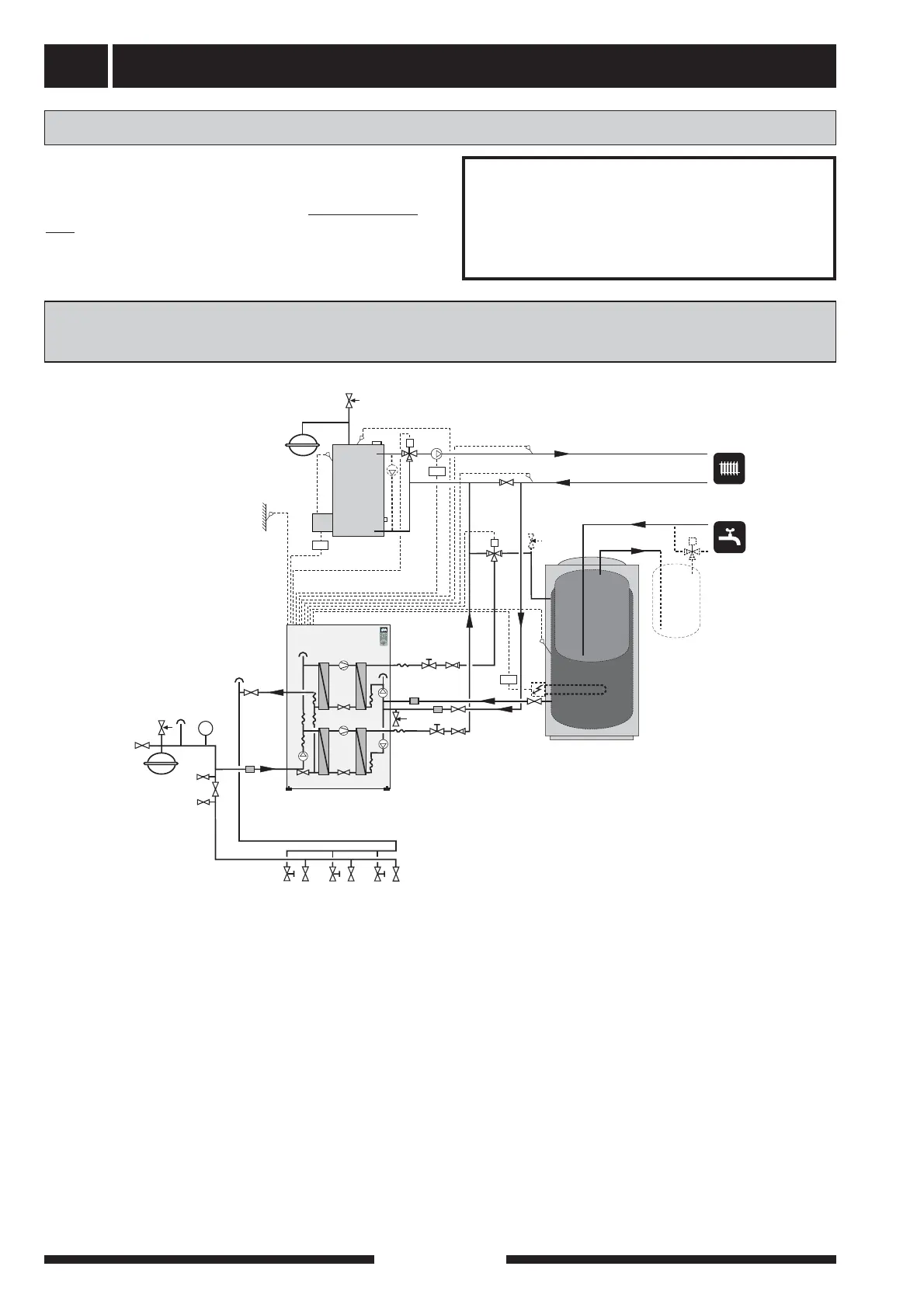

Example FIGHTER 1330 docked with an
oil boiler/pellet boiler and water heater (floating condensing)
B
A
AV
AV
VVG
SÄV
SÄV
VXV
BV
BVRV
RV
RG
FG
Panna
UG
PG
SV-P
VVB / ACK
VVB
HR
HR
SF
SF
SF
P
EXP
AV
KB-ut
KB-in
VBP3
A B I II
50.0 C
Varmvattentemperatur
13.43
1.0
A B
HR
SÄV*
EXP
S
V
CP
AV
T
NOTE!
The safety equipment must be
installed in accordance with current
regulations for all docking options.
FIGHTER 1330 gives priority to hot water charging at
half power (heat pump module B) via a shuttle valve
(RV). When the water heater/accumulator tank (VVB/
ACK) is fully charged the shuttle valve (VXV) switch-
es over to the heating circuit. When there is a heat
requirement, module A starts first. For larger require-
ments, module B takes care of the heating. The boiler
is connected automatically when the energy demand
exceeds the capacity of the heat pump and the shunt
(SV-P) is activated when the temperature on the boiler
sensor (PG) is above 55 °C.
If VVB/ACK is fitted with an immersion heater (IU) and
a junction box (K11) the Extra hot water function can
be used. A by-pass contactor is recommended.
A Heat pump module A
AV Shutoff valve
B Heat pump module B
BV Non-return valve
EXP Expansion tank with
necessary
safety equipment
FG Flow sensor
HR Auxiliary relay /Con-
tactor
with by-pass
KB-in Brine in
KB-out Brine out
PG Boiler sensor
RG Return sensor
RV Control valve
SF Particle filter
SV-P Shunt
SÄV Safety valve
UG Outside temperature
sensor
VBP3 Heating medium
pump 3
VVB Water heater
VVG Hot water sensor
VXV Shuttle valve
VVB/ACK Accumulator with
water heater
* A safety valve must be installed if the VPA is
equipped with an immersion heater.
