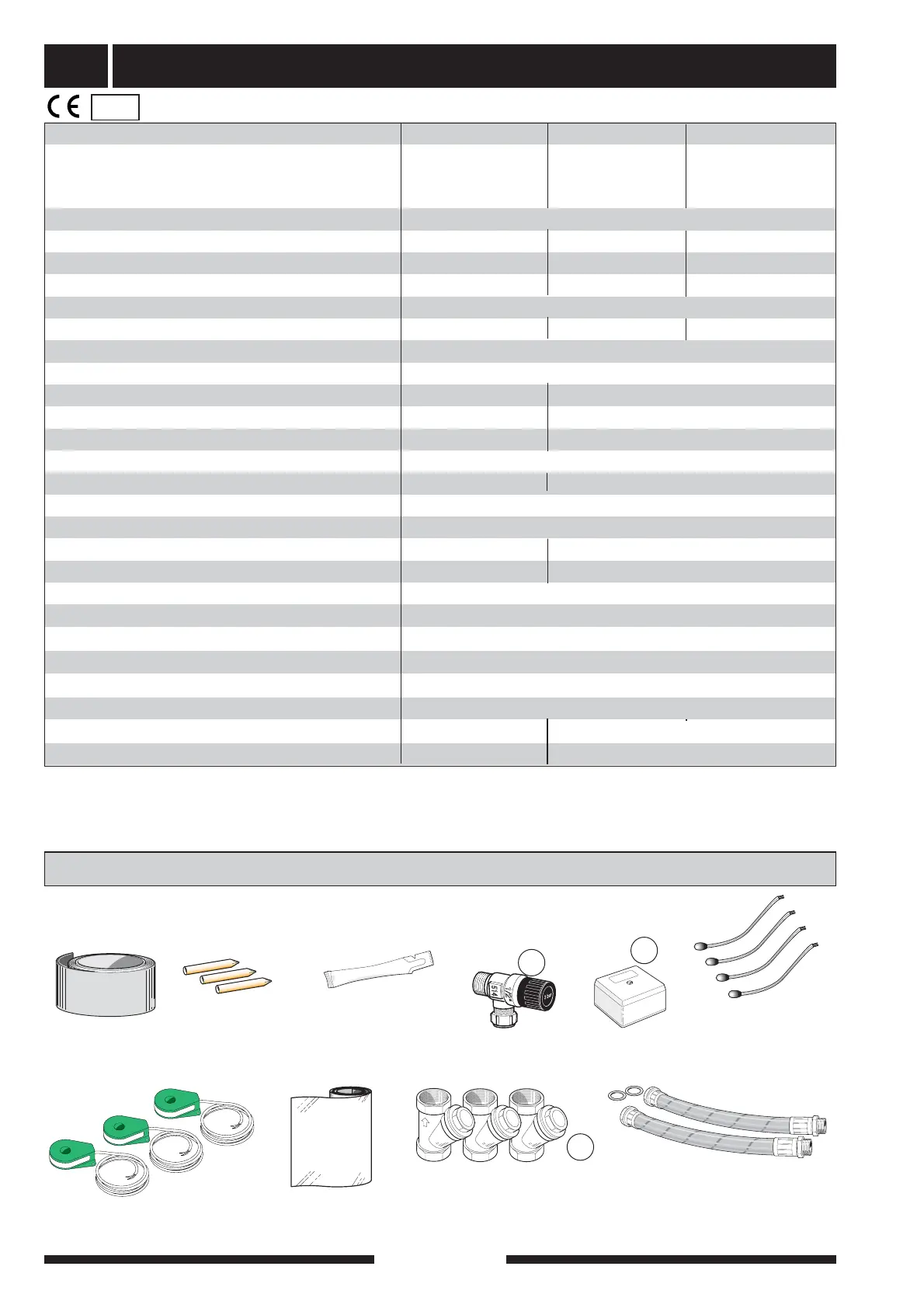

Technical specifications78
FIGHTER 1330
The enclosed kit is located behind the panel by the
upper module.
IP 21
L
E
K
N
I
B
E
A
B
U
t
e
t
e
m
p
e
r
a
t
u
r
g
i
v
a
r
e
O
u
t
d
o
o
r
t
e
m
p
e
r
a
t
u
r
e
s
e
n
s
o
r
A
u
s
s
e
n
t
e
m
p
e
r
a
t
u
r
f
ü
h
l
e
r
A
r
t
i
k
e
l
0
1
8
7
6
4
15
Temperature sensors
with probes
Part no. 418 027
63
Particle filter
1 x R25, Part no. 024 076
1 x R32, Part no. 024 077
1 x R40, Part no. 024 194
Outside sensor
Part no. 018 764
LEK
LEK
Tubes for sensors
Part no. 408 017
Thermal insulat-
ing tape
Part no. 025 910
Aluminium tape
Part no. 025 179
Hoses with seals
(heating medium flow, R25 male/
female)
Part no. 424 088
Enclosed kit
L
E
K
L
E
K
L
E
K
Three current transformers
Part no. 018 569
Safety valve
Part no. 424 091
L
E
K
AJ
Heating pipe paste
Part no. 021 081
52
Operating voltage (V) 3 x 400 + N + PE 50 Hz
Type 22 30 40
Max operating current, compressor (A) 2 x 10 2 x 13,1 2 x 16,6
Power, heating medium pump, single-phase (W) 2 x 170
Delivered/supplied power* at 0/35 °C ** (kW) 23,1/4,8 30,8/6,8 39,0/9,0
Delivered/supplied power* at 0/50 °C ** (kW) 21,6/6,3 29,5/8,9 37,2/11,1
Delivered/supplied power* at 0/45 °C *** (kW) 20,9/6,1 28,8/8,6 36,3/10,9
Starting current (A) 22 30 30
Fuse, HP only (motor characteristic/slow blow) (A) 25 35 35
Power, brine pump, three-phase (W) 370 600 750
Max temperature (flow line/return line)**** ( °C) 65/58
Part no. 065 017 065 013 065 008
* Compressor power only.
** Refers to the brine flow temperature/heat medium flow temperature in accordance with EN 255.
*** Refers to the brine flow temperature/heat medium flow temperature in accordance with EN 14511.
**** The compressor provides up to 65 °C, the remainder is obtained using the additional heat.
***** In accordance to EN 255 (l/s)
Connection, heating medium ext Ø (mm) 2 x 28/35
Brine flow (l/s) 1,30 1,48 1,94
Max pressure brine system (bar) 3
Refrigerant quantity (R407C) (kg) 2 x 2,1 2 x 2,3 2 x 2,5
Availabile pressure for collector system (kPa) 110 115 100
Pressure drop, evaporator (kPa) 12 15 17
Operating temperature range collector system (°C) -5 – +20
Max pressure heating medium (bar) 6
Pressure drop condenser flow***** (kPa) 2,2 2,8 4,3
Break value pressostat HP (bar) 29
Connection brine ext Ø (mm) 42
Heating medium flow***** (l/s) 2 x 0,26 2 x 0,36 2 x 0,45
Break value pressostat LP (bar) 1,5
Difference pressostat HP (bar) -7
Difference pressostat LP (bar) +1,5
Enclosure class IP 21
Weight (kg) 315 338 356
