Setting the heating controls
7
FIGHTER 1330
The heating control system of the FIGHTER 1330 is
controlled by the outside temperature. This means the
flow temperature is regulated in relation to the current
outdoor temperature.
The relation between the outdoor temperature and
flow temperature is set in menu 2.1, Curve slope.
The diagram is based on the dimensioned outdoor
temperature in the area and the dimensioned supply
temperature of the heating system. When these two
values meet, the heating control’s curve slope can be
read.
The Heating curve offset knob is then set on the Mas-
ter unit. A suitable value for underfloor heating is -1
and for a radiator system -2.
30
40
50
60
70
°C
FRAMLEDNINGSTEMPERATUR
- 40 °C
UTETEMPERATUR
- 10
0
10
- 20 - 30
15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
VÄRMEKURVA
- 5
+ 5
FÖRSKJUTNING
VÄRMEKURVA (0)
15 14 13 12 11 10
9
8
7
6
5
4
3
2
1
- 40 °C
UTETEMPERATUR
- 10
0
10
- 5
+ 5
30
40
50
60
70
°C
FRAMLEDNINGSTEMPERATUR
- 20 - 30
FÖRSKJUTNING
VÄRMEKURVA (-2)
VÄRMEKURVA
1514 13 12 11 10
8
7
6
5
4
3
2
1
- 40 °C
UTETEMPERATUR
- 10
0
10
- 5
+ 5
30
40
50
60
70
°C
FRAMLEDNINGSTEMPERATUR
- 20 - 30
FÖRSKJUTNING
VÄRMEKURVA (+2)
9
VÄRMEKURVA

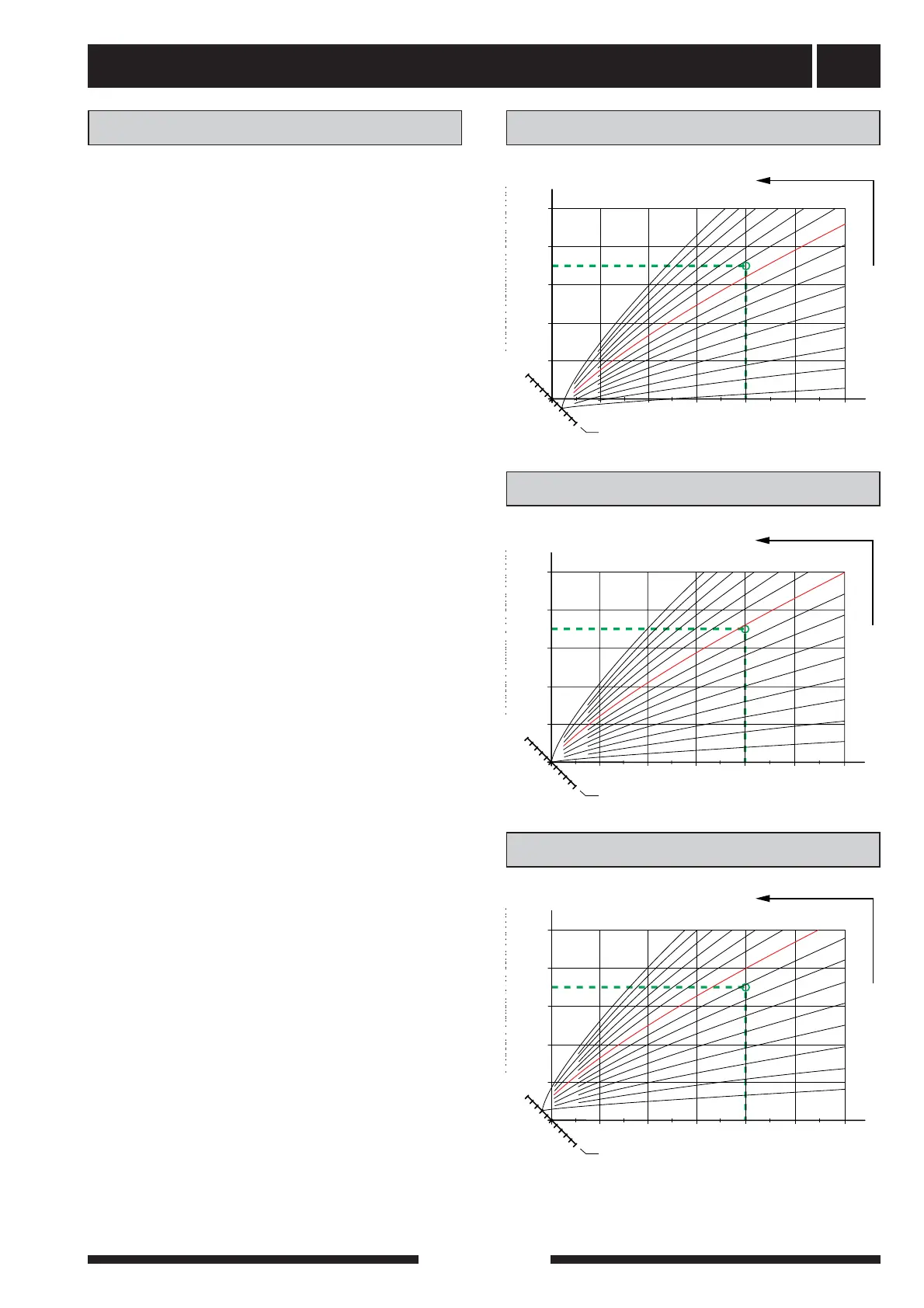

Offset heating curve 0
Offset heating curve -2Setting using diagrams
Offset heating curve +2
HEATING CURVE
HEATING CURVE
HEATING CURVE
OFFSET HEATING
CURVE
OFFSET HEATING
CURVE
SUPPLY TEMPERATURESUPPLY TEMPERATURESUPPLY TEMPERATURE
OUTSIDE TEMPERA-
TURE
OUTSIDE TEMPERA-
TURE
OUTSIDE TEMPERA-
TURE
OFFSET HEATING
CURVE
