Setting the heating controls
23
For the Installer
FIGHTER 360P
FIGHTER 360P is equipped with outdoor temperature
controlled automatic controls. This means the supply
temperature is regulated in relation to the current out-
door temperature.

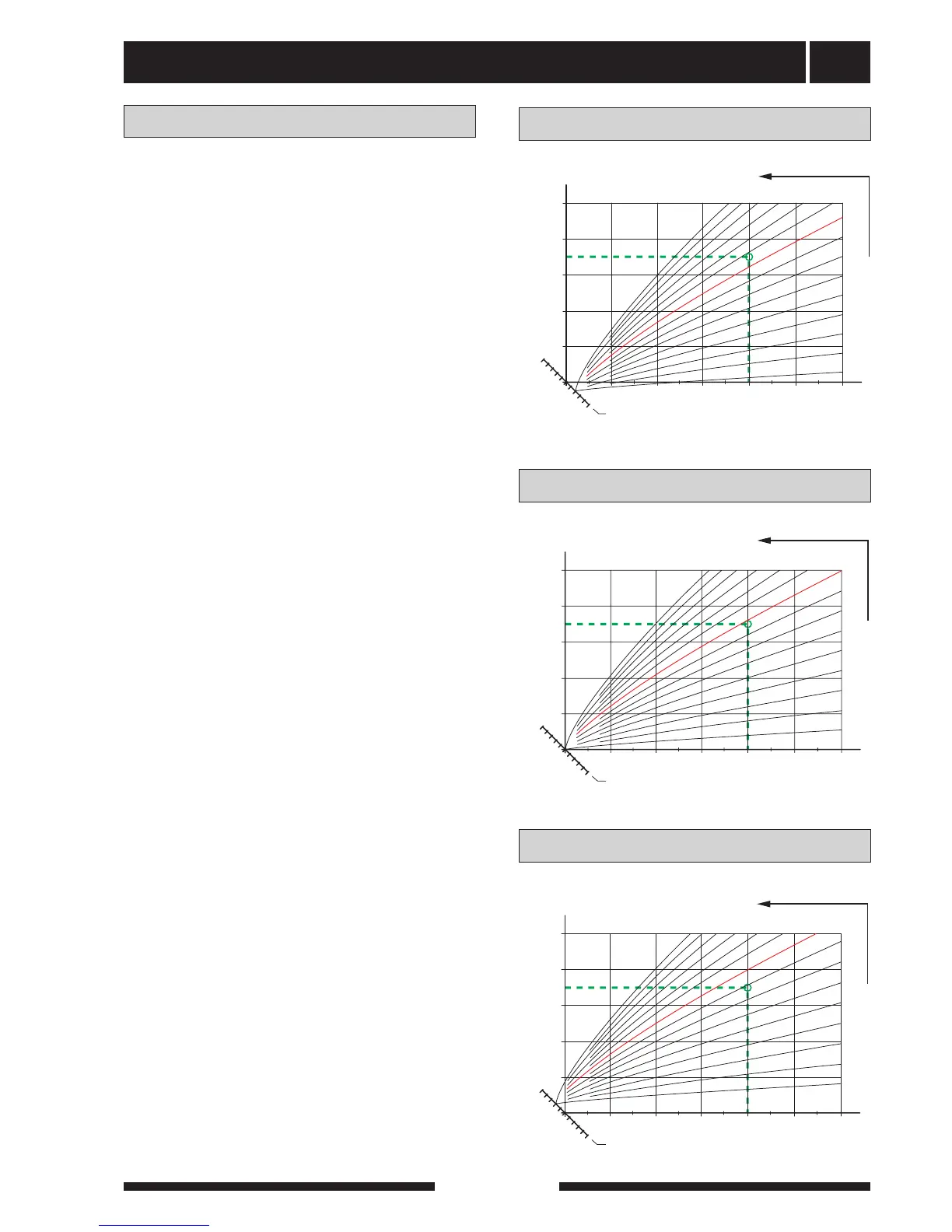

The diagram is based on the dimensioned outdoor
temperature in the area and the dimensioned supply
temperature of the heating system. When these two
values meet, the heating control’s curve slope can be
read. This is set under menu 2.1, Heating curve.
A suitable value is set using the knob on the front
panel, Offset heating curve (38).
A suitable value for
floor heating is -1 and for radiator systems -2.
