Nice Robus RBS400 - Wiring Diagram and Description of Connections; Wiring Diagram; Description of Connections

16 – ENGLISH
4.3 WIRING DIAGRAM AND DESCRIPTION OF CONNECTIONS

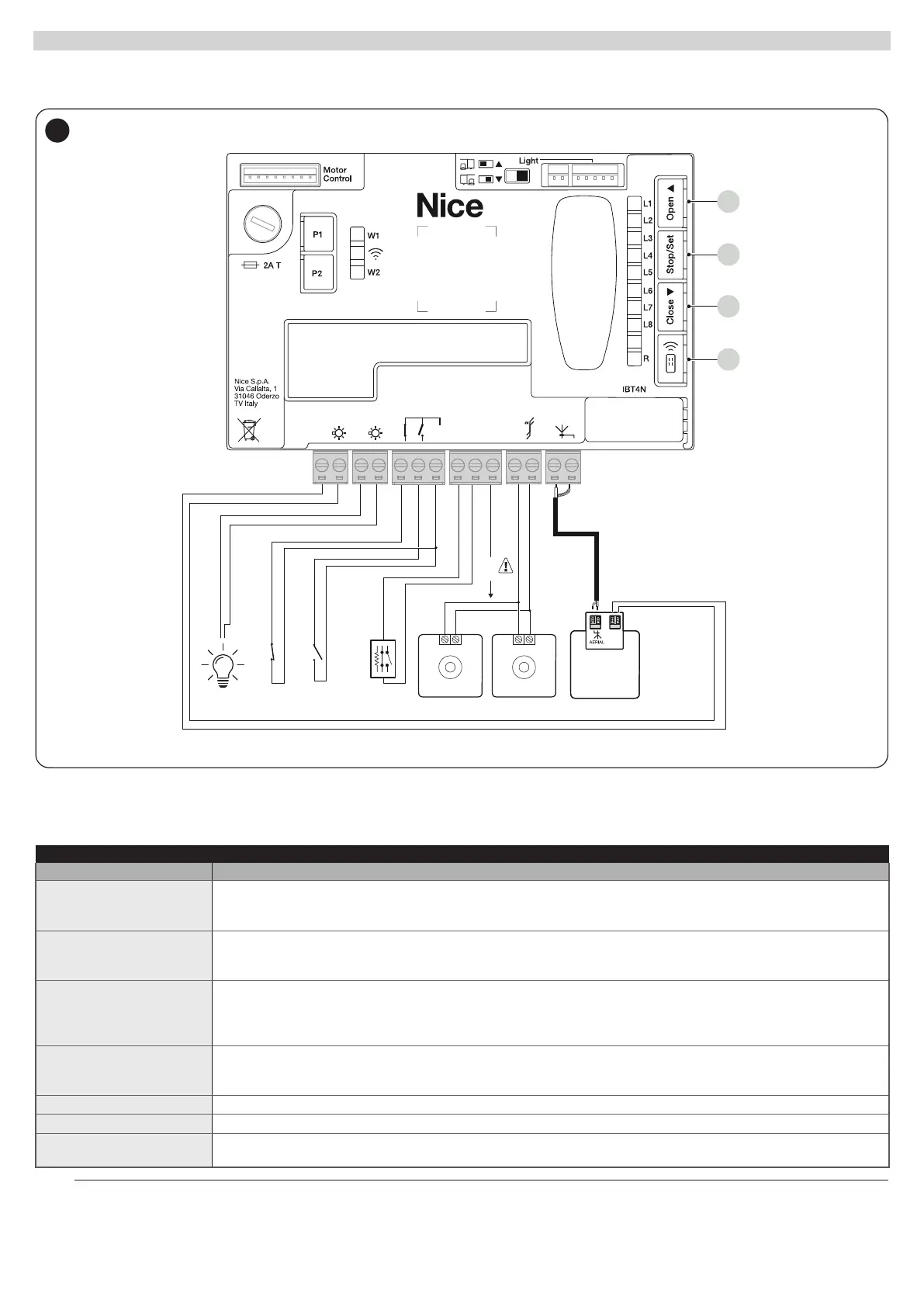

4.3.1 WIRING DIAGRAM
OGI
TX
BluebusBluebus
RX
NC
STOP
NO
NC
8K2
SBS
NO
FLASH
+ 12V
24V
+ -
12V OSE Bluebus Aerial GND Stop Flash Photo OGI SbS
ABCD
*
33
4.3.2 DESCRIPTION OF CONNECTIONS
Table 5
ELECTRICAL CONNECTIONS
Terminals Description
FLASH
(output limited to 10 W – 24
V)
This output is programmed by default to command a Warning light. The output can be programmed through all
compatible interfaces (refer to the “PROGRAMMING THE CONTROL UNIT” chapter). The output conguration modes
are listed in “Table 42”.
OGI
(output limited to 10 W – 24
V)
This output is programmed by default to command the Open Gate Indicator. The output can be also programmed using
the control unit keys (refer to the “PROGRAMMING THE CONTROL UNIT” chapter). The output conguration modes are
listed in “Table 43”.
BLUEBUS
This terminal can be used to connect compatible devices, which are all connected in parallel with only two wires carrying
both the electric power and communication signals.
For further information on the BlueBUS, refer to the “Addressing of devices connected with the BlueBUS system”
paragraph.
STOP
Input for devices that block or, if necessary, stop the manoeuvre under way. With suitable arrangements, “Normally Closed”
or “Normally Open” contacts, or xed resistor or optical devices must be connected to the input (refer to the “STOP input”
paragraph).
SbS Input for devices that control the movement in Step-by-Step mode; it is necessary to connect “Normally Open” contacts.
PHOTO Input for safety devices: it is possible to connect "Normally Closed" contacts to this input.
ANTENNA
Antenna connection input for radio receiver; the antenna is incorporated in the warning light; alternatively, an external
antenna can be used.
a
Warning: 12 V only to connect opto electronic safety-edge (OSE) (max 15 mA)
