ENGLISH – 5
PRODUCT DESCRIPTION
2
2 PRODUCT DESCRIPTION
ROBUS is a range of irreversible electromechanical gearmotors designed for automating sliding gates.
They are equipped with an electronic control unit and an “SM”-type snap-on connector for OXI or OXIBD receivers (refer to the “Connecting an SM-
type radio receiver (optional accessory)” paragraph).
Electrical connections to external devices are simplied thanks to the use of the “BlueBus”, a technique that allows for connecting multiple devices with
only 2 wires.
ROBUS works with electricity. In the event of a power outage, it is possible to unlock the device using a suitable key and manually move the gate or use
the optional PS124 back-up battery accessory that allows for completing certain manoeuvres even when there is no mains power.
a
All uses other than that described herein and use in environmental conditions other than those indicated in this manual are
considered improper and forbidden!
Table 1
COMPARISON OF BASIC CHARACTERISTICS OF ROBUS GEARMOTORS
ROBUS 400 ROBUS 600 ROBUS 600 HS
Gate leaf limit (m) 8 8 8
Weight limit (kg) 400 600 600
Power supply (V)
230 (RB400)
120 (RB400/V1)
250 (RB400/AU01)
230 (RB600)
120 (RB600/V1)
250 (RB600/AU01)
230 (RB600HS)
120 (RB600HS/V1)
250 (RB600HS/AU01)
Power draw (A) 1,1 2,1 3,1
Power (W) 250 450 450
Speed (m/s) 0,34 0,34 0,44
Start peak torque (Nm)
corresponding to a force (N)
9.3
310
9,3
310
9,3
310
Rated torque (Nm)
corresponding to a force (N)
3,6
120
9
300
5,9
196
Cycles (cycles/hour)
- gate leaf length up to 4 m
- gate leaf length up to 8 m
35
20
40
20
40
20
Protection rating (IP) 44 44 44
Ambient operating temperature (°C) -20...+55 -20...+55 -20...+55
Dimensions (mm) 340 x 220 x 303 h 340 x 220 x 303 h 340 x 220 x 303 h
Weight (kg) 11,2 11,2 11,2
Control unit MCU1 MCU1 MCU4
2.1 LIST OF CONSTITUENT PARTS

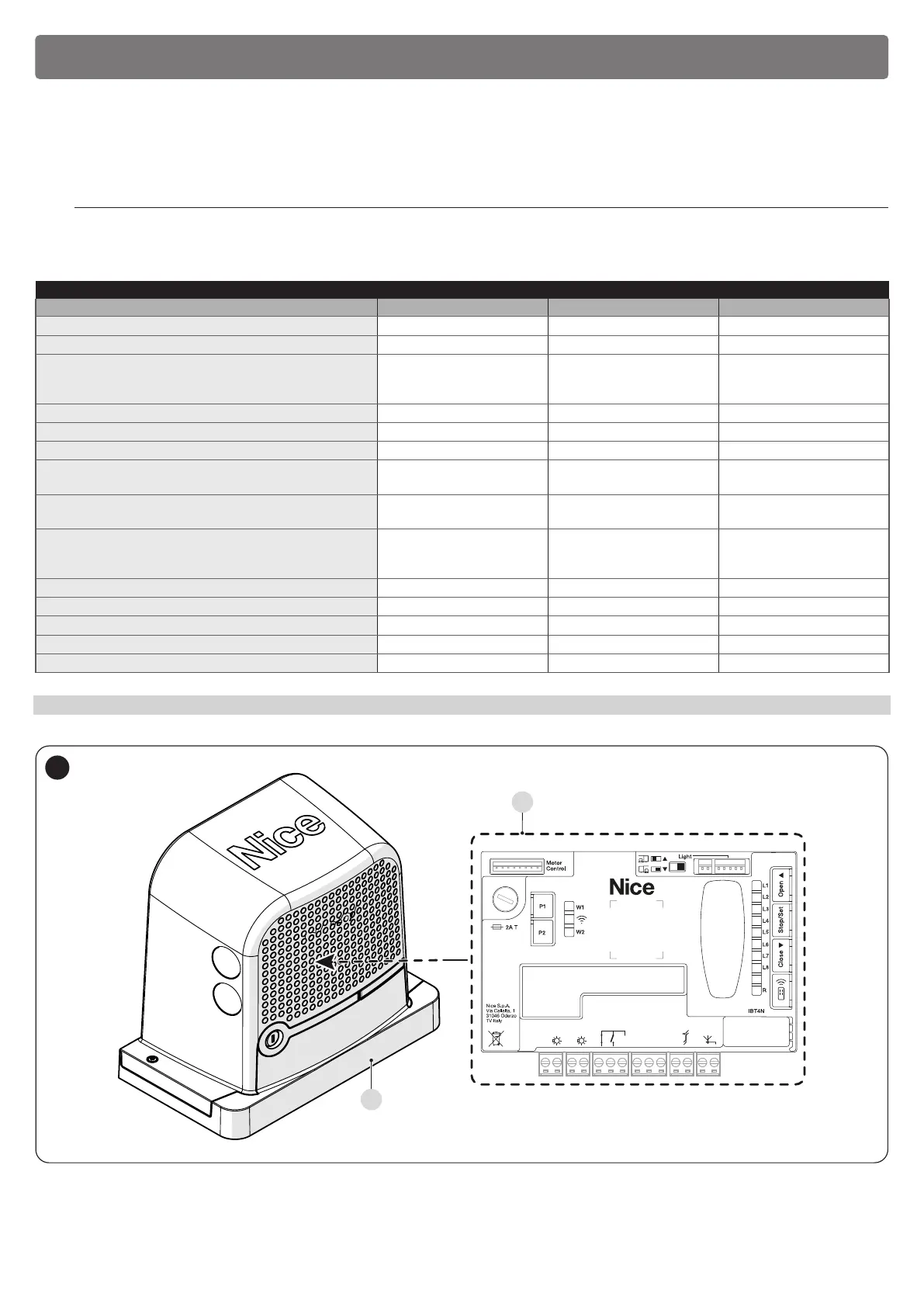

“Figure 1” shows the main parts making up ROBUS.
A
B
24V
+ -
12V OSE
Bluebus
Aerial
GND
Stop
Flash
OGI
SbS
1
A Gearmotor body
B Control unit
