10 – ENGLISH
a

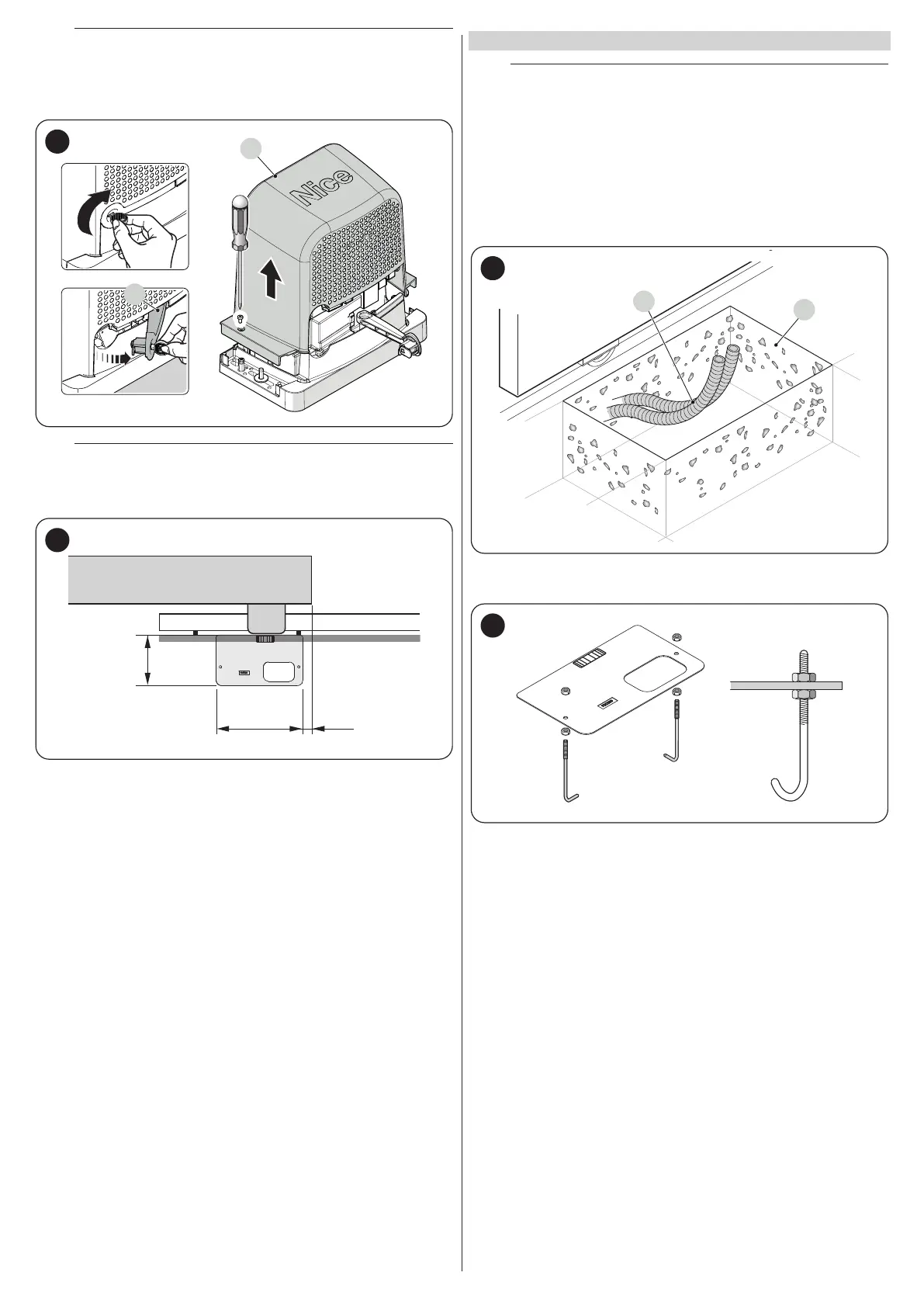

Before proceeding with the installation, open the stop
hook (A) and remove the cover (B) by loosening the x-
ing screws after manually unlocking the motor using the
spanner provided.
A
5
a
Before proceeding with the installation, verify the overall
dimensions of the gearmotor by referring to “Figure 2”
and the installation measurements in “Figure 6” .
195 mm
6
3.6 INSTALLING THE GEARMOTOR
a
Incorrect installation may cause serious physical injury to
the person working on the system or to its future users.
Before starting to assemble the automation, complete
the preliminary checks described in the “Pre-installation
checks” paragraph (page 6) and the “Product usage lim-
its” paragraph (page 6).
To install ROBUS:
1. dig the foundations (A) and arrange the pipes (B) for the wiring
(“Figure 7")
A
B
7
2. Secure the two anchor bolts to the foundation plate with one nut
above and one below the latter (“Figure 8")
8
