CT E300 AC Drive
42-02-2M01 A1 2-17
2
Motion 4000
CT E300 AC Drive
Introduction
Take the time to study the drive manual. It has very important startup and other information
that is beyond the scope of this manual. Refer to the E300 Closed Loop RFC-A Mode Setup
Guide for details on the setup and commissioning of the drive with an induction motor or the
E300 Closed Loop RFC-S Mode Setup Guide for details on the setup and commissioning of the
drive with a PM synchronous motor. For a detailed parameter listing and full descriptions, refer
to the Installation and System Design Guide.
Keypad Overview

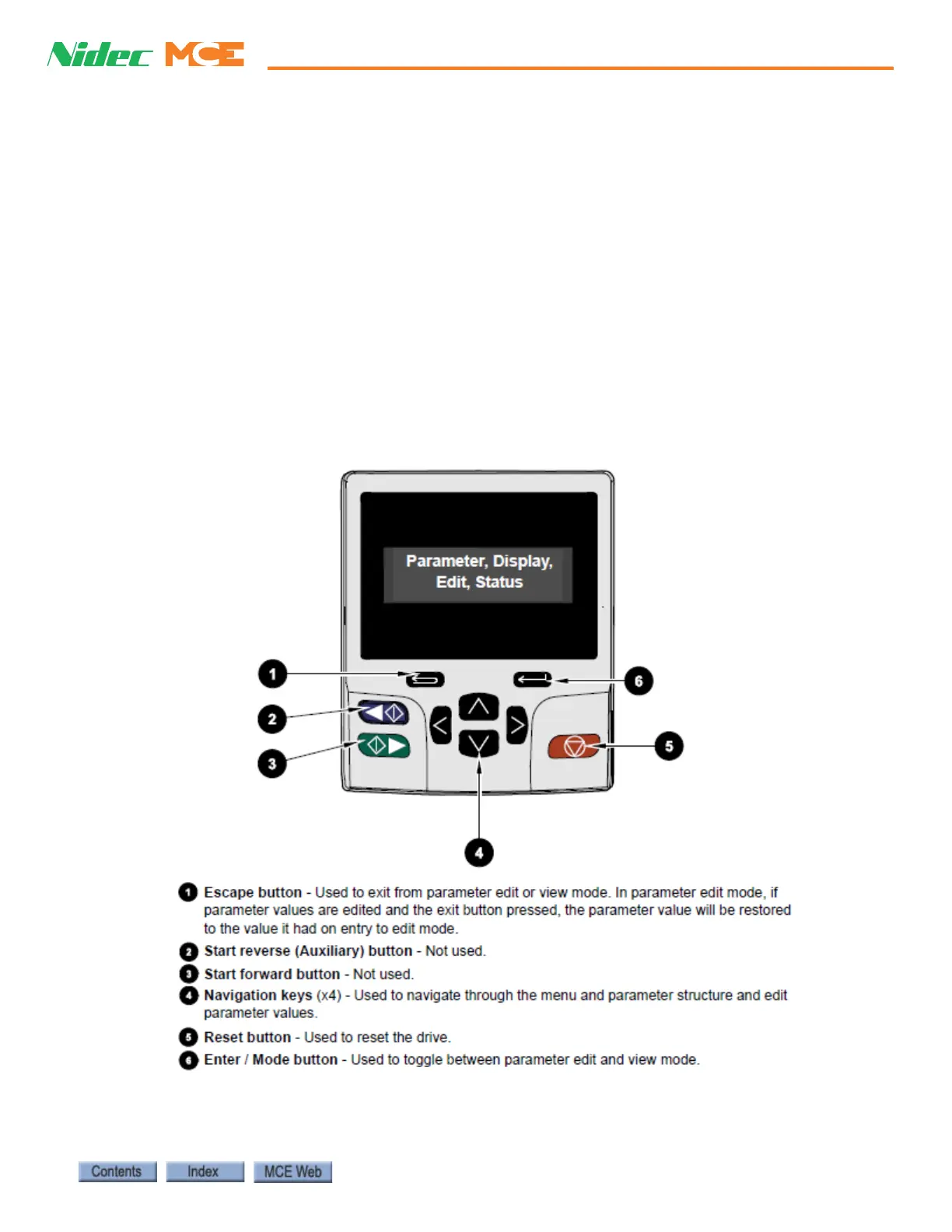

Figure 2.3 Keypad
To Next Page
