51
Control panel

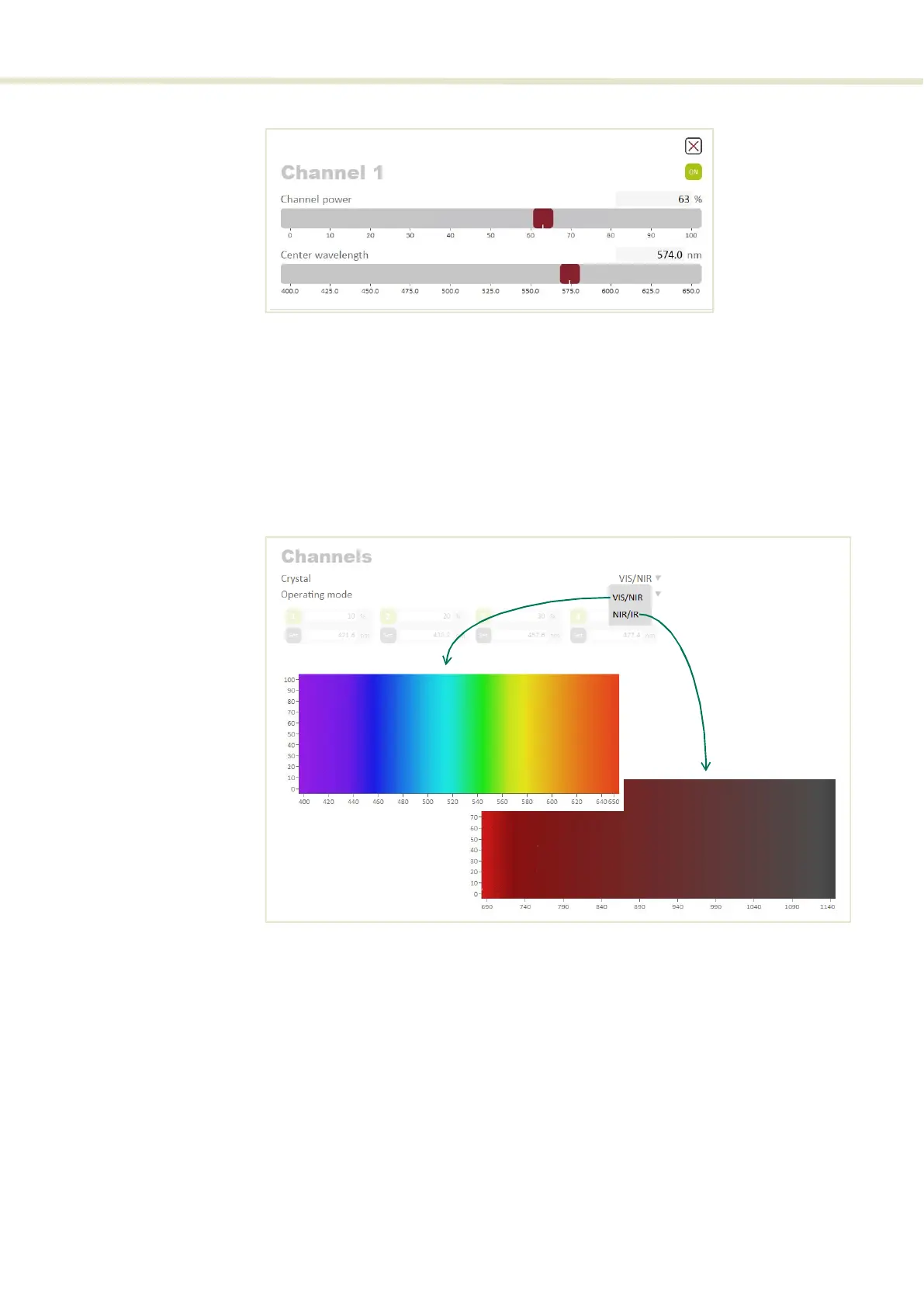

Figure 36 Set button sliders
Band view
The band view displays a visual representation of the range of light wavelengths
available for a crystal. The range of wavelengths displayed, depends on the
selected crystal. For example, when the output port for the VIR/NIS crystal is
selected, the band shown will range from 400 to 650 nm. If you select the NIR/IR
output port crystal, the band range changes to 690 nm to 1140 nm. The Y-axis of
the band view represents power in percentage. Within the band view, numbered
symbols appear for each wavelength (channel) set ON.
Figure 37 Band views per output channel (crystal)
When a channel is ON, it appears in the band view as shown in Figure 35. If all 8
channels are ON, 8 channels will appear in the band view as shown in Figure 38
and Figure 39.
Click the channel # toggle
to turn it ON, it’s icon
appears in the band view
