State and statistics data for each master clock are available to assist in the detection
of failures or unusual situations.
6.5.8.6 PTP Ordinary Slave Clock for Frequency
Traditionally, only clock frequency is required to ensure smooth transmission in a
synchronous network. The PTP ordinary clock with slave capability on the 7210 SAS
provides another option to reference a Stratum-1 traceable clock across a packet
switched network. The recovered clock can be referenced by the internal SSU and
distributed to all slots and ports.

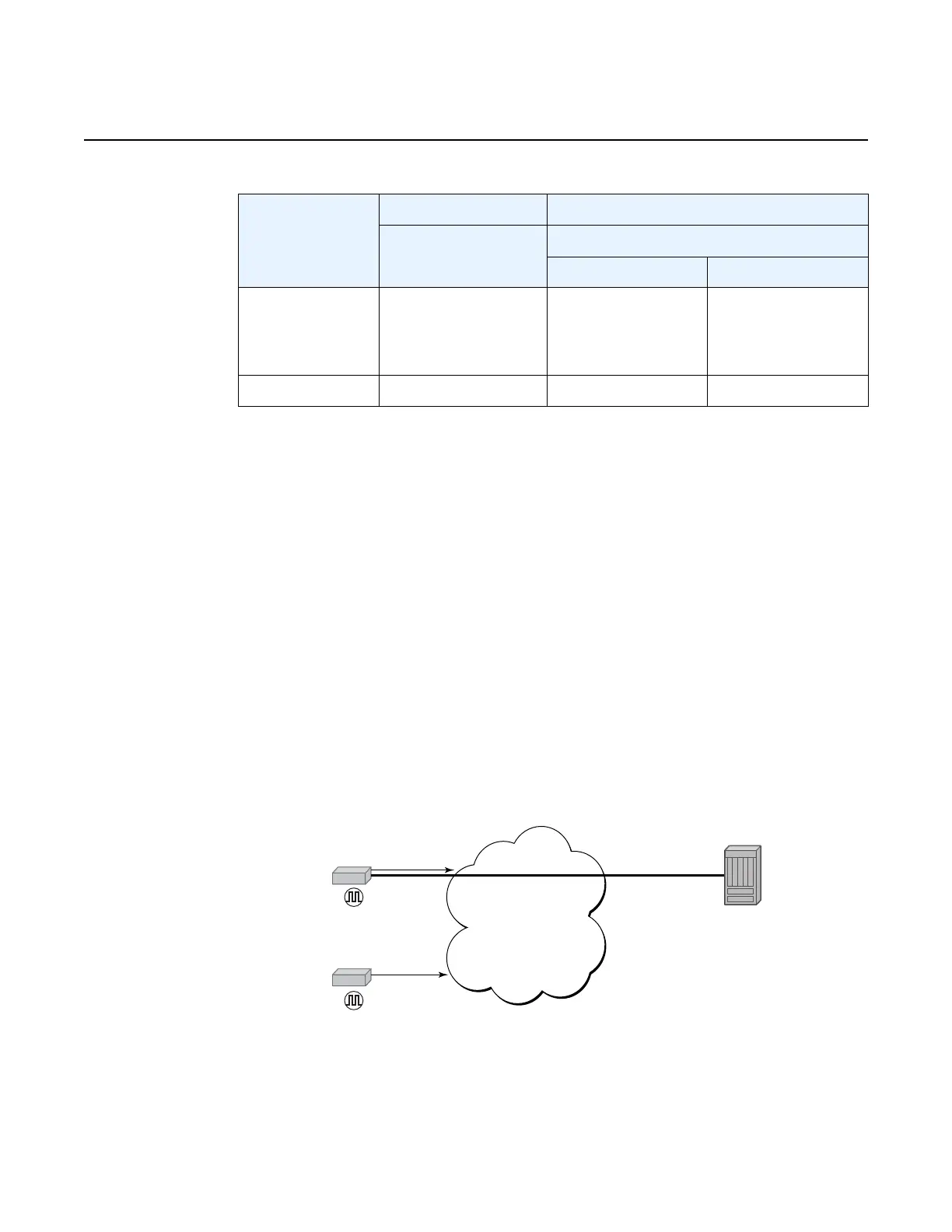

Figure 30 shows a PTP ordinary slave clock network configuration.
Figure 30 Slave Clock
Delay_Resp User-configurable
with an option to
configure 8/16/32/64
packets/second
8 packets/second 16 or 64 packets/
second
1
Duration 300 seconds 1 second 1000 seconds
Table 38 Support Message Rates for Slave and Master Clock States
Support
Message
Slave Clock Master Clock
Request Rate Grant Rate
Min Max
Packet
Network
1588v2
Grand
Master
PTP Slave
1588v2
Grand
Master
OSSG737
