MCTRL660 PRO Independent Controller
User Manual

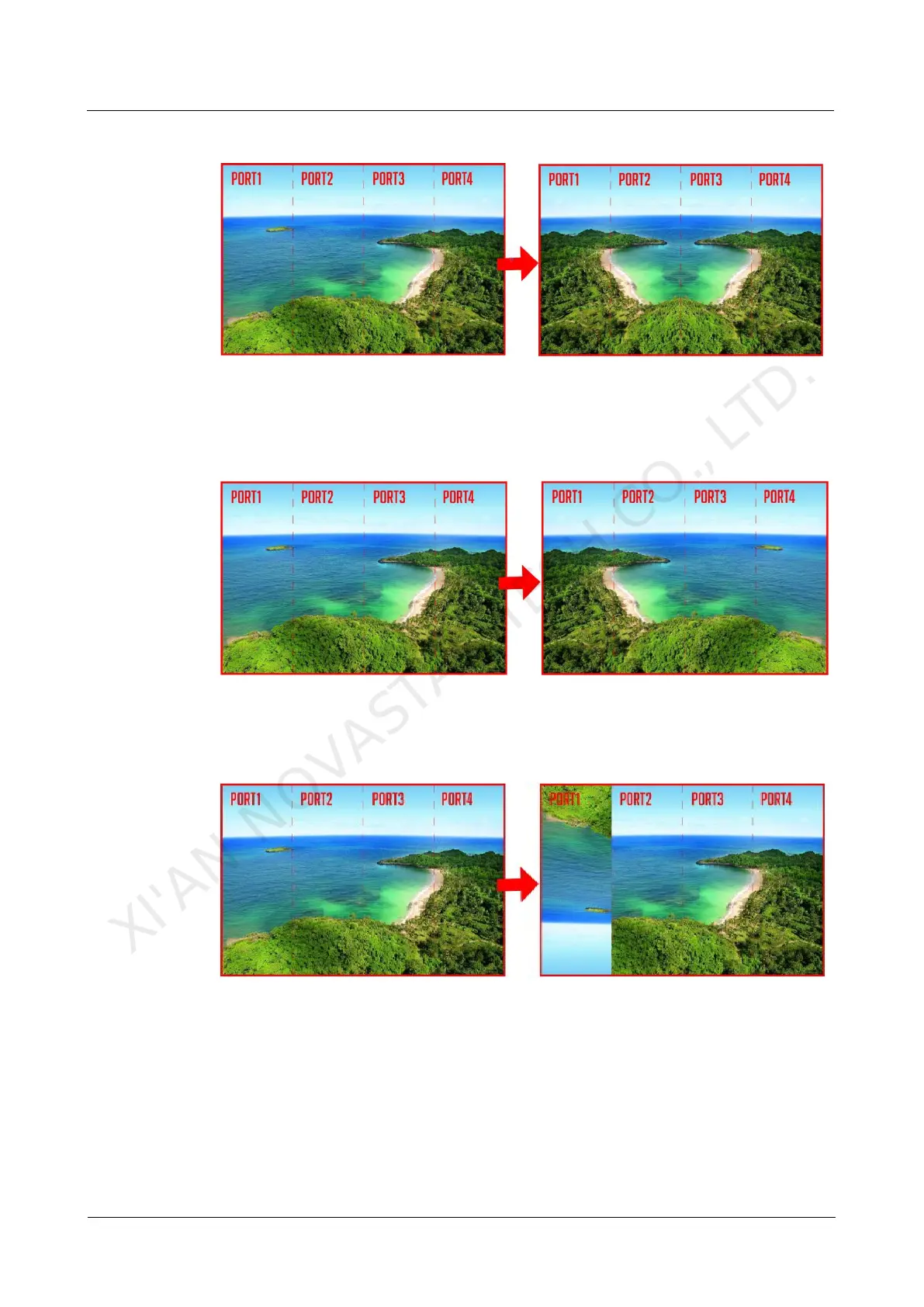

Figure 7-15 Left-right mirroring of images loaded by Ethernet port 1 and 2
As shown above, after you set the mirroring mode as left-right for Ethernet ports 1-2,
the entire image is mirrored horizontally, but only the areas of Ethernet ports 1-2
display the partial mirrored images.
Figure 7-16 Left-right mirroring of the entire image
As shown above, after you set the mirroring mode as left-right for Ethernet ports 1-4,
the entire image is mirrored horizontally.
Figure 7-17 Top-bottom mirroring of the image loaded by Ethernet port 1
As shown above, after you set the mirroring mode as top-bottom for Ethernet port 1,
the entire image is mirrored vertically, but only the Ethernet port 1 area displays the
partial mirrored image.
XI'AN NOVASTAR TECH CO., LTD.
