7.8.1 Mapping Function
When mapping function is enabled, each of the cabinets will display its cabinet No.
and the No. of the Ethernet port that loads the cabinet.
Note: Receiving cards used by the system must support mapping function.

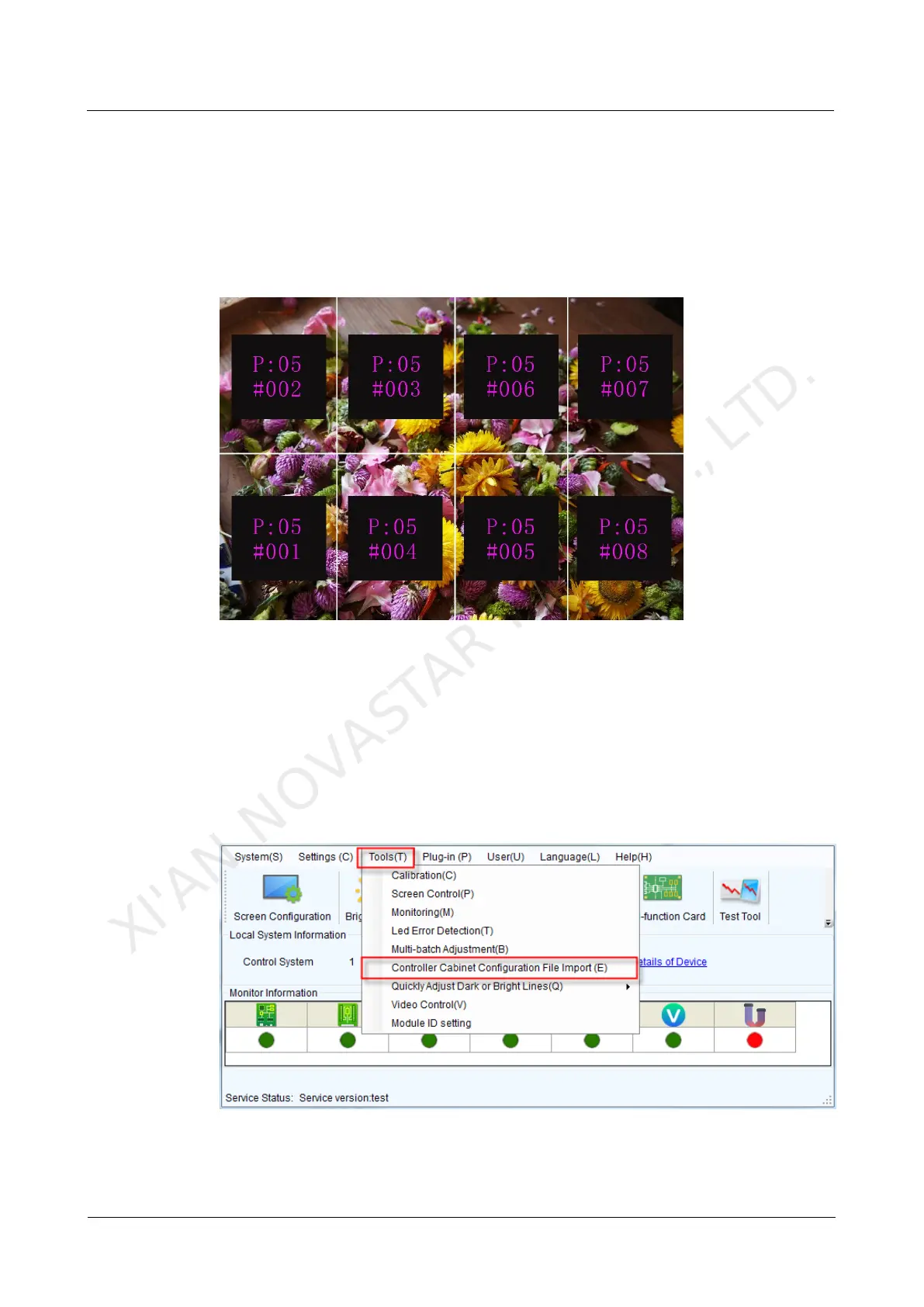

Figure 7-21 Illustration of mapping function
Example: P: 05 indicates the Ethernet port No. #001 indicates the cabinet No.
7.8.2 Loading RCFG Files
Before you begin: Save the cabinet configuration file (*.rcfgx or *.rcfg) to the local PC.
Note: Configuration files of irregular cabinets are not supported.
Step 1 Run NovaLCT and choose Tools > Controller Cabinet Configuration File Import.
Figure 7-22 Home page
Step 2 On the displayed page, select the currently used serial port or Ethernet port, click
Add Configuration File to select and add a cabinet configuration file.
