NovaStar MCTRL660 PRO - Hardware Structure; 5.1 Appearance

MCTRL660 PRO Independent Controller
User Manual
5 Hardware Structure
www.novastar.tech
7
5 Hardware Structure
Appearance

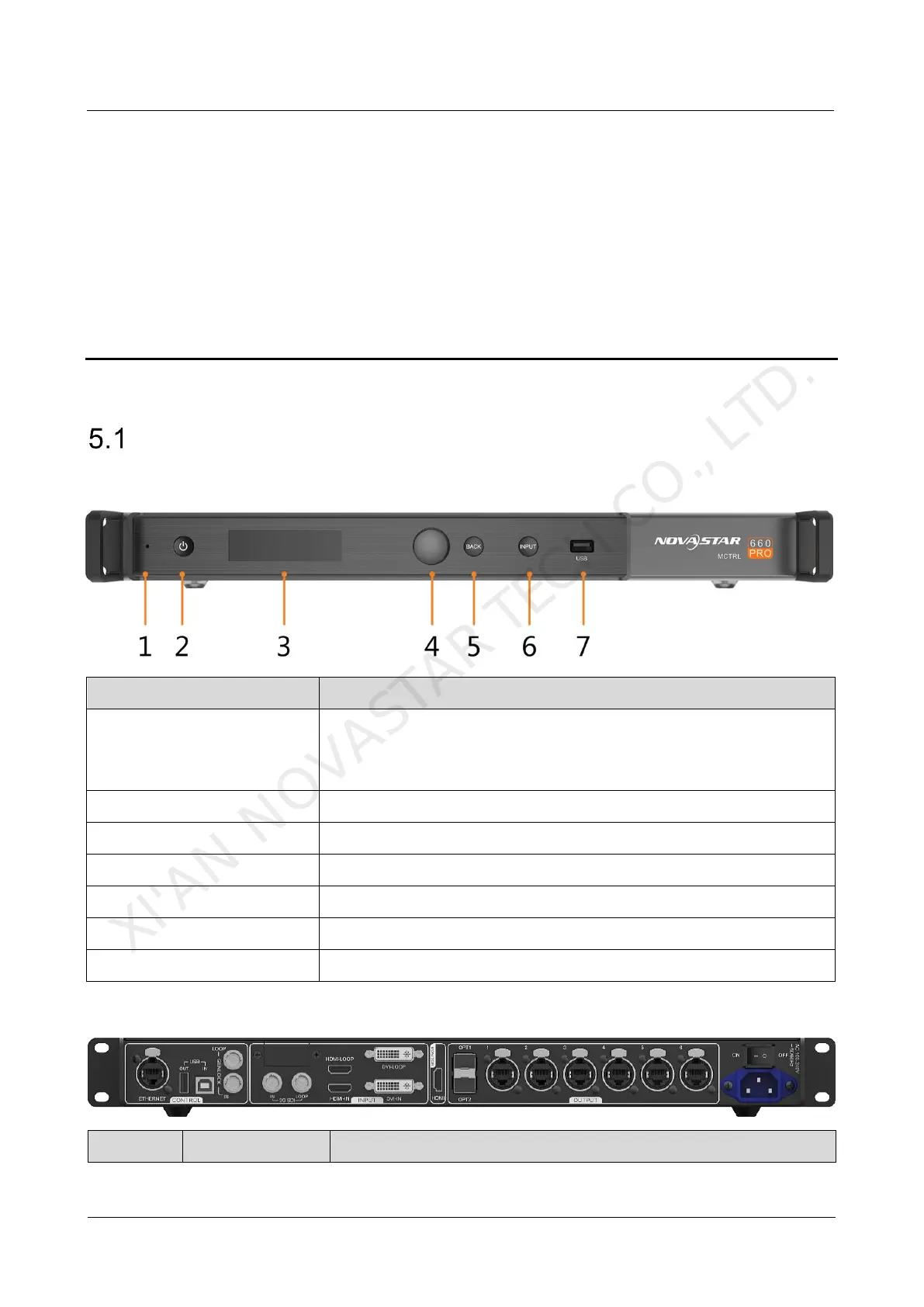

5.1.1 Front Panel
No.
Description
1
Operating indicator

Green: The device is running normally.

Red: The device is in standby mode.
2
Standby button
3
OLED operation screen
4
Function knob
5
BACK button: Press to go back to the previous menu.
6
INPUT button: Press to choose a video source.
7
USB port: Used to update firmware
5.1.2 Rear Panel
Connector
Connector Name
Description
