NuEclipse

Apr. 25, 2022 Page 11 of 57 Rev 1.02.019

ECLIPSE USER MANUAL

Running Eclipse

To run NuEclipse, double-click the eclipse.exe. Note that the .exe file and the related folders, such as

the OpenOCD folder, should stay in the same directory; otherwise, the application will not work properly.

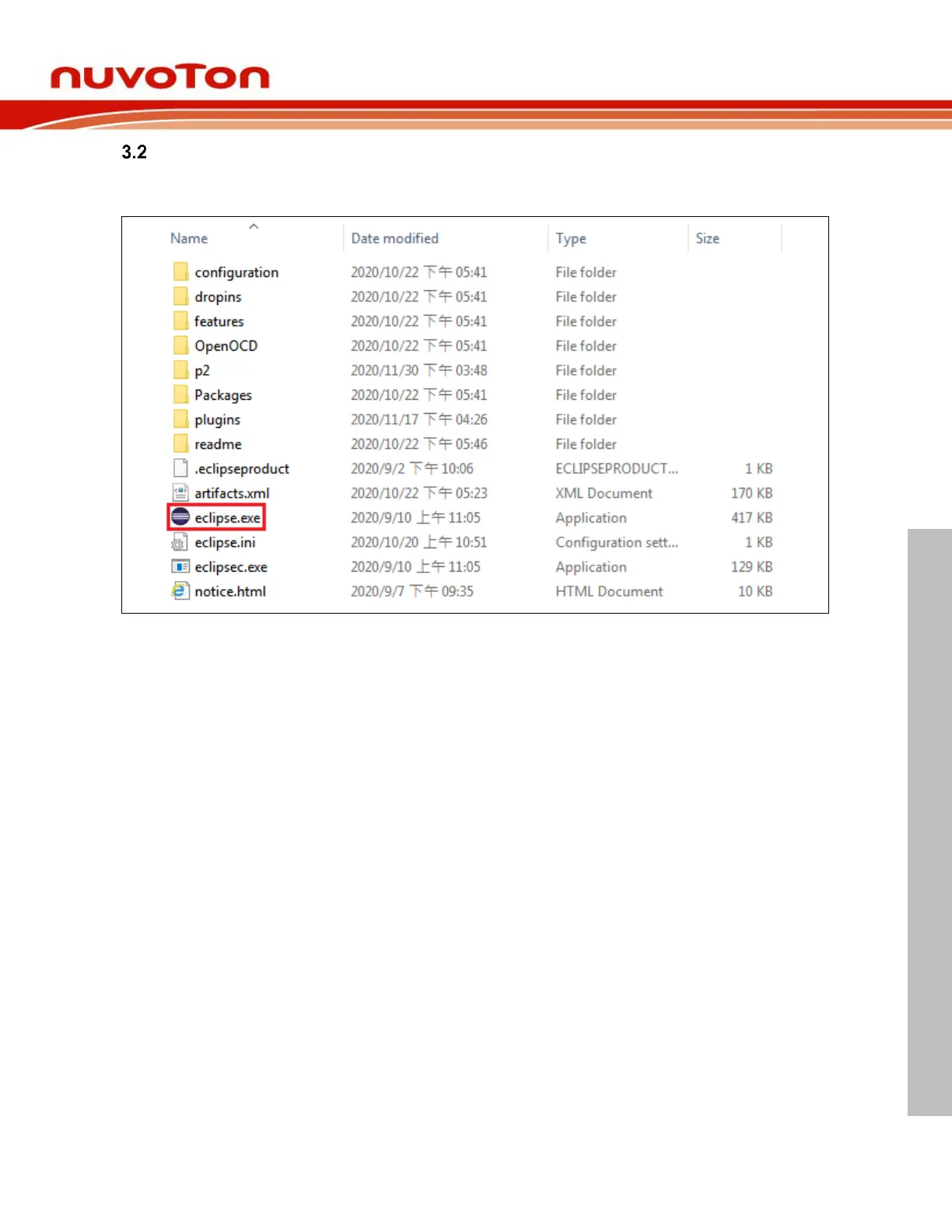

Figure 3-5 Eclipse.exe and Related Folders
