3. Configuring the settings for watchpoints. To stop execution when the watch expression is read,

select the Read checkbox. To stop execution when the watch expression is written to, select

the Write checkbox.

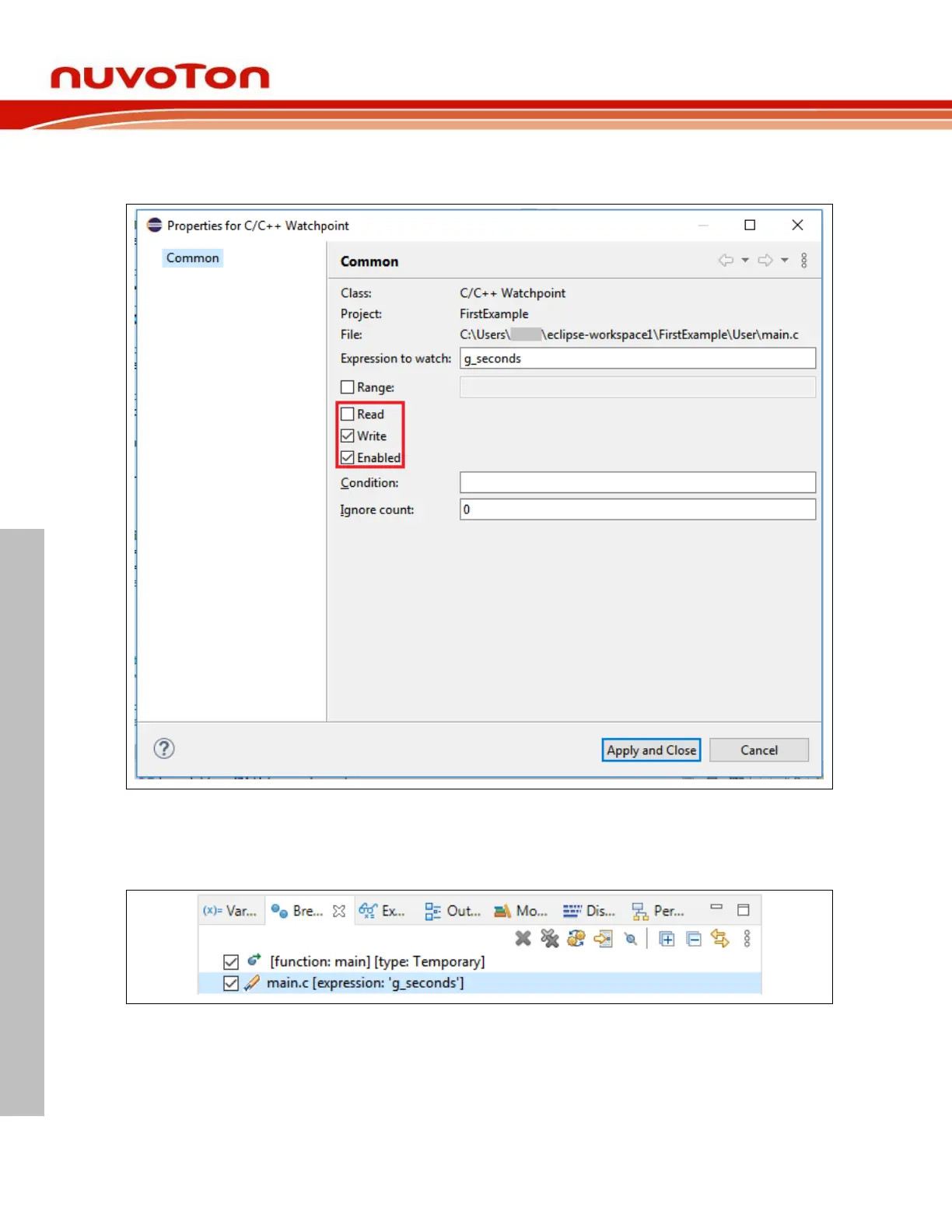

Figure 4-20 Properties for C/C++ Watchpoint

When the watchpoint is added, it appears in the Breakpoints view.

Figure 4-21 Added Watchpoint in the Breakpoints View
