Watchpoints

To add watchpoints on Eclipse, we need to do the following steps:

1. Selecting a globe variable, i.e. g_seconds, in the Outline view.

2. Right-clicking on the global variable and choosing Toggle Watchpoint.

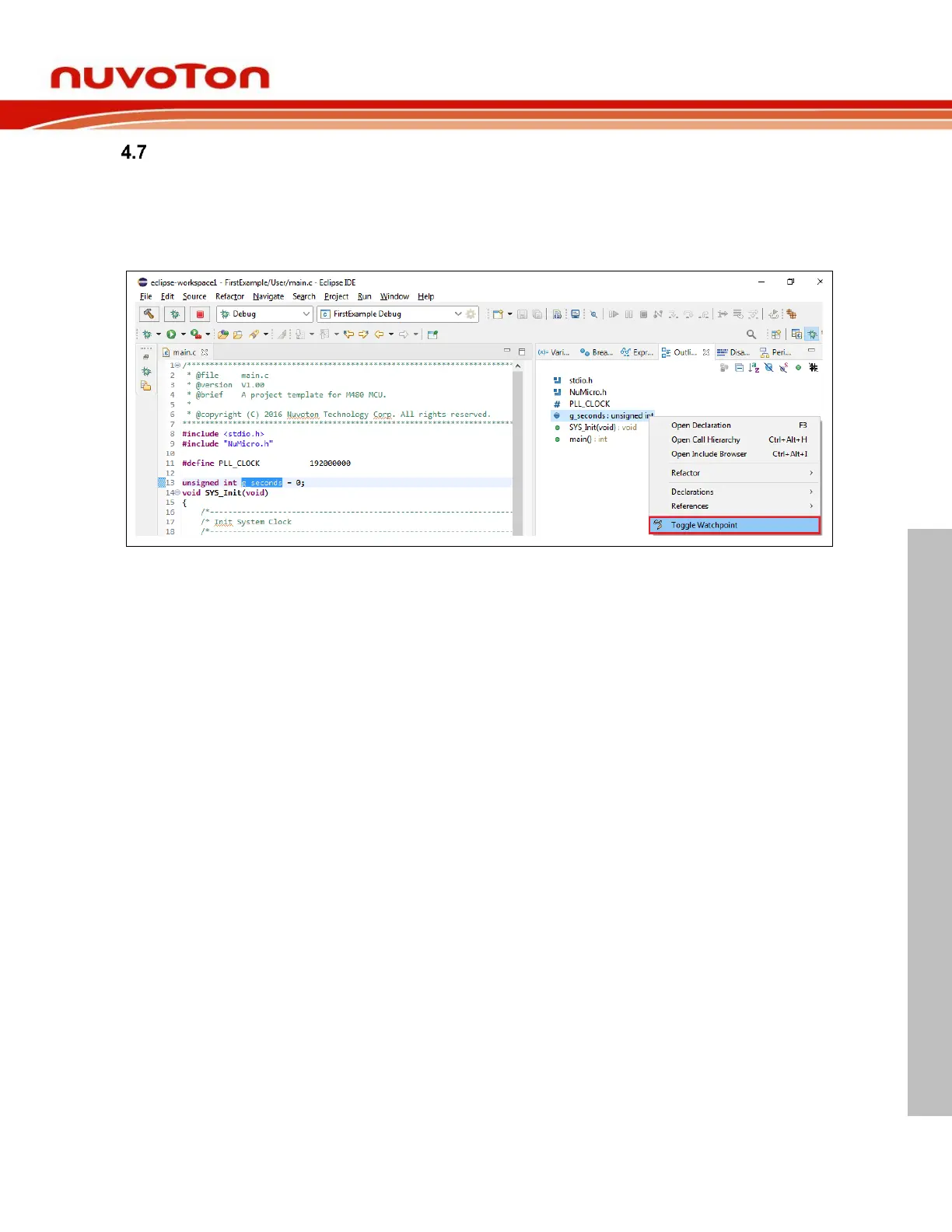

Figure 4-19 Toggle Watchpoint
